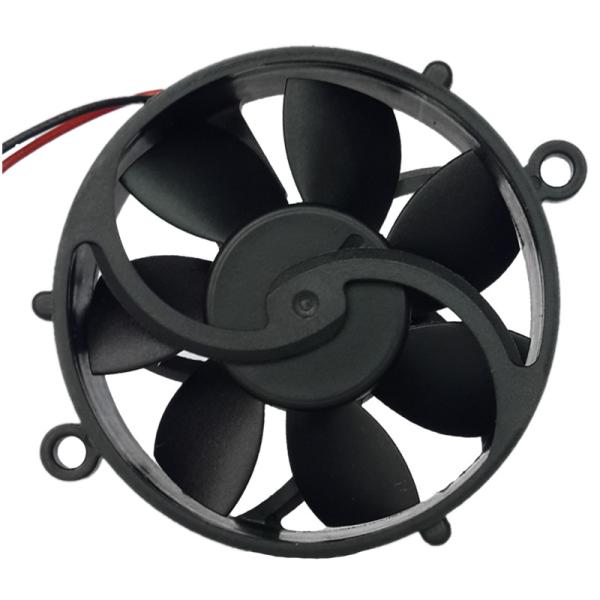

DC Micro Cooling CPU Cooling Fan 3V 5V Axially Grooved Bearing 4500-6200rpm Speed
DC Micro Cooling CPU Cooling Fan 3V 5V Axially Grooved Bearing 4500-6200rpm Speed
DC Micro Cooling CPU Cooling Fan 3V 5V Axially Grooved Bearing 4500-6200rpm Speed
DC Micro Cooling CPU Cooling Fan 3V 5V Axially Grooved Bearing 4500-6200rpm Speed
Specifications
Brand Name :
MX
Model Number :
MX3008ANH5
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box or we can pack according the customer's requirements
Voltage :
2.8V-5.5V
Bearing type :
Axially grooved bearing
Speed :
4500-6200rpm
Max air Flow :
2.60CFM
Description

30mm CPU Cooling Fan / DC Micro Cooling Fan 30 × 8mm / 3V 5V DC Micro fan

DC Micro Cooling Fan 30 × 8mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Description About Our Company :

Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates production , research , development and sales . It has 3000 flat plant and professional design and production team . At present , the company has production development department , Q & C department ,R & D department , the domestic sales department and overseas sales department .


1.: Specifications:

Bearing Type-------------Axially-grooved Bearing
Frame and Impeller--------L.C.P.(UL94V-0),IP57
Voltage-----------------DC 3.3V 5.0V
Temperature range-------- -10℃ to +80℃
Expected Life------------ 20000 hours
Insulation Resistance------10MEGA.Ω Min. at 500VDC(between frame and (+) terminal)
Dielectric Strength--------5mA Max. at 500VAC,60Hz,One Minute(between frame and (+) terminal)

2 .MECHANICAL

DimensionsL * W * H =30*30*8mm
Weight3.6 grams
Standard operating temperature range-10 ℃ ~ 85 ℃
Standard storage temperature20 ℃ ~ 45℃
Bearing systemHYDRAULIC Bearing


3.EXPECTED LIFE SPAN (MTBF)
At a standard operating condition of 10±5℃, 80±5%RH ambient

HYDRAULIC Bearing:20000 hrs , Continuous operating under 45℃ 65%RH

HYDRAULIC Bearing:10000 hrs , Intermittent operating under 85℃ 65%RH


4. RELIABILITY

ItemSpecificationTest Condition
1Locked Rotor TestFlameproof and damage freeRotor locked for 72 hrs with Rated Voltage
2Reverse Voltage Test ProtectionYesReverse with Rated Voltage
3Balance TestNo protruding beyond the circle within 10 seconds

The fan runs in a circle, scaled by
fan radius plus 10mm

4Drop TestAll specified characteristics remain unchangedDrop D.U.T.(The standard packing) from the test machine at 76cm below. Individual one angle,
5Vibration TestAll specified characteristics remain unchanged

Ambient temp.:25 ºC±5 ºC with Rated Voltage

Amplitude:0.4-2.5 mm

Acceleration:14.7 S/m2

Frequency:10HZ-60HZ

Sweeping period:1 min

10HZ-60HZ:30 seconds

60HZ-10HZ:30 seconds

Total:10 cycles

6High/Low Temperature CyclingAll specified characteristics remain unchanged

20 minutes slew rate +85 ºC (1 hr)

,–10 ºC (1 hr)

Total:36 cycles with Rated Voltage

7Low Temp. StorageAll specified characteristics remain unchangedTested under standard condition ；after 500hrs, 20 ºC storage, without power supply.
8High Temp. StorageAll specified characteristics remain unchangedTested under standard condition ；after 500hrs,45ºC storage, without power supply.
9Dielectric StrengthMax 1mA of leakage Current

Input 500V(AC) for 1 sec

between lead (+/-) and housing



5. ASSEMBLY DIAGRAM

DC Micro Cooling CPU Cooling Fan 3V 5V Axially Grooved Bearing 4500-6200rpm Speed


NOTE:
1. LEAD WIRE UL 1571 32AWG
RED WIRE --------- ( + )
BLACK WIRE --------- (—)


6. Performance curvers:

DC Micro Cooling CPU Cooling Fan 3V 5V Axially Grooved Bearing 4500-6200rpm Speed


Q1. Are you factory?

A1. Yes.welcome to visit our factory.


Q2. All products have a warranty?

All kinds of products at least 1 year warranty.


Q3. Can we design packaging?

A3. Yes.Default is regular packing,we can make customer's own packing.


Q4. Can we add our logo on products?

A4. Yes.


Q5. How to control the quanlity of products in your company.

A5: 100% total testing before each of fan leaves our factory.


Q6. can we customize product?

A6. Yes, OEM&ODM.


Any more information , please feel free to contact Helen --→
We will reply you within 2 hours . Thanks

Skype : helen860615
QQ : 304994675
Tel : 86 755 26070926
Mobile :0086-15818540201
