Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX9232AB ( S ) U1
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
us$2 / pcs to us$5.00 / pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600,000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
DC fan 24V, dc axial fan, dc brushless fan, mini fan, motor fan, CPU fan
Rate Voltage :
12V 24V 48V DC
Current :
0.6A
Speed :
4000RMP
Motor :
Impedance Protected And Reverse Polarity Protected
Max air flow :
45.73CFM
Weight :
78g
Frame and impeller material :
PBT
Description

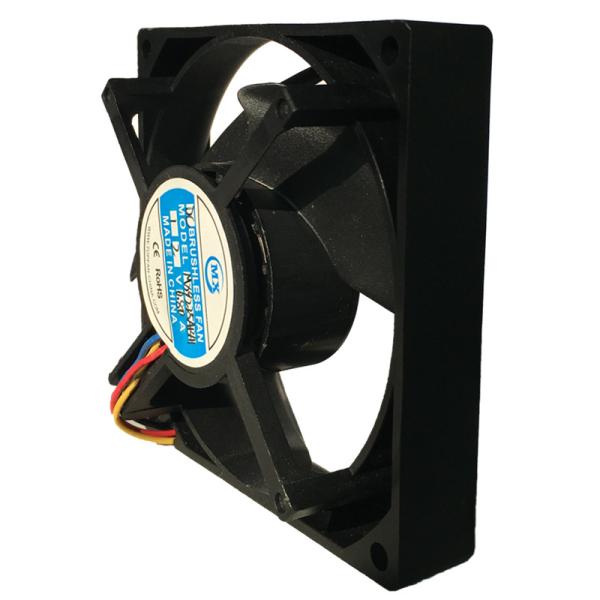

CE ROHS approval 92x92x32mm fan dc 5v 12v 24v from shenzhen topfan China

Waterproof axial dc motor 92mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Specifications:

A: ELECTRICAL

Standard operating condition is 25℃, 65%RH ambient, unless otherwise specified.

Item

 Specification Test Condition
1 Rated Voltage 12V ±10% DC power supply
2 Rated Current 0.18Amp (Typical)±10% DC power supply at Rated Voltage
4 Rated Power 2.16W At Rated Voltage.
5 Starting Voltage 6V (Max.) DC power supply
7 Speed 3350RPM ±10%

Measured at 5 minutes

after starting under 25±5℃, 65±5%RH ambient
8 Acoustical Noise 34 dB Measured at typical speed with an acoustic microphone 1 meter away from the fan intake in a test chamber with background noise level below 18dB(A)
9 Static Pressure 0.19 IN H2O

Refer to PERFORMANCE CHART ITEM 9 at zero airflow.
10 Air Flow 44.0CFM

Refer to PERFORMANCE CHART ITEM 9 at zero static Pressure.
11 Direction of rotation Counter-anticlockwise DC power supply, viewed from impeller.
12 Waterproof grade IP55

B. MATERIAL

Impeller
 PBT
Frame
 PBT
Bobbin
PBT
Lead Wire

+:Red RD:Yellow

–:Blue

24

UL1007 AWG26

28

C.MECHANICAL

Dimensions L * W * H =92*92*32mm
Weight 130 grams
Standard operating temperature range -40 ℃ ~ 70 ℃
Standard storage temperature -40 ℃ ~ 70 ℃
Bearing system Ball Bearing (NMB)

D.EXPECTED LIFE SPAN (MTBF)

At a standard operating condition of -40~10℃, 65%RH ambient

Ball Bearing:80000 hrs , Continuous operating under -40~10℃ 65 %RH ambient.

E. RELIABILITY

Item Specification Test Condition
1 Locked Rotor Test Flameproof and damage free Rotor locked for 72 hrs with Rated Voltage
2 Reverse Voltage Test Protection Yes Reverse with Rated Voltage
3 Balance Test No protruding beyond the circle within 10 seconds

The fan runs in a circle, scaled by

fan radius plus 10mm
4 Drop Test All specified characteristics remain unchanged Drop D.U.T.(The standard packing) from the test machine at 76cm below. Individual one angle,
5 Vibration Test All specified characteristics remain unchanged

Ambient temp.:-40~10 ºC with Rated Voltage

Amplitude:0.4-2.5 mm

Acceleration:14.7 S/m2

Frequency:10HZ-60HZ

Sweeping period:1 min

10HZ-60HZ:30 seconds

60HZ-10HZ:30 seconds

Total:10 cycles
6 High/Low Temperature Cycling All specified characteristics remain unchanged

20 minutes slew rate +10ºC (1 hr)

,–40 ºC (1 hr)

Total:36 cycles with Rated Voltage
7 Low Temp. Storage All specified characteristics remain unchanged Tested under standard condition ;after 500hrs, -40 ºC storage, without power supply.
8 High Temp. Storage All specified characteristics remain unchanged Tested under standard condition ;after 500hrs, 80 ºC storage, without power supply.
9 Dielectric Strength Max 1mA of leakage Current

Input 500V(AC) for 1 sec

between lead (+/-) and housing

F: ASSEMBLY DIAGRAM

NOTE:

1. LEAD WIRE UL1007 AWG#26

RED WIRE --------- ( + )

BLACK WIRE --------- (—)

BLUE WIRE --------- (F00)

YELLOW WIRE --------- (PWM)

2. Wire length:300mm+/-10MM

Why choose us ?

Quality assurance : All the products will go through lots of tests carefully before dispatch
Competitive production capacity and fast shipping
Manufactuer's price : Factory direct sale, most competitive price

Strength : Near 10 year experience in manufacturer cooling fans, more than 7 year experience on export. It covers 3000 square meters, with an annual output of 5 million sets of fans

Certification : All of product have passed CE and ROHS certification.

Customization : support MX , OEM , ODM and buyer label offered.

our service

Payment : Paypal, Western Union, T/T

Port of loading : Hongkong or Shenzhen Port
Discounts : offered based on order quantities
Delivery time : 3-15 days according to order quantities.
