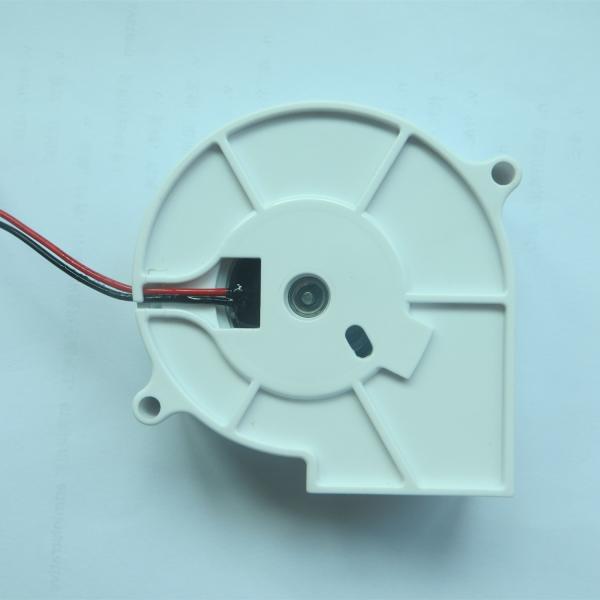

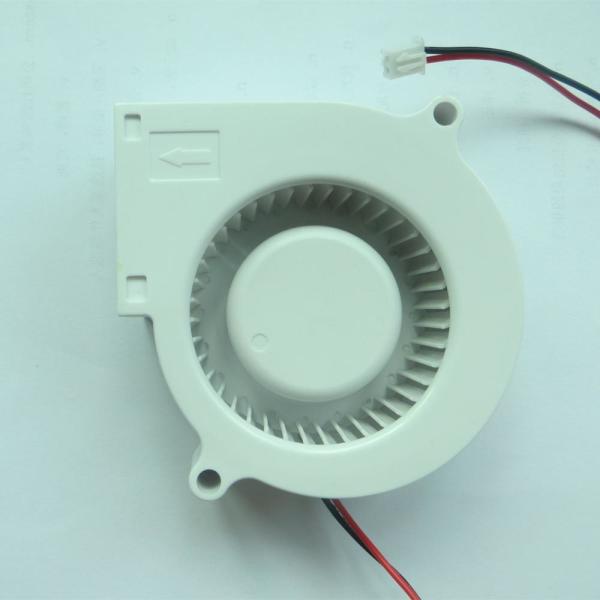

White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing
White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing
White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing
White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing
White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing
White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing
Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX7530GB H1
Certification :
CE, ROHS
Place of Origin :
Guangzhou , China
MOQ :
100pcs
Price :
us$1 / pcs to us$3.00 / pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600,000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
blower fan, centrifugal blower, centrifugal fan, dc fan12V 24V, dc motor fan, dc blower fan, blower motor, blower motor fan, dc brushless fan, dc 97*97*33mm,small fan, high flow fan, motor fan, air cleaner fan, air filter
Rate Voltage :
5v /12v / 24v / 48v f
Current :
1.4A
Speed :
4500RMP
Bearing type :
sleeve / ball bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Max air flow :
29.76CFM
Weight :
164g
Frame and impeller material :
PBT
Max static pressure :
11inch-h2o
Description

White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing


Specification of blower fan 75 x 75 x 30mm

Size 75x75x30mm White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing
Voltage 12v dc
Current 0.45A
Speed 4700rpm
Air pressure 15.3mmH2O
Max air flow rate 5.05CFM
Noise 48.5dB
Lead wire two wire with 2.54 connector, wire length 300mm
Fan protection waterproof ip58
Color white and black

Model Rated voltage (v) Operating Voltage Range(v) Current amp (Amp) Rated Input Power Watt Speed (rpm) Max air Flow(CFM) Max Static Pressure (Inch-H2o) Noise Leve (dB-A) Weight (g)
MX7530GBH1 12 7.0 to 13.8 0.6 7.2 4500 16.64 0.78 51 69
MX7530GBM1 12 7.0 to 13.8 0.4 4.8 4000 15.9 0.68 46 69
MX7530GBL1 12 7.0 to 13.8 0.31 3.72 3500 13.7 0.56 40 69
MX7530GBM2 24 14.0 to 27.6 0.22 5.28 4000 15.9 0.68 46 69
MX7530GBL2 24 14.0 to 27.6 0.13 3.12 3500 13.7 0.56 40 69

1.Frame: Plastic (UL94V-0)

2.Impeller: Plastic(UL94V-0)

3.Bearing type: Sleeve Bearingv & Dual Ball Bearing

4.Leadwire: UL1007AWG#24 or Equivalent (+): Red (-): Black

5.Motor: Impedence Protected and Reverse Polarity Protected

 White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing

Dimensions (unit:mm)

White Plastic DC Blower Fan 12V Waterproof Ip68 Low Noise Sleeve / Ball Bearing

Company information:

Shenzhen topfan is a professional fan design and processing enterprises. founded in 1996 in Shenzhen China, our company professionally engaged in the R & D and production of AC fans and DC fans for 11 years. Products support OEM, ODM and passed CE, RoHS, UL certificated , we have developed a full range of fans with sizes from 10mm to 1000mm. and good sellers both at home and abroad, This products are widely used in communication, industrial control, medical, home appliances, electronics, power supplies, automobiles enquipment.
