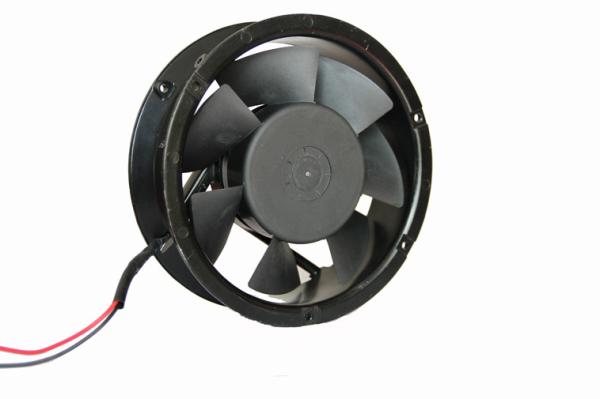

AC Equipment Industrial Cooling Fans 110V-120V / 220-240V Aluminum Alloy Frame

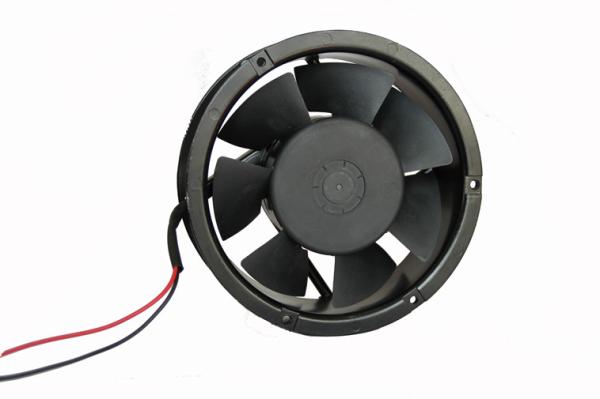

AC Equipment Industrial Cooling Fans 110V-120V / 220-240V Aluminum Alloy Frame
AC Equipment Industrial Cooling Fans 110V-120V / 220-240V Aluminum Alloy Frame
AC Equipment Industrial Cooling Fans 110V-120V / 220-240V Aluminum Alloy Frame
Specifications
Brand Name :
MX
Model Number :
MX17251ABH11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton box
Voltage :
110V-120V / 220V-240V
Power Consumption :
44/35W
Air Flow :
200/190CFM
Speed :
2500/2900RPM
Frame Material :
Aluminum Alloy
Impellear Material :
Plastic
Description

AC Equipment Cooling Fan 110V-120V / 220-240V Industrial Motor Fan 172mm × 51mm


Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.

Description:

  • 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0



Model:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX17251ABH11 B 110/120 50/60 0.44/0.46 30/37 2500/2100 200/187 5.4/6.0 0.55/0.5 53/48 920
MX17251ABH22 B 220/240 50/60 0.26/0.28 44/35 2500/2200 200/190 5.4/6.0 0.55/0.5 53/48 920
MX17251ABH38 B 380/400 50/60 0.15/0.13 38/35 2500/2200 200/190 5.4/6.0 0.55/0.5 53/48 920

Dimensions(Unit:mm)

AC Equipment Industrial Cooling Fans 110V-120V / 220-240V Aluminum Alloy Frame

Fan Performance Curve:

AC Equipment Industrial Cooling Fans 110V-120V / 220-240V Aluminum Alloy Frame

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Product picture:

AC Equipment Industrial Cooling Fans 110V-120V / 220-240V Aluminum Alloy Frame
