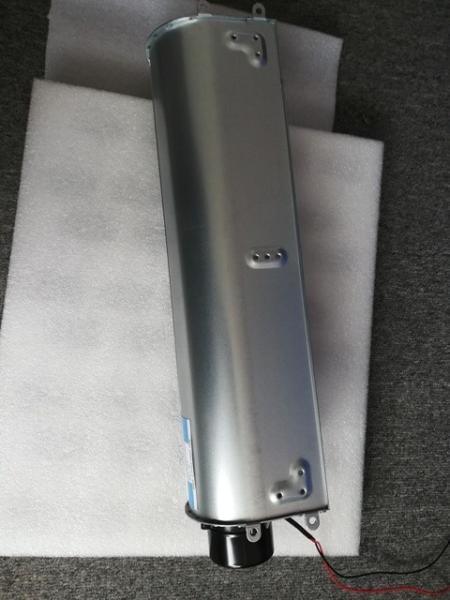

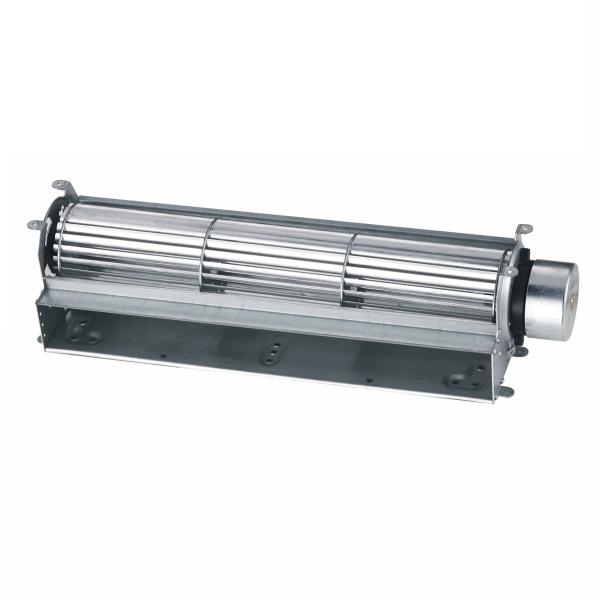

Heat Extractor DC Cross Flow Blower Fan Tangential / Air Conditioner Type
Heat Extractor DC Cross Flow Blower Fan Tangential / Air Conditioner Type
Heat Extractor DC Cross Flow Blower Fan Tangential / Air Conditioner Type
Heat Extractor DC Cross Flow Blower Fan Tangential / Air Conditioner Type
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX60360CUM1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$8/pcs to us$15.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Voltage :
12V , 24V
Diameter :
50mm
Length :
360MM
Bearing type :
Ball Bearing
Speed :
1400rpm
Air flow :
149cfm
Power :
7.8W
Input Current :
0.65A
Description

Equipment Radiator Cooling Fan / Tangential Cross Flow Fan With FG 50 x 350MM


1. Purpose:

It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..

2. Expeceed Life:

Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE
& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1 RATED VOLTAGE VOLTS V 12V DC
2 OPERATION VOLTAGE VOLTS V 8.4VDC-13.2VDC
3 FREQUENCY Hz Hz /
4 INPUT CURRENT AMP A 0.65A±10% AT RATED VOLTAGE
5 INPUT POWER WATTS W 7.8W ±10% AT RATED VOLTAGE
6 ROTATION SPEED RPM RPM 1400±10%
7 ACOUSTICAL NOISE(AVG) dB(A) dB(A) ≤42 Db

DETAILS SEE

ATTACHED PAGE.
8 MAX .AIR-FLOW CFM Q


149CFM

TWO-CHAMBER

METHODS
DEAILS SEE

ATTACHED PAGE.
9 MAX . AIR-PRESSURE mmH2O P


2.5mmAq

TWO-CHAMBER

METHODS
DEAILS SEE

ATTACHED PAGE.
10

INSULATION
RESISTANCE

MEG.
OHM

 MΩ ＞20MΩ

BETWEEN FRAME

AND TERMINAL
11 DIELECTRIC STRENGTH

5Ma MAX.
AT 500V AC 60HZ
FOR 1 MINUTE

BETWEEN FRAME

AND TERMINAL.
12 ROTARY DIRECTION C W
13 INSULATION CLASS CLASS B
14 LIFE EXPECTANCY 30000 Hours at 25℃/65%RH




4. MECHANICAL

4.1.BEARING SYSTEM ------------------3 BALL BEARING.
4.2.LEAD WIRE ---------------- 1007 AWG# 22,80℃,300V, L≈390MM
+POSITIVE-------------RED
NEGATIVE-------------BLACK
FG -------------YELLOW

5. ENVIRONMENTAL:

5-1.OPERATING TEMPERATURE----------------------- -10 TO+60℃(CLASS E)
5-2.STORAGE TEMPERATURE ------------------------- -20 TO+75℃
5-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

5. Specifications:

Model Size(mm) Rated voltage (v) Rated Current (A) Speed (rpm)

Max Static Pressure

(mmAq)

 Air Flow (m3/mim) Air Flow (CFM) Noise Leve (dB-A)

Weight

(g)
A B C
MX60120CUM1 120 130 185 12 0.65 2500 6.3 2 71 49 520
MX60120CUM2 24 0.4
MX60180CUM1 180 190 245 12 0.95 2200 5.9 2.8 99 50 610
MX60180CUM2 24 0.5
MX60240CUM1 240 250 305 12 0.5 1600 2.8 2.9 102 42 690
MX60240CUM2 24 0.25
MX60300CUM1 300 310 365 12 0.6 1500 2.6 3.5 124 43 780
MX60300CUM2 24 0.3
MX60360CUM1 360 370 425 12 0.65 1400 2.5 4.2 149 42 860
MX60360CUM2 24 0.35


6: Dimensions (Unit:mm)

Heat Extractor DC Cross Flow Blower Fan Tangential / Air Conditioner Type

Fan Performance Curve:

Heat Extractor DC Cross Flow Blower Fan Tangential / Air Conditioner Type

7. ACOUSTICAL NOISE:
7-1. MEASUREMENT SET-UP

Heat Extractor DC Cross Flow Blower Fan Tangential / Air Conditioner Type

FAN MICROPHONE
7-2. MEASUREMENT PERFORMED IN ANECHOIC TEST CHAMBER UNDER FREE AIR CONDITION.
7-3. CHAMBER BACKGROUND NOISE 17dB MAX .

Any more information , please feel free to contact Mona ——→

We will reply you within 2 hours . Thanks

Skype : helen860615

QQ : 304994675

Tel : 86 755 26070926

Mobile :0086-15818540201
