Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan
Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan
Specifications
Brand Name :
MX
Model Number :
MX30290CFNM1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD15 - 18 / PCS
Payment Terms :
T / T , Western Union
Supply Ability :
100000PCS / MONTH
Delivery Time :
10 - 15DAYS
Packaging Details :
carton box
Size :
30mm X 290mm
Bearing :
ball bearing & sleeve bearing
Speed :
2600rpm
Motor type :
DC brushless type
Certifications :
CE / ROHS
Material :
Iron frame and impellers
Voltage :
12V - 24V
Description

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

1 Product Desription

Product size 30mm X 290mm
Frame : Aluminum Alloy
Impeller : Iron
Motor protection : Impedance protect

ENVIRONMENTAL

OPERATING TEMPERATURE ----------------------- - 20 TO + 50 ℃ ( CLASS E )

STORAGE TEMPERATURE ------------------------- - 30 TO + 75 ℃

OPERATING HOMIDITY ----------------------------------- RH20 % - 80 %

Working temperature :
Ball bearing : - 30 ℃ ~ 75 ℃
Sleeve bearing : - 10 ℃ ~ 70 ℃

Net Weight : 900g

2 . Features

  • Compact
  • Maintenance-fee
  • Easy to mount
  • Low noise level
  • Little vibration
  • Reliable movement

3 . Application

30mm X 30mm X 290mm cross flow fan is mainly used for ground control , equipment , electronic equipment , medical equipment , computers , power supplies , welding machines , packaging , printing equipment , satellite communications , CNC , machinery and office automation products such as ventilation and cooling purposes .

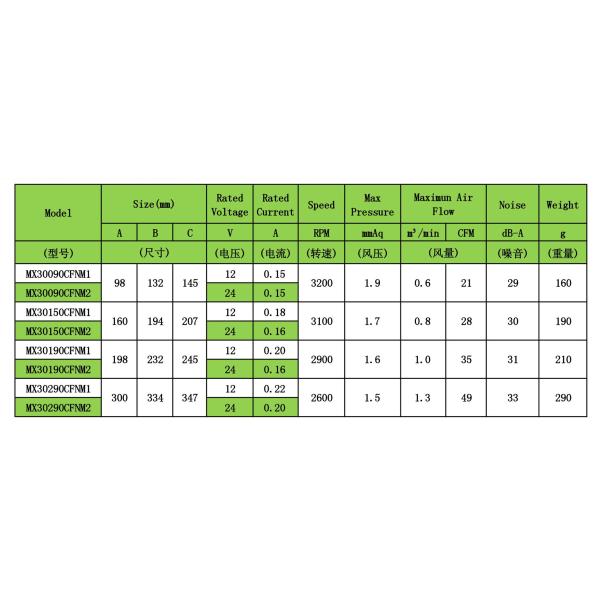

4 . Performance sheet

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

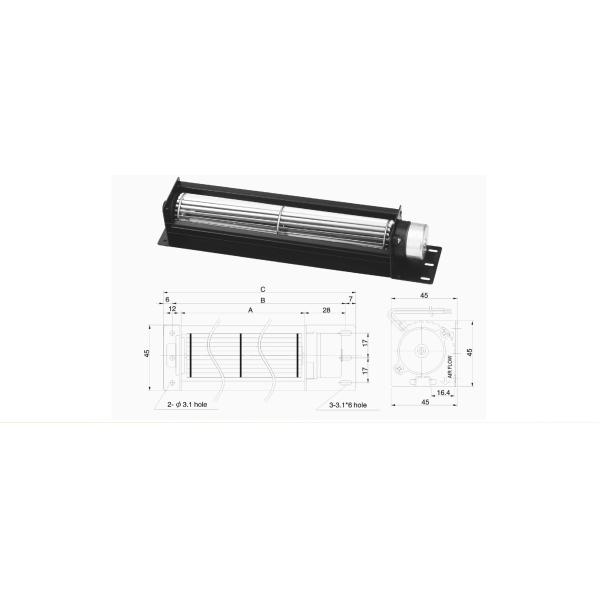

5 . Dimensions

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

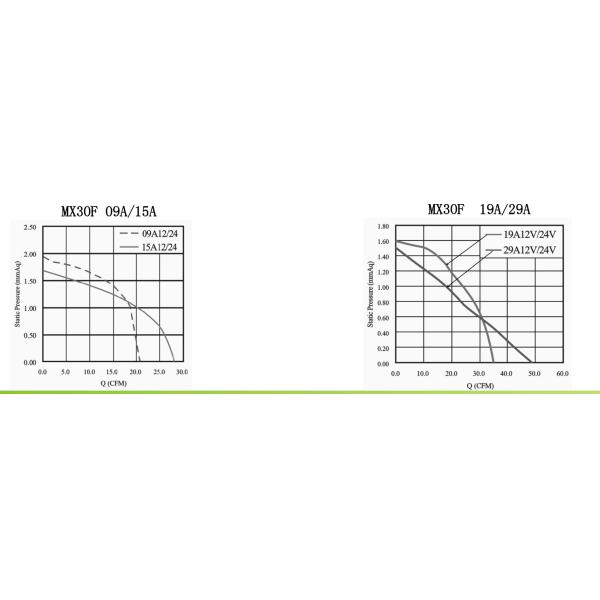

6 . Performance Curve

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

i ) If you want another rpm or voltage or special functionm please contact with us directly .

ii ) Products have a detail in the approval sheet .

iii ) Specifications are subject to change without notice .

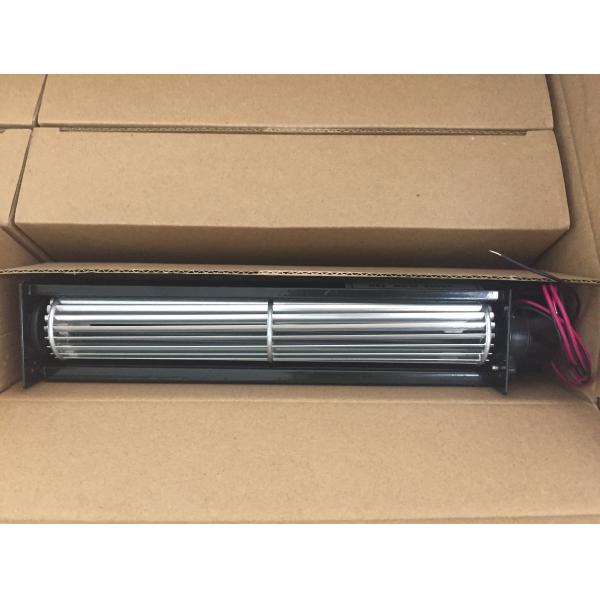

7 . Package

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling FanCompact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

8 . Application

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

9 . Factory

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

Compact Dc12v - 24v Equipment Cooling Fans Ce Ul Rohs / Elevator Tangential Cooling Fan

We offer 30 , 000 hours warranty for sleeve bearing fans , 50 , 000 hours warranty for ball bearing fans .

We can also provide fans with longer use times

Any more information,pls feel free to contact me !

Thanks very much !
