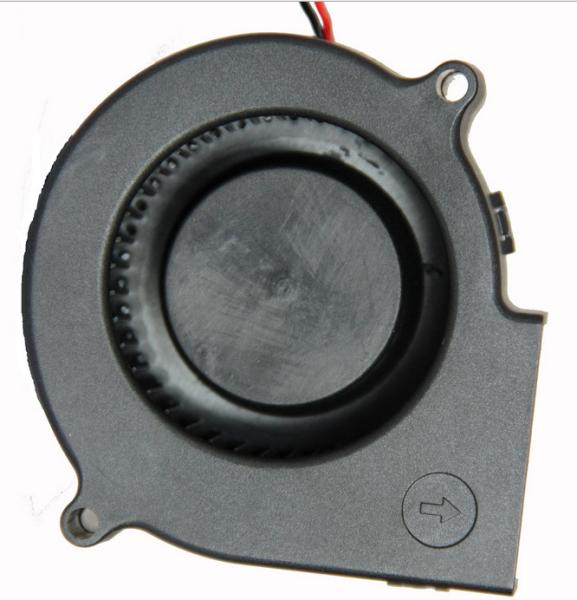

4 Inch 12V Dc Blower Fan Motor Cooling For Cabinet Machine , 97mm X 97mm X33mm

Basic description :
● Size--------------------------97mm x 51mm x 15mm, various Size all can be satified.
● Speed--------- --------------High speed , Middle speed, Low speed
● Material------- --------------Plastic ( 94V - 0 ) , PBT
● Voltage----------------------5V 12V 24V DC
● Bearing type----------------Ball bearing or Sleeve bearing
● Expected life----------------Ball bearing 50000hours , Sleeve bearing 30000hours (40C )
● Port settings----------------Terminal or Lead wire
● Function---------------------Waterproof, explosion - proof , high temperature, dustproof and anti - corrosionare all can be satisfied.
Function range--------------FG IP58
●Operating Temperature--- -10℃ ~ +70℃
● Storage Temperature----- -40℃ ~ +70℃
● Non Condensing Environment

Important Note :
Rated Current : Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed : Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage : The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard : Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.

Applications :

• Air conditioner / air cleaner
• Ventilation Equipment & System
• Heating Equipment & System
• Air Conditioner
• Refrigeration equipment
• MDBS ( Mobile Data Base Station )
• Telecom power supply station
• industrial production equipment
• medical equipment
• home appliances
• and etc.

Specification :

Dimension :


Fan performance curse :

Computer introduction :
Shenzhen Topfan-China Development Technology Co., Ltd, and founded in 1996 in Shenzhen China, It's a professional manufacturer on dc ac brushless fans . Products support OEM, ODM and passed CE, RoHS certificated and good sellers both at home and abroad, including Europe, North America, Asia ( Korea and India ) etc. The products, including axial fans, cross flow fans, blower fans, being widely used in the information technology, network communications as well as industrial equipment, medical equipment, home appliances and others.
