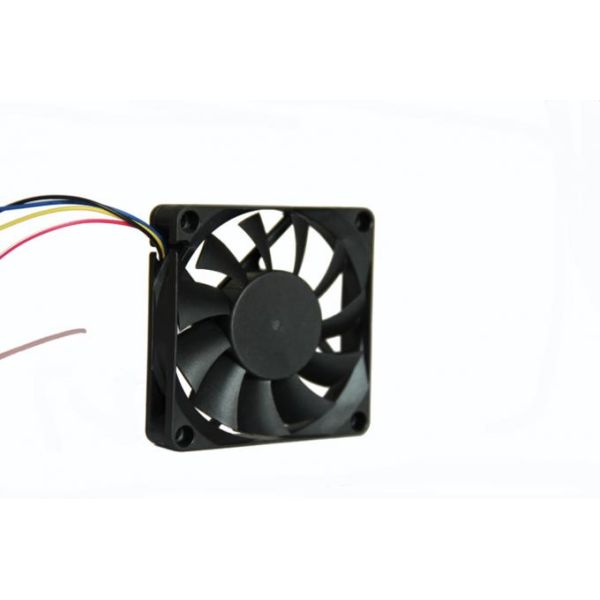

USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed
USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed
USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed
USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed
Specifications
Brand Name :
MX
Model Number :
MX7015AB(S)U1
Certification :
CE / ROHS / UL / SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5 / pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T / PAYPAL
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
Carton
Max Air Flow :
34.95CFM
Speed :
4500rpm
Color :
Black
Voltage :
12V / 24V
Function Range :
FG RD PWM IP58 IP68
Bearing Type :
Ball Bearing / Sleeve Bearing
Description

USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x 15mm High Speed

Brushless axial dc fan 60mm , low noise and long life expectancy , are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .


Description:

● Brushless DC Fan , Axial DC Fan , DC Motor Fan , CPU Fan , Computer case fan , laptop fan , PWM Fan , FG cooling fan , LED Digital signage
● Various Size
● High speed , Middle speed , Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 12V DC 24V DC or 48V DC
● Ball bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied .


Important Note:

Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage .
Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage: The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard: Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm . After test , connect the fan to the power , the fan still in normal operation .


A : Specifications :

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX7015AB(S)U1 B.S 12 7.0-13.8 0.45 5.40 4500 34.95 0.99 0.21 51.98 41.00 48.00
MX7015AB(S)H1 B.S 12 7.0-13.8 0.40 4.80 4000 31.28 0.89 0.16 40.99 36.00 48.00
MX7015AB(S)M1 B.S 12 7.0-13.8 0.30 3.60 3500 28.48 0.81 0.14 34.72 33.00 48.00
MX7015AB(S)L1 B.S 12 7.0-13.8 0.20 2.40 3000 23.95 0.68 0.10 25.20 28.00 48.00
MX7015AB(S)D1 B.S 12 7.0-13.8 0.15 1.80 2500 17.45 0.49 0.05 13.53 26.00 48.00
MX7015AB(S)U2 B.S 24 14.0-27.6 0.30 7.20 4500 34.95 0.99 0.21 51.98 41.00 48.00
MX7015AB(S)H2 B.S 24 14.0-27.6 0.28 6.72 4000 31.28 0.89 0.16 40.99 36.00 48.00
MX7015AB(S)M2 B.S 24 14.0-27.6 0.25 6.00 3500 28.48 0.81 0.14 34.72 33.00 48.00
MX7015AB(S)L2 B.S 24 14.0-27.6 0.20 4.80 3000 23.95 0.68 0.10 25.20 28.00 48.00
MX7015AB(S)D2 B.S 24 14.0-27.6 0.15 3.60 2500 17.45 0.49 0.05 13.53 26.00 48.00

B : Electrical Specification :

ITEM Specification. Condition
Locked Rotor Protection □ Safety Condition

■		 Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec
Polarity Protection ■ Open circuit when Vcc&GND are exchanged
□ Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
Insulation Resistance 10MΩ Between unshielded wire and frame at 500VDC/min
Dielectric Strength 5mA Max/ Measured b/w lead wire ( + ) and frame at 500VAC/min
Special Function □ Soft Start
5s (0 to Max speed)		 □ Current Limiter



C. (Main Materials, Parts Specification)

Bearing ■( Dual Ball Bearing ) □ ( Sleeve Bearing )
Frame ■ PBT of UL94V-0. □ Die-cast Aluminum Alloy
Impeller ■ PBT of UL94V-0. □ Steel
Bobbin PBT of UL94V-0.
Lead Wire ■ Red( + ) ■ Black(-) □ Blue ( PWM ) UL 1571 28#
□ Yellow ( FG ) □ White(RD) 2 wires 100±10mm
Connector No
Tube No


Dimensions (Unit:mm)
USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High SpeedUSB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed
USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed
USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed

Product Application

USB PWM Axial CPU Computer Case Cooling Fans 70mm x 70mm x15mm High Speed
