DC Axial Motor pc cooling fans 80mm x 80mm x15mm 5V / 12V / 24V Super Silence
DC Axial Motor pc cooling fans 80mm x 80mm x15mm 5V / 12V / 24V Super Silence
Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX8015ABH1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
200pcs
Price :
USD + 1 / 5 + Piece
Payment Terms :
T/T / PAYPAL
Supply Ability :
10000 + Piece + A Day
Delivery Time :
7 - 10 Working Days
Packaging Details :
Carton
Size :
80mm x80mm x15mm
Voltage :
5v 12v 24v
Speed :
5500rpm
Bearing Type :
Sleeve Bearing Or Ball Bearing
Max Air Flow :
1 . 34 / 2 . 12CFM
Rated Amp: :
0.05 / 0.2 A
Description

DC Axial Motor pc cooling fans 80mm x 80mm x15mm 5V / 12V / 24V Super Silence

ITEM SPECIFICATION/CONDITION

BEARING TYPE): Ball Bearing

RATING VOLTAGE : DC 12V

RATED VOLTAGE) : DC 7.0~13.8VDC

START-UP VOLTAGE) : DC 7.0V (ON/OFF)

RATED CURRENT) : 0.30A±10﹪　

RATED SPEED) : 3000RPM±10%

AIR FLOW): 34.33CFM

AIR PRESUURE) : 0.11Inch-H2O

NOISE LEVEL) : 54dB(A)

PROFECFION TRPE)

RESISTANCE PROFECTED) : YES

AUTO START) :NO

TACHOMETER OUTPUT) :NO

LOCK ROTOR ALARM OUTPUT):NO(PULSE WIDTH MODULATION) :NO

THERMAL SPEED CONTROLLED):NO

(CONNECTION LEAD TYPE) :UL1007 24#AWG =550mm

LABEL :12V-0.30A

Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX8015AB(S)M5 B.S 5 3.5-5.5 0.38 1.90 2500 27.45 0.78 0.08 18.73 27.00 54.00
MX8015AB(S)L5 B.S 5 3.5-5.5 0.25 1.25 2000 22.07 0.63 0.05 12.55 23.00 54.00
MX8015AB(S)H1 B.S 12 7.0-13.8 0.30 3.60 3000 34.33 0.97 0.11 27.16 33.00 54.00
MX8015AB(S)M1 B.S 12 7.0-13.8 0.20 2.40 2500 27.45 0.78 0.08 18.73 27.00 54.00
MX8015AB(S)L1 B.S 12 7.0-13.8 0.12 1.44 2000 22.07 0.63 0.05 12.55 23.00 54.00
MX8015AB(S)H2 B.S 24 14.0-27.6 0.18 4.32 3000 34.33 0.97 0.11 27.16 33.00 54.00
MX8015AB(S)M2 B.S 24 14.0-27.6 0.15 3.60 2500 27.45 0.78 0.08 18.73 27.00 54.00
MX8015AB(S)L2 B.S 24 14.0-27.6 0.10 2.40 2000 22.07 0.63 0.05 12.55 23.00 54.00

  1. DIMENSIONS ＆ CONSTRUCCTION
  2. All dimensions , direction of rotation and air flow were specified as per drawing attached .
  3. CHARACTERISTICE ＆ DEFINITION
    1. All rated characteristics were specified as per data sheet enclosed
    2. Rated Current ; Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage .
    3. Rated Speed ; Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
    4. Start Voltage ; The voltage which is able to start the fan to operate by suddenly switching “ON”
    5. Input Power ; Input Power shall be measured after 3 minutes of continuos rotation at rated volage .
    6. The fan can be locked , Locked Rotor Current ; Locked Current shall be measured within one minute of rotor Locked after 3 minutes of continuous at rated voltage in clean air
    7. Air Flow ＆ Static Pressure ; The air flow data and static pressures should be determined in accordance with AMCA standard or DIN24163 specification in a double chamber testing with intake side measurement
    8. Noise Level ; The measurement of noise level is carried out with reference to DIN45635 in an anechoic chamber with the microphone positioned 1 meter from the air intake . Testing fan shall be hung in clean air

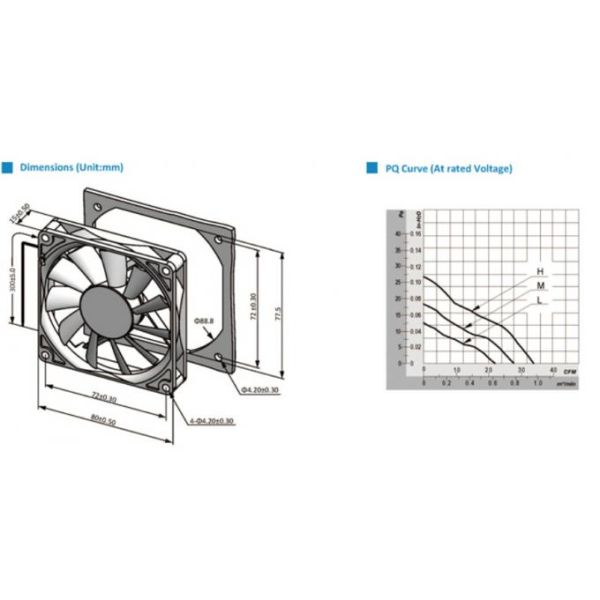

Dimensions (Unit ; mm)

DC Axial Motor pc cooling fans 80mm x 80mm x15mm 5V / 12V / 24V Super Silence

Competitive Advantage :

* Qualified, cost effective and easily operated

* Small in shape, have compact structure

* UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Company Show
DC Axial Motor pc cooling fans 80mm x 80mm x15mm 5V / 12V / 24V Super Silence
Product Application
DC Axial Motor pc cooling fans 80mm x 80mm x15mm 5V / 12V / 24V Super Silence
