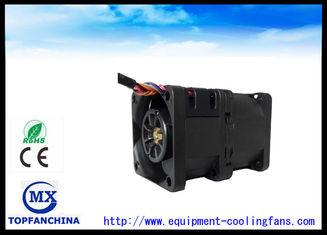

Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Specifications
Brand Name :
MX , ODM , OEM
Model Number :
MX3628ABH1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T / PAYPAL
Supply Ability :
us$1.5/pcs to us$3.00/pcs, and negotiation
Delivery Time :
5-12 working days after received your payment
Packaging Details :
Carton
Voltage :
12v
Size :
36mm x 36mm x 28mm
Material :
Plastic, PBT
Motor :
Brushless Type
Speed :
19000RPM
Color :
Black
Description

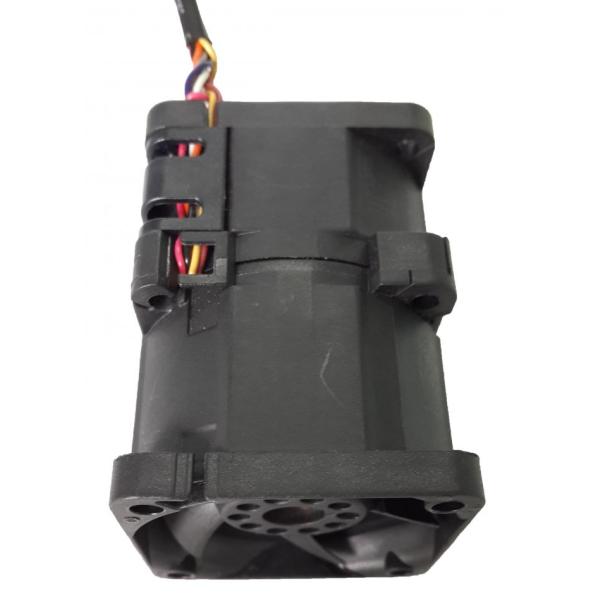

Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant

Applications :


Topfan’s fan products are utilized by all type of machines which required heat reduction systems ,
such as UPS systems ; Telecommunication equipments ; Ventilating systems ; LED Digital signage ; Disports/exercise equipments ; Medical instruments .


Expeceed Life :

Ball Bearing 70 , 000 hours


Description :

Frame and Impeller : Plastic ( 94V-0 ) , Material
Bearing Type : Ball bearing
Function Range : FG RD
Leadwire : UL 1061 AWG #28 Or Equlvalent
Operating Voltage : 12V
Tempetature Range : –20℃ to +70℃
Motor : Rotational direction CCW view from front face


A : Specifications :

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX4056ABM1 B 12 7.0-13.2 0.85 10.20 11000 26.05 0.74 1.50 58.00 96.00
MX4056ABH1 B 12 7.0-13.2 1.25 15.00 13900 29.83 0.85 2.03 61.50 96.00
MX4056ABU1 B 12 7.0-13.2 1.50 18.00 15600 32.41 0.92 2.64 64.50 96.00

B: Electrical Specification:

ITEM Specification . Condition
Locked Rotor Protection □ Safety Condition

■		 Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec
Polarity Protection ■ Open circuit when Vcc&GND are exchanged
□ Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
Insulation Resistance 10MΩ Between unshielded wire and frame at 500VDC / min
Dielectric Strength 5mA Max/ Measured b/w lead wire ( + ) and frame at 500VAC/min
Special Function □ Soft Start
5s (0 to Max speed)		 □ Current Limiter



C. ( Main Materials, Parts Specification )

Bearing ■ ( Dual Ball Bearing ) □ ( Sleeve Bearing )
Frame ■ PBT of UL94V-0. □ Die-cast Aluminum Alloy
Impeller ■ PBT of UL94V-0. □ Steel
Bobbin PBT of UL94V-0.
Lead Wire ■ Red ( + ) ■ Black (-) □ Blue ( PWM ) UL 1571 28#
□ Yellow ( FG ) □ White ( RD ) 2 wires 100±10mm
Connector No
Tube No


D: Dimensions (Unit:mm)

Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant

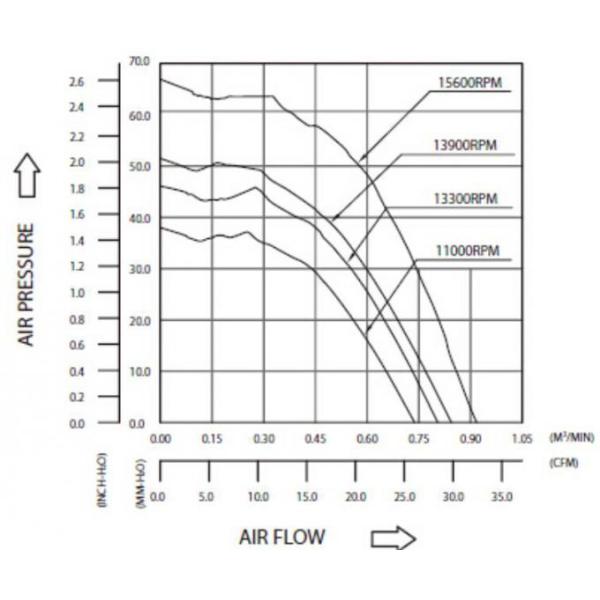

Fan Performance Curve

Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant

Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans Heat - resistant
Product tags

waterproof cooling fan

,

waterproof cooler

,

water proof fan
