65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers
65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers
Specifications
Brand Name :
MX
Model Number :
MX65120CUM11
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD15 - 18 / PCS
Payment Terms :
T / T , Western Union
Supply Ability :
100000PCS / MONTH
Delivery Time :
10 - 15 Working DAYS
Packaging Details :
carton box
Size :
65mm X 120mm
Bearing :
ball bearing and sleeve bearing
Speed :
1600rpm
Motor type :
AC brushless type
Certifications :
CE / ROHS
Material :
Iron frame and impellers
Voltage :
110V
Description

65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers

1 Product Desription

Product size : 65mm X 120mm
Frame : Iron
Impeller : Aluminum Alloy
Motor protection : Impedance protect

ENVIRONMENTAL

OPERATING TEMPERATURE ----------------------- - 20 TO + 50 ℃ ( CLASS E )

STORAGE TEMPERATURE ------------------------- - 30 TO + 75 ℃

OPERATING HOMIDITY ----------------------------------- RH20 % - 80 %

1 RATED VOLTAGE VOLTS V 110 VAC
2 ROTATION SPEED RPM RPM 1600 ± 10 %
3 ACOUSTICAL NOISE ( AVG ) dB ( A ) dB ( A ) ≤ 40 DETAILS SEE ATTACHED PAGE .
4 MAX . AIR - FLOW m³ / min m³ / m in 2

TWO - CHAMBER METHODS

DEAILS SEE ATTACHED PAGE .
5 MAX . AIR - PRESSURE mmAq mmAq 6

TWO - CHAMBER METHODS

DEAILS SEE ATTACHED PAGE .

Working temperature :
Ball bearing : - 30 ℃ ~ 75 ℃
Sleeve bearing : - 10 ℃ ~ 70 ℃

Net Weight : 1420g

2 Features

Compact

Maintenance-fee

Easy to mount

Low noise level

Little vibration

Reliable movement

3 Application

65mm X 65mm X 120mm cross flow fan is mainly used for ground control , equipment , electronic equipment , medical equipment , computers , power supplies , welding machines , packaging , printing equipment , satellite communications , CNC , machinery and office automation products such as ventilation and cooling purposes .

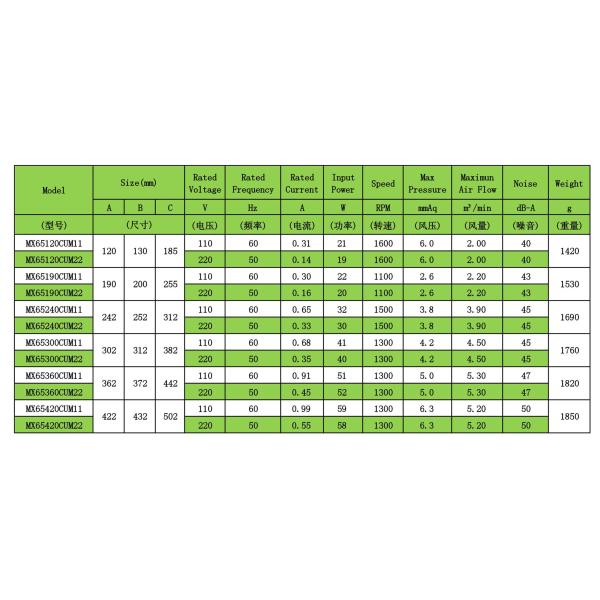

4 . Performance sheet

65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers

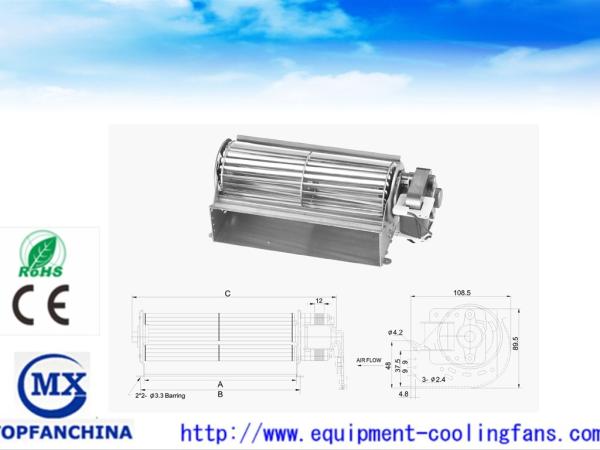

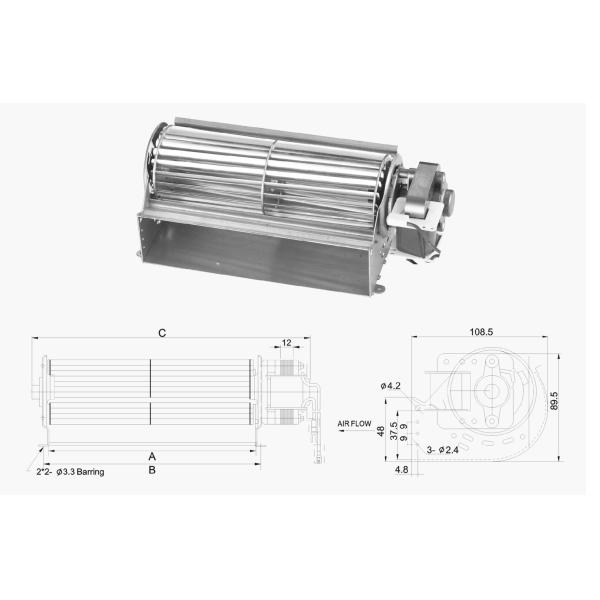

5 . Dimensions

65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers

i ) If you want another rpm or voltage or special functionm please contact with us directly .

ii ) Products have a detail in the approval sheet .

iii ) Specifications are subject to change without notice

6 . Our factory

65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers

65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers

7 . Package

65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers
