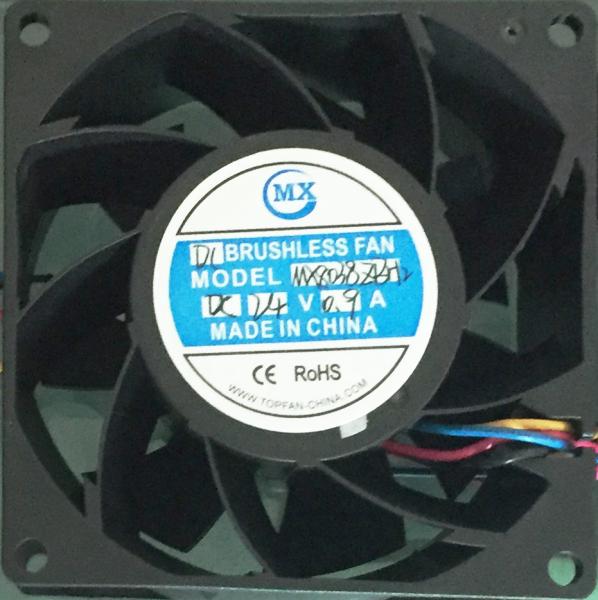

80 X 38mm dc cooler axial 24V brushless cooling fan electronic components suppliers
Frame and Impeller : | Plastic ( 94V - 0 ) , PBT |
Bearing Type : | Sleeve bearing & Ball bearing |
Function Range : | FG RD PWM IP58 IP68 |
Leadwire : | Red Wire Positive ( + ) , Black Wire Negative ( - ) |
Operating Voltage : | 12V 24V 48V |
Tempetature Range : | –20℃ to +70℃ |
Motor : | Impedance Protected and Reverse Polarity Protected |
Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | |||
Part No . | B . S | VDC | VDC | Amp | Watt | RPM | CFM | m3 / min | Inch - H2O | pa | dB - A | g | |
MX8038ZBU1 | B | 12 | 7 . 0 - 13 . 8 | 1 . 50 | 18 . 00 | 6500 | 90 . 60 | 2 . 57 | 0 . 99 | 245 . 56 | 59 . 00 | 153 . 00 | |
MX8038ZBH1 | B | 12 | 7 . 0 - 13 . 8 | 0 . 90 | 10 . 80 | 5500 | 74 . 46 | 2 . 11 | 0 . 68 | 168 . 48 | 53 . 00 | 153 . 00 | |
MX8038ZBM1 | B | 12 | 7 . 0 - 13 . 8 | 0 . 60 | 7 . 20 | 4500 | 60 . 08 | 1 . 70 | 0 . 46 | 114 . 74 | 47 . 00 | 153 . 00 | |
MX8038ZBL1 | B | 12 | 7 . 0 - 13 . 8 | 0 . 40 | 4 . 80 | 3500 | 45 . 11 | 1 . 28 | 0 . 26 | 65 . 70 | 43 . 00 | 153 . 00 | |
MX8038ZBU2 | B | 24 | 14 . 0 - 27 . 6 | 0 . 80 | 19 . 20 | 6500 | 90 . 60 | 2 . 57 | 0 . 99 | 245 . 56 | 59 . 00 | 153 . 00 | |
MX8038ZBH2 | B | 24 | 14 . 0 - 27 . 6 | 0 . 50 | 12 . 00 | 5500 | 74 . 46 | 2 . 11 | 0 . 68 | 168 . 48 | 53 . 00 | 153 . 00 | |
MX8038ZBM2 | B | 24 | 14 . 0 - 27 . 6 | 0 . 30 | 7 . 20 | 4500 | 60 . 08 | 1 . 70 | 0 . 46 | 114 . 74 | 47 . 00 | 153 . 00 | |
MX8038ZBL2 | B | 24 | 14 . 0 - 27 . 6 | 0 . 20 | 4 . 80 | 3500 | 45 . 11 | 1 . 28 | 0 . 26 | 65 . 70 | 43 . 00 | 153 . 00 | |
MX8038ZBU4 | B | 48 | 28 . 0 - 56 . 0 | 0 . 50 | 24 . 00 | 6500 | 90 . 60 | 2 . 57 | 0 . 99 | 245 . 56 | 59 . 00 | 153 . 00 | |
MX8038ZBH4 | B | 48 | 28 . 0 - 56 . 0 | 0 . 30 | 14 . 40 | 5500 | 74 . 46 | 2 . 11 | 0 . 68 | 168 . 48 | 53 . 00 | 153 . 00 | |
MX8038ZBM4 | B | 48 | 28 . 0 - 56 . 0 | 0 . 20 | 9 . 60 | 4500 | 60 . 08 | 1 . 70 | 0 . 46 | 114 . 74 | 47 . 00 | 153 . 00 | |
MX8038ZBL4 | B | 48 | 28 . 0 - 56 . 0 | 0 . 10 | 4 . 80 | 3500 | 45 . 11 | 1 . 28 | 0 . 26 | 65 . 70 | 43 . 00 | 153 . 00 |
NOTICE
1 . If you want another rpm or voltage or special functionm Please contact with us directly .
2 . The size , voltage, power & speed can be made according to your requirements .
3 . Could be made with waterproof function
4 . Could be made with control speed ( PWM ) read speed ( FG ) and alarm ( RD ) function
5 . We ' re professional manufacturer of cooling fans for 11 years ' experience
6 . We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans
7 . We can also provide fans with longer use time.
8 . On time delivery
Application :
equipment , electronic equipment , medical equipment , computers , power supplies , welding machines ,
packaging , printing equipment , satellite communications , CNC , machinery and office automation
productssuch as ventilation and cooling purposes . Electrical Fireplace , Oven , Wall Cooler , Disinfecting
cabinet ,Warmer , Microwave , Refrigerator , Cooler , etc
Factory
Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates
production , research , development and sales . It has 3000 flat plant and professional design and
production team . At present , the company has production development department , Q & C department,
R & D department , the domestic sales department and overseas sales department .
In order to protect the customer ` s rights and interests , all the products were tested strictly and
repeatedly before being put on the market . According to the customer ’ s different requirements , we can
do the following tests of fan : wind tunnel test , vibration test , noise test , drop test , salt spray test ,
waterproof test , dust test , cycle test of high and low temperature , life testing , simulation test of high
altitude low voltage , and ten items tested ROHS .
Shipment
Any more information , please feel free to contact Mona ——→
We will reply you within 2 hours . Thanks
