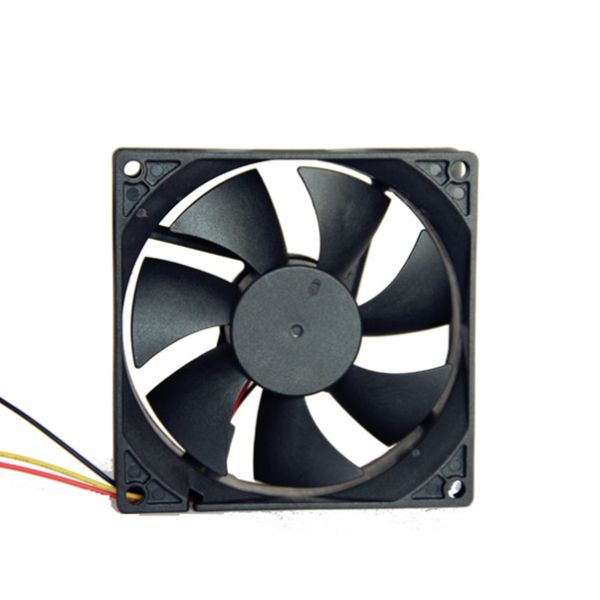

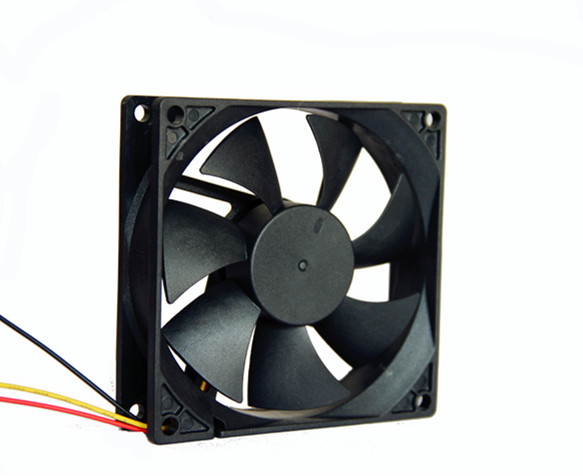

High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
Specifications
Brand Name :
MX
Model Number :
MX9225ABU1
Certification :
CE ROHS
Place of Origin :
GuangDong / China
MOQ :
500pcs
Price :
USD + 5 / 12 + Piece
Payment Terms :
T / T , paypal
Supply Ability :
10000 + Piece + A day
Delivery Time :
10 - 15 Working Daysc
Packaging Details :
Carton Box
Size :
92 mm X 92mm X 25 mm
Voltage :
12V / 24V / 48V
Bearing Type :
Ball bearing
Speed :
2500-4000rpm
Motor :
DC brushless type
Weight :
78g
Description

AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm

Gerenal Specifications :

Bearing Type : Ball Bearing
Function : IP55 , IP58 , IP66 , IP68 ,
Frame and Impeller : 94V - 0 fireproof , metal frame and plastic impeller
Voltage : DC 12V 24V 48V
Temperature range : - 10 ℃ to + 60 ℃
Expected Life : ＜ 80000 hours

High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm

Specifications

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX9225AB(S/Y)U1 B.S.Y 12 7.0-13.8 0.60 7.20 4000 63.73 1.80 0.22 55.80 47.00 78.00
MX9225AB(S/Y)H1 B.S.Y 12 7.0-13.8 0.50 6.00 3500 54.98 1.56 0.18 43.74 41.00 78.00
MX9225AB(S/Y)M1 B.S.Y 12 7.0-13.8 0.40 4.80 3000 46.23 1.31 0.13 31.68 37.00 78.00
MX9225AB(S/Y)L1 B.S.Y 12 7.0-13.8 0.30 3.60 2500 37.93 1.07 0.09 22.95 31.00 78.00
MX9225AB(S/Y)D1 B.S.Y 12 7.0-13.8 0.20 2.40 2000 30.96 0.88 0.06 16.18 25.00 78.00
MX9225AB(S/Y)U2 B.S.Y 24 14.0-27.6 0.50 12.00 4000 63.73 1.80 0.22 55.80 47.00 78.00
MX9225AB(S/Y)H2 B.S.Y 24 14.0-27.6 0.40 9.60 3500 54.98 1.56 0.18 43.74 41.00 78.00
MX9225AB(S/Y)M2 B.S.Y 24 14.0-27.6 0.30 7.20 3000 46.23 1.31 0.13 31.68 37.00 78.00
MX9225AB(S/Y)L2 B.S.Y 24 14.0-27.6 0.20 4.80 2500 37.93 1.07 0.09 22.95 31.00 78.00
MX9225AB(S/Y)D2 B.S.Y 24 14.0-27.6 0.15 3.60 2000 30.96 0.88 0.06 16.18 25.00 78.00
MX9225AB(S/Y)U4 B.S.Y 48 28.0-56.00 0.40 19.20 4000 63.73 1.80 0.22 55.80 47.00 78.00
MX9225AB(S/Y)H4 B.S.Y 48 28.0-56.00 0.25 12.00 3500 54.98 1.56 0.18 43.74 41.00 78.00
MX9225AB(S/Y)M4 B.S.Y 48 28.0-56.00 0.20 9.60 3000 46.23 1.31 0.13 31.68 37.00 78.00
MX9225AB(S/Y)L4 B.S.Y 48 28.0-56.00 0.15 7.20 2500 37.93 1.07 0.09 22.95 31.00 78.00
High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm

High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm

Information

1. Place of origin: Guangdong ,China (Mainland)

2. Bearing Type: ball bearing

3. Model number: All Size

4. Packing& Delivery: regular packing or based on your request

5. After- Sales Service Provided: Overseas third party support available

6. Delivery Detail: 15-20 days after receive deposit

7. Payment: T/T and paybal
〈More detial should be discussed〉

High Speed 63.73 CFM Exhaust Fan / Metal Brushless Cooling Fans 92 mm X 92 mm X 25 mm
