IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow
Specifications
Brand Name :
MX
Model Number :
MX20060ABH11
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD4.5- 7.5/ PCS
Payment Terms :
T / T
Supply Ability :
100000PCS / MONTH
Delivery Time :
10 - 15 DAYS
Packaging Details :
carton box
Size :
150mm X 150mm X 51mm
Bearing :
ball bearing
Speed :
2000-2500rpm
Motor type :
DC brushless type
Certifications :
CE ROHS
Material :
metal frame and plastic impeller
Weight :
850g
Noise :
43-58db
Current :
0.13-0.46A
Description

IP56 IP58 IP68 waterproof coolong fan with 200 cfm air flow 2000rpm exhaust fan 150mm X 150mm X 51mm



1 . Product Desription

Basic specification Beaing type Ball bearing
Rated voltage 110V/120V/220V/240V
Input power 30W-44W
Speed 2000RPM-2500RPM
Max air flow 187-200CFM
Function Waterproof
Meteial and structure Frame Metal
Impeller Plastic (94V-0),PBT
Motor Reverse Polarity Protected
Leadwire 2 wires(red+,balck-)
Connector
Performance Expected life
Ball bearing 50000 hours(40℃)
Sleeve bearing 30000 hours(40℃)
Allowwable temperature range
operating –10℃ to +60℃
storage –40℃ to +70℃


2 Features

  • Compact
  • Maintenance-fee
  • Easy to mount
  • Low noise level
  • Little vibration
  • Reliable movemen


3 . Dimensions

IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow

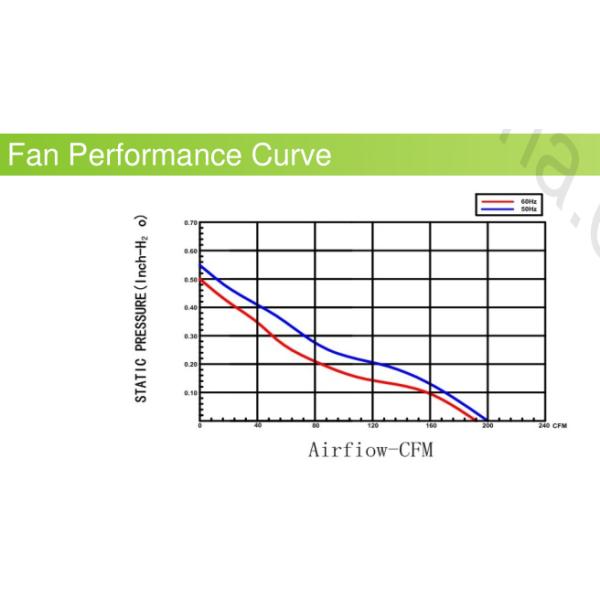

5 . Performance Curve
IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow




6.Factory

Shenzhen Topfan - China Development Technology Co . , Ltd , founded in 1996 in Shenzhen China , is a professional manufacturer on dc brushless fans and ac fans . Products are CE , RoHS certificated and good sellers both at home and abroad , including Europe , North America , Asia ( Korea and India ) etc .

Based on mutual benefit and development , we always make our biggest efforts to do everything better for our customers , and we have built up a good reputation among our customers .

IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow

> > If you want another rpm or voltage or special functionm please contact with us directly.

> > Products have a detail in the approval sheet .

> > Specifications are subject to change without notice

> > The size , voltage , power & speed can be made according to your requirements !

> > could be made with waterproof function

> > We are professional manufacturer of cooling fans & motors for 11 years ' experience

> > On time delivery

IP56 IP58 IP68 waterproof 2000rpm exhaust fan 150mm X 150mm X 51mm 200 cfm air flow

RFQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for but not free
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?

We offer 30 , 000 hours warranty for sleeve bearing fans , 50 , 000 hours

warranty for ball bearing fans .

We can also provide fans with longer use times

Any more information,pls feel free to contact Damon
