12V Cross Flow Blower Fan 90mm / 150mm / 250mm / 290mm used for Air Conditioner and ladder

Application :
It is widely used in refrigerator, freezer, Chillers,heaters, chassis, air conditioners, elevator, lift , industry equipment, electronic equipment, medical equipment, ground control, power supplies, welding machines, packaging and printing equipment, satellite communications, CNC, machinery and office automation products for ventilating and cooling purposes.

Material :

Framework : Cast Iron

Impeller : Aluminum alloy

Protection : Impedance Protected

Temperature Range : 0°C~+45°C(up to-50°C~+100°C)

Major Characteristic Parameters :

Bearing type : Ball / Sleeve

Working Voltage : DC 12Volt / DC 24Volt

Rated Frequency : 60Hz / 50 Hz

Impeller dimention

Outlet air length: 90mm / 150mm / 250mm / 290mm

Motor Type : Brushless motor

Motor Rotation: CCW

Outer Frame Structure: Square, inlet air from the top, oulet air to the under

Expected life :

ball bearing 50,000 hours ( 40 °c )

sleeve bearing 30,000 hours( 40 °c )

Feasure :

low noise level, reliable movement, long life, work stable, easy to mount, low prices, high quality.

Specification :

Please Note :
Rated Current : Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed : Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage : The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard : Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.

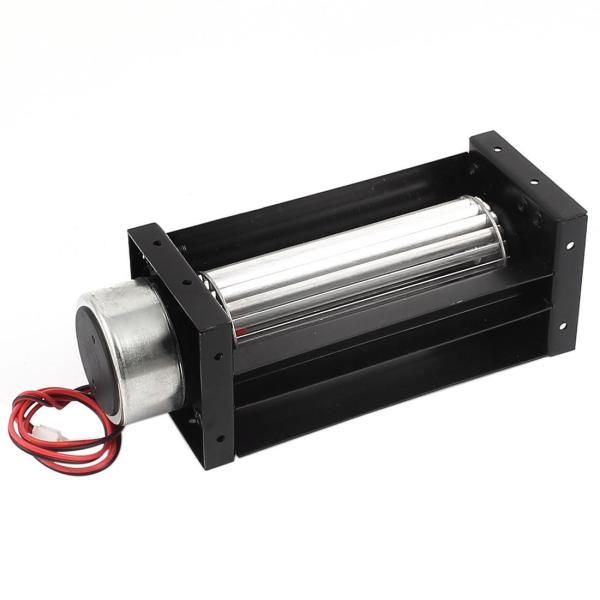

Cross Flow Fan show :
