260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX6018CUM11
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
us$8 / pcs to us$20.00 / pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600, 000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
ac FAN, cross flow fan, ac cross flow fan, tangential blower fan, ventition fan, radita fan, fridge cooler.
Rate Voltage :
110V / 220V
Current :
0.58A / 0.26A
Speed :
2500 RPM
Bearing type :
sleeve / ball bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Max air flow :
101.5CFM
Weight :
1350g
Impeller Diameter :
60 mm
Total size :
260 mm * 95 mm * 82 mm
air outlet size :
35 mm * 180 mm
Description

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM

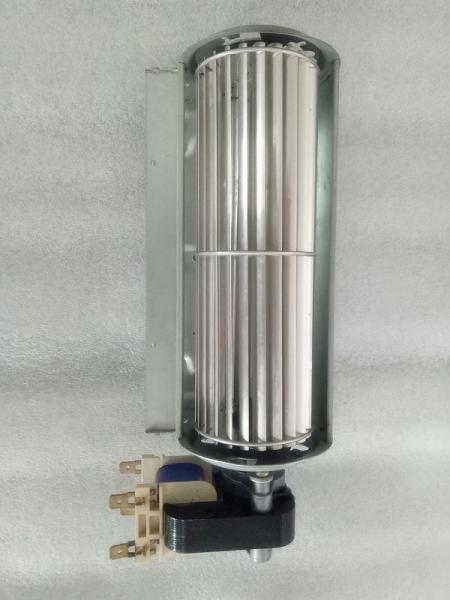

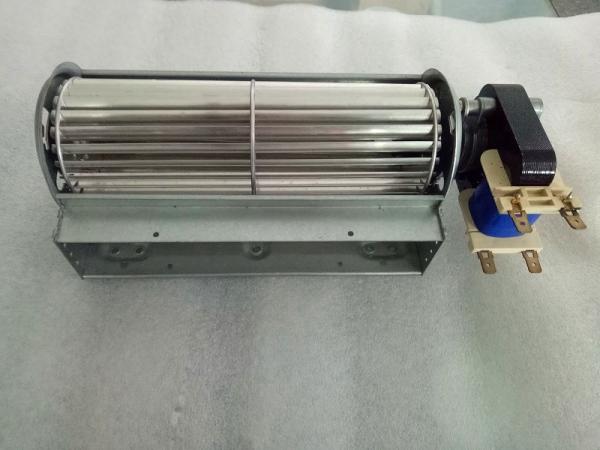

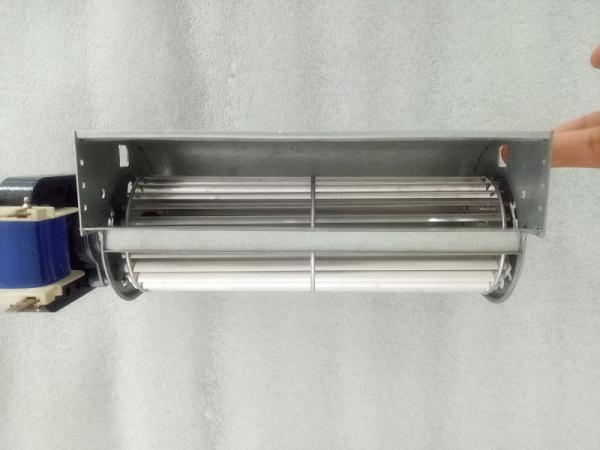

60U * 180 series cross flow fan, it has low noise and long life expectancy*, being widely used in the industrial production equipment , medical instruments, home appliances , etc .

Product material:


Impeller: fan impeller with aluminum-magnesium alloy, light weight, high strength, air volume, low noise, low vibration, good temperature, long life advantages.


Duct: the guard board with SPGC 1.0T (0.6-1.0 depending on the different specifications may be)


Connection: EPDM anti-fatigue high temperature silicone rubber parts


Bearing: original imported bearings

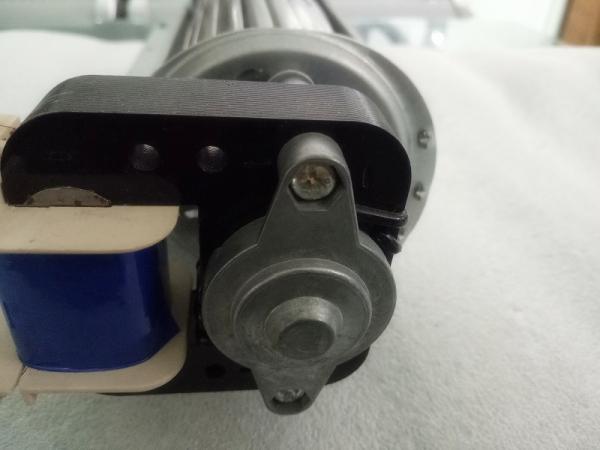

Motor: AC: AC cover motor, AC capacitor motor, (plastic motor)


The operating voltage is: AC110V, AC220V, 50 / 60HZ

Product performance:


Insulation class: standard for the E-class, (up to H level)


Insulation withstand voltage: AC 1500V, 1 minute (up to 3500V, 1 minute)


Insulation resistance: DC 500V 100M or more


Use temperature: -15 ℃ ~ +70 ℃ (up to -50 ℃ ~ +120 ℃)

Specifictaion and Dimention:

Model Size(mm) Rated voltage (v) Rated Frequency(Hz) Rated Current (A) Input Power(W) Speed (rpm) Max Static Pressure (mmAq) Air Flow (m3/mim) Noise Leve (dB-A) Weight (g)
A B C
MX60180CUM11 181 193 154 110 60 0.49 41 2300 6 3 48 1350
MX60180CUM22 220 50 0.26 30 2300 6 3 48

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM

Application:

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM

More cross flow fan:

Product introduction: The impeller diameter from 25mm to 110mm, length from 50mm to 800mm can be made! Its specifications are: Φ25, Φ30, Φ40, Φ43, Φ48, Φ50, Φ60, Φ65, Φ80, etc. 9 series covers more than 600 specifications such as AC and DC!

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM

Factory show and workshop:

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM

260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
