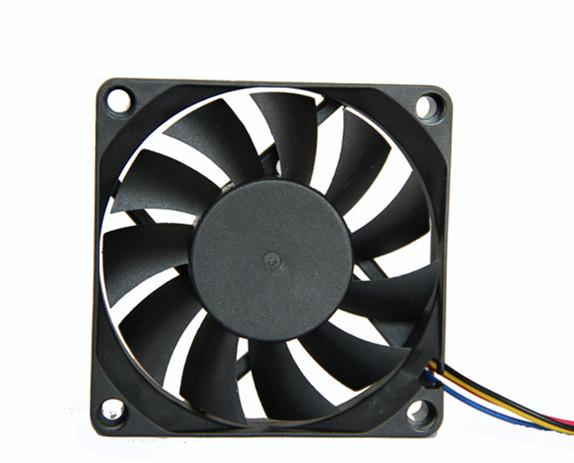

Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller
Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller
Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller
Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller
Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller
Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller
Specifications
Brand Name :
MX
Model Number :
MX7015AB(S)U1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
200
Price :
us $ 2 / pcs to us $ 5 . 0 / pcs , and negotiation
Payment Terms :
T/T and paypal
Supply Ability :
10,000 pcs per day
Delivery Time :
7-10 workday
Packaging Details :
carton box
Color :
Black
Size :
70 x 70 x 15 mm
Speed :
4500 RPM
Weight :
48g
Rated voltage :
12V
Input power :
5.4w
Product name :
Smart cooling fan
Description

Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller

product detail

Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG RD PWM IP58 IP68
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 5V 12V 24V 48V
Tempetature Range: –10℃ to +60℃
Motor: Impedance Protected and Reverse Polarity Protected

Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller

Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller

Specification

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX7015AB(S)U1 B.S 12 7.0-13.8 0.45 5.40 4500 34.95 0.99 0.21 51.98 41.00 48.00
MX7015AB(S)H1 B.S 12 7.0-13.8 0.40 4.80 4000 31.28 0.89 0.16 40.99 36.00 48.00
MX7015AB(S)M1 B.S 12 7.0-13.8 0.30 3.60 3500 28.48 0.81 0.14 34.72 33.00 48.00
MX7015AB(S)L1 B.S 12 7.0-13.8 0.20 2.40 3000 23.95 0.68 0.10 25.20 28.00 48.00
MX7015AB(S)D1 B.S 12 7.0-13.8 0.15 1.80 2500 17.45 0.49 0.05 13.53 26.00 48.00
MX7015AB(S)U2 B.S 24 14.0-27.6 0.30 7.20 4500 34.95 0.99 0.21 51.98 41.00 48.00
MX7015AB(S)H2 B.S 24 14.0-27.6 0.28 6.72 4000 31.28 0.89 0.16 40.99 36.00 48.00
MX7015AB(S)M2 B.S 24 14.0-27.6 0.25 6.00 3500 28.48 0.81 0.14 34.72 33.00 48.00
MX7015AB(S)L2 B.S 24 14.0-27.6 0.20 4.80 3000 23.95 0.68 0.10 25.20 28.00 48.00
MX7015AB(S)D2 B.S 24 14.0-27.6 0.15 3.60 2500 17.45 0.49 0.05 13.53 26.00 48.00

Founded in 1996 in Shenzhen China, we, Shenzhen Topfan-China Technology Co., Ltd, is professional manufacturer and researcher on dc brushless fans and ac fans. Our products are ISO9000, CE, RoHS and TUV certificated and good sellers both at home and abroad, including European, North American, Asia(Korea and India) and so on. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others. Based on mutual benefit and development, we always make our biggest efforts to do everything better for our customers.

Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller

Packing:

Carton box or according to customers demand

Shipment:
1. FOB Shenzhen or HongKong (mass production)
2. DHL,UPS,FEDEX,TNT or any other international express (sample or small quantity)
Delivery Time:

Generally, 500~1000pics 10 days after confirming the PI

Smart Fan Control For Car Cooling Sytem 12V 4500 RPM Cooling Fan 7015 Platics Frame and Impeller
