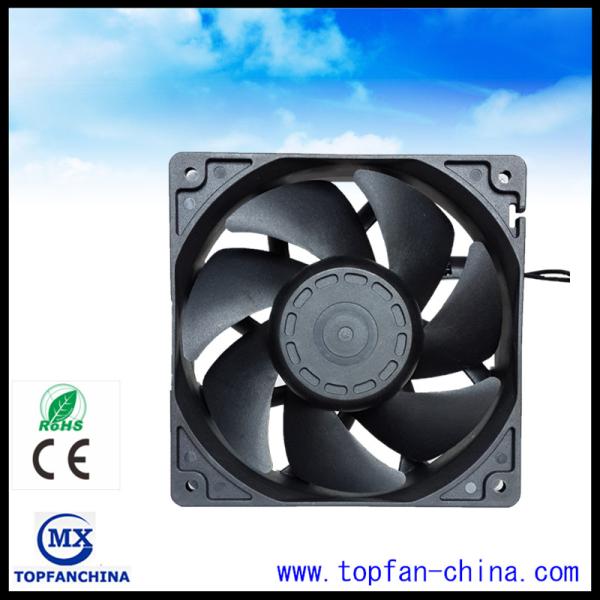

Low Noise AC 220V Air Conditioner / Fridge Cooling Fan 120mm x 38mm fan
Low Noise AC 220V Air Conditioner / Fridge Cooling Fan 120mm x 38mm fan
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX12038ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
US$2 - 5
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
AC Cooling Fan
Voltage :
110V / 220V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Size :
120x120x38mm(4.7"x4.7"x1.5")
Description

220V Fridge Cooling Fans / 120x120x38mm fridge Fan , Air Conditioner Fan

220V 120x120x38mm AC Cooling Fan, low noise and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN,used for cooling and ventilation.
  • Frame: Aluminum ADC-12,Painted Black
  • Impeller: Plastic With 7 Blades
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing

Specification

Model

MX12038ABH22

Outline Dimension

120x120x38mm

Rated Voltage

AC 220V

Voltage Range

AC 200V~240V

Frequency

50/60Hz

Rated Current

0.14/0.12A±10%

Power Consumption

25/16±10%

Speed

2500/2800RPM±10%

Max. Air flow

87/100CFM±10%

Max. Static Pressure

0.26/0.32Inch-H2O

Noise Level

38/401dB(A)

Weight

500g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH
