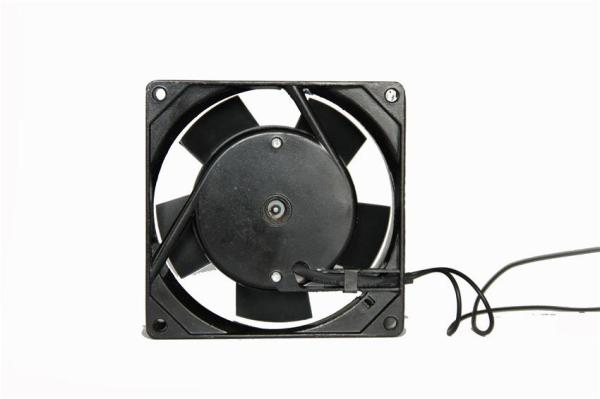

3.7 Inch 110V / 120V AC Low Noise Cooling Fan , Sleeve Bearing Industrial Ventilation Fans
3.7 Inch 110V / 120V AC Low Noise Cooling Fan , Sleeve Bearing Industrial Ventilation Fans
Specifications
Brand Name :
MX,ODM,OEM
Model Number :
MX9225ABM11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Product Name :
3.7 Inch Fridge Cooling Fan 92*92*25mm , AC Cooler Fan , Equipment Cooling Fans 92mm
Voltage :
110V 120V 220V 240V
Frequency :
50/60hz
Power Consumption :
12/15W
Air Flow :
27/34CFM
Bearing Type :
Ball Bearing , Sleeve Bearing
Frame :
Metal
Impeller :
Plastic
Weight :
250g
Description

3.7 Inch Fridge Cooling Fan 92*92*25mm , AC Cooler Fan , Equipment Cooling Fans 92mm

92*92*25mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 110/120V 220/240 V AC FAN,used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing Or Sleeve Bearing

Specification:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX9225ABM11 B.S 110/120 50/60 0.14/0.12 12 2300/2800 27/34 0.76/0.96 0.16/0.20 29/31 250
MX9225ABM22 B.S 220/240 50/60 0.09/0.05 15 2300/2800 27/34 0.76/0.96 0.16/0.20 29/31 250

Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃

Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃

Humidity:20%~95%RH

03

Life

50000H

Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

Dimensions:

3.7 Inch 110V / 120V AC Low Noise Cooling Fan , Sleeve Bearing Industrial Ventilation Fans3.7 Inch 110V / 120V AC Low Noise Cooling Fan , Sleeve Bearing Industrial Ventilation Fans
