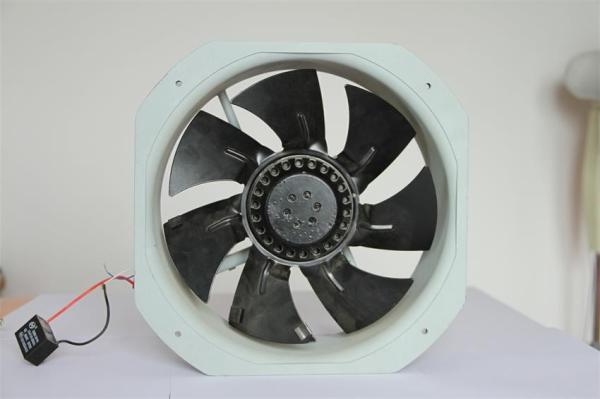

Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
Specifications
Brand Name :
MX/ODM/OEM
Model Number :
MX28080ABH11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Product Name :
280*280*80mm AC Brushless Fan For Industiral , AC Motor Fan 220V 380V , Machine Fan
Voltage :
110/120V 220/240V 380V /420V
Frequency :
50/60Hz
Power Consumption :
120W
Max. Static Pressure :
136.7/154.1INCH-H2O
Speed :
2400/2650RPM
Weight :
2800g
Description

Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz

280*280*80mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN,used for cooling and ventilation.
  • Frame: Aluminum ADC-12,Painted Black
  • Blade:metal
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing

Specification

Model

MX28080ABH11

Outline Dimension

280*280*80mm

Rated Voltage

AC 110V

Voltage Range

AC 110V~120V

Frequency

50/60Hz

Rated Current

1.2A±10%

Power Consumption

120W±10%

Speed

2500RPM±10%

Max. Air flow

1512CFM±10%

Max. Static Pressure

154Inch-H2O

Noise Level

70dB(A)

Weight

2800g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH

Dimension:

Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60HzMetal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz
