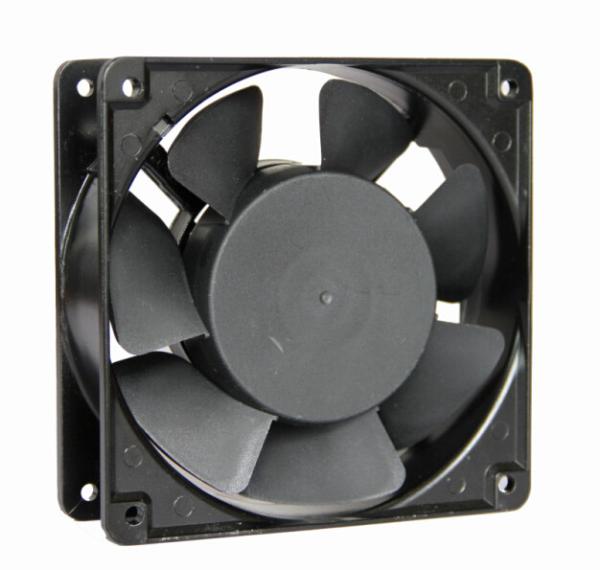

220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan
Specifications
Brand Name :
MX
Model Number :
MX12038ABH22
Certification :
CE/ROHS/UL
Place of Origin :
China
MOQ :
500pcs
Price :
US$2 - 4
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
AC Cooling Fan
Voltage :
110V / 220V / 380V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Speed :
2400 / 2600 RPM
Size :
120x120x38mm(4.7x4.7x1.5Inch)
Description

220V Fridge Cooling Fan / 120 x 120 x 38mm Cooling Fan / AC Cooling Fan

220V 120 x 120 x 38mm AC Fridge Cooling Fan, long life expectancy and low noise , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Impeller:Plastic With 7 Blades
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing

Specification

Model

MX12038ABH22

Outline Dimension

120 x 120 x 38mm

Rated Voltage

AC 220V

Voltage Range

AC 200V~240V

Frequency

50/60Hz

Rated Current

0.30/0.27A±10%

Power Consumption

24/20W±10%

Speed

2400/2600RPM±10%

Max. Air flow

95/110CFM±10%

Max. Static Pressure

0.20/0.24Inch-H2O

Noise Level

35/41dB(A)

Weight

520g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH

Model

Bearing

system

Rated Voltage

(v)

 Freq
(HZ)

Current

Amp
(Amp)

Rated Input

Power
Watt

 Speed
(rpm)		 Air Flow
(CFM)		 Air Flow
(m3/mim)

Max Static

Pressure
(Inch-H2o)

 Noise Level
(dB-A)		 Weight
(g)
MX12038AB(S)H11 Ball
Sleeve		 110/120 50 0.30 24 2400 95 2.5 0.2 35 520
60 0.27 20 2600 110 2.8 0.24 41 520
MX12038AB(S)H22 Ball
Sleeve		 220/240 50 0.13 20 2400 95 2.5 0.2 35 520
60 0.12 17 2600 110 2.8 0.24 41 520
MX12038AB(S)H38 Ball
Sleeve		 380/400 50 0.07 18 2400 95 2.5 0.2 35 520
60 0.05 14 2600 110 2.8 0.24 41 520
