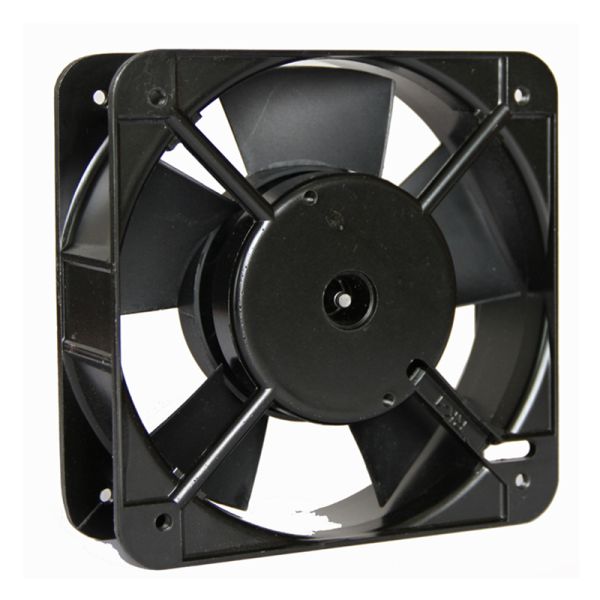

Low Noise Ball Bearing 150mm Industrial Ventilation Fans For Network Communications
Low Noise Ball Bearing 150mm Industrial Ventilation Fans For Network Communications
Low Noise Ball Bearing 150mm Industrial Ventilation Fans For Network Communications
Low Noise Ball Bearing 150mm Industrial Ventilation Fans For Network Communications
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX15051ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
US$8 -12
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
AC Cooling Fan
Voltage :
110V / 220V / 380V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Size :
150x150x51mm(6.0"x6.0"x2.0")
Description

220V AC Industrial Fans / 150x150x51mm AC Ventilation Fans , AC Cooling Fans

220V 150x150x51mm AC Industrial Fan, low noise and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Impeller:Plastic With 7 Blades
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing

Specification

Model

MX15051ABH22

Outline Dimension

150x150x51mm

Rated Voltage

AC 220V

Voltage Range

AC 200V~240V

Frequency

50/60Hz

Rated Current

0.26/0.28A±10%

Power Consumption

44/35W±10%

Speed

2500/2200RPM±10%

Max. Air flow

190/155CFM±10%

Max. Static Pressure

0.55/0.50Inch-H2O

Noise Level

53/48dB(A)

Weight

850g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH

Low Noise Ball Bearing 150mm Industrial Ventilation Fans For Network Communications
