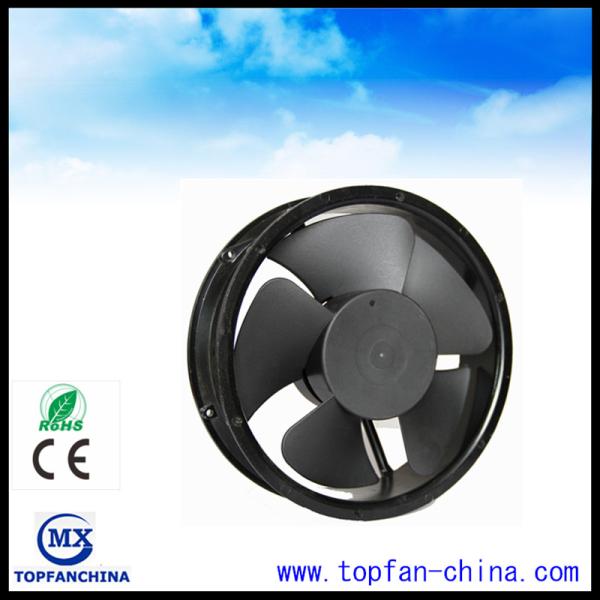

1500 RPM Welding Equipment Cooling Fans , Bathroom / Ceiling Ventilation Fans
1500 RPM Welding Equipment Cooling Fans , Bathroom / Ceiling Ventilation Fans
Specifications
Brand Name :
MX
Model Number :
MX22060ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
US$7 - 11
Payment Terms :
T/T, Western Union
Supply Ability :
200,000pcs per month
Delivery Time :
7-15 working days after received your payment
Packaging Details :
carton
Product Name :
AC Industral Fans
Voltage :
110V / 220V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Speed :
2400 / 2600RPM
Air Flow :
310 /210CFM
Noise Level :
54 /50dB-A
Size :
220*220*60mm(8.7*8.7*2.4Inch)
Description

220V AC Equipment Cooling Fans / 200*200*60mm Cooling Fans , Welding Machine Fans

220V AC Equipment Cooling Fan 220*220*60mm, high air flow and quiet , are widely used in industrial ventilation, as well as industrial production equipment, home appliances, medical equipment etc.

Description:

  • 220V AC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Impeller:Plastic With 5 Blades
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing

Specification

Model

MX22060ABH22

Outline Dimension

220*220*60mm

Rated Voltage

AC 220V

Voltage Range

AC 200V~240V

Frequency

50/60Hz

Rated Current

0.33/0.28A±10%

Power Consumption

55/58W±10%

Speed

1700/1500RPM±10%

Max. Air flow

310/210CFM±10%

Max. Static Pressure

0.50/0.40Inch-H2O

Noise Level

54/50dB(A)

Weight

1430g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~70℃

Operating Humidity:20%~85%RH
