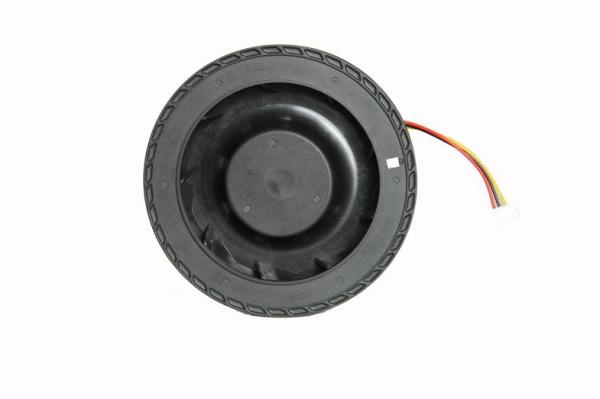

Industrial 4.7 Inch High Proof DC Blower Fan For Telecom Power Supply Station
Industrial 4.7 Inch High Proof DC Blower Fan For Telecom Power Supply Station
Industrial 4.7 Inch High Proof DC Blower Fan For Telecom Power Supply Station
Industrial 4.7 Inch High Proof DC Blower Fan For Telecom Power Supply Station
Specifications
Brand Name :
MX
Model Number :
MX12025GB(S)H2
Certification :
CE/ROSH/UL
Place of Origin :
China
MOQ :
200pcs
Price :
US$2.00/PCS-US5.00/PCS
Supply Ability :
20,000/DAY
Packaging Details :
CARTON BOX
color :
Black
Bearing type :
Dual Ball Bearing
Rated Voltage :
14.0-27.6V
Leadwire :
Red Wire Positive(+),Black Wire Negative(-)
Current :
0.64A
Speed :
4000/5400rpm
Air Flow :
61.2/85.5CFM
Frame and Impeller :
Plastic (94V-0),PBT
Function Range :
FG RD PWM IP66 IP68 IP58
Description

DC Centrifugal Fan With PWM 12V 24V 4.7inch 120*120*25mm , DC Blower FAN , Industrial Fan


Applications

  • Ventilation Equipment & System
  • Heating Equipment & System
  • Air Conditioner
  • Refrigeration equipment
  • MDBS(Mobile Data Base Station)
  • Telecom power supply station


Description:

● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.


A: Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12025GB(S)H1 B.S 12 7.0-13.8 0.64 7.68 5400 85.50 2.43 2.55 634.95 50.00 232
MX12025GB(S)M1 B.S 12 7.0-13.8 0.60 7.20 4000 50.60 1.44 1.91 475.59 46.00 232
MX12025GB(S)H2 B.S 24 14.0-27.6 0.64 15.36 5400 85.50 2.43 2.55 634.95 50.00 232
MX12025GB(S)M2 B.S 24 14.0-27.6 0.60 14.40 4000 56.10 1.59 1.91 475.59 46.00 232
MX12025GB(S)H4 B.S 48 28.0-56.0 0.64 30.72 5400 85.50 2.43 2.55 634.95 50.00 232
MX12025GB(S)M4 B.S 48 28.0-56.0 0.60 14.40 4000 61.20 1.74 1.91 475.59 46.00 232

B: (Main Materials, Parts Specification):

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No



C: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



Dimensions (Unit:mm)
Industrial 4.7 Inch High Proof DC Blower Fan For Telecom Power Supply Station
