Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire
Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire
Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire
Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire
Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire
Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire
Specifications
Brand Name :
MX
Model Number :
MX12032AB(S/Y)U1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$5.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
12V/24V/48V
Speed :
3500rpm
Max air Flow :
158.22CFM
Operating Voltage :
7.0-13.8V
Expected Life :
50,000/30,000 hours(40C)
Tempetature Range :
–20℃ to +70℃
Input Power :
7.2-24Watt
Current :
0.15-2.00A
Bearing Type :
Ball
Weight :
237g
Noise :
34dB-A
Description

Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire


Brushless axial dc fan 120mm 4.7inch, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Detailed Product Description:

  • Voltage:12V , 24V, 48V
  • Insulation Resistance:10M AT 500VDC
  • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
  • Opetation Temperature:-10℃～70℃(Ordinary humidity)
  • Storage Temperature:-40℃～70℃(Ordinary humidity)
  • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)


Description:

● Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 7 blades or 9 blades
● 12V DC 24V DC or 48V DC
● Ball bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.

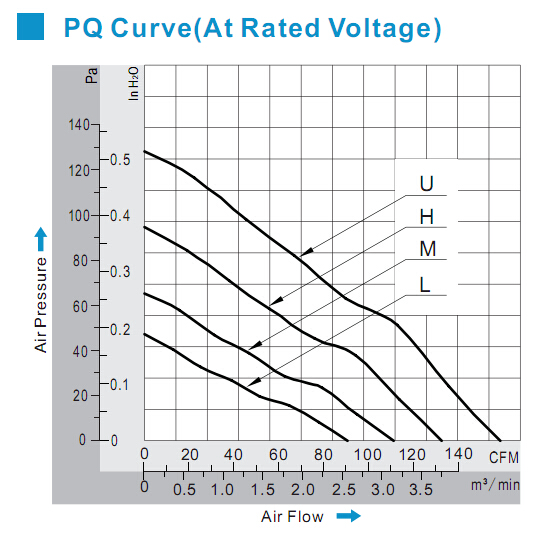

A: Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12032ABU1 B 12 7.0-13.8 2.00 24.00 3500 158.22 4.48 0.51 127.39 50.00 237.00
MX12032ABH1 B 12 7.0-13.8 1.00 12.00 3000 134.99 3.82 0.38 95.12 46.00 237.00
MX12032ABM1 B 12 7.0-13.8 0.80 9.60 2500 110.90 3.14 0.26 64.92 40.00 237.00
MX12032ABL1 B 12 7.0-13.8 0.50 6.00 2000 91.15 2.58 0.18 45.60 33.00 237.00
MX12032ABU2 B 24 14.0-27.6 1.00 24.00 3500 158.22 4.48 0.51 127.39 50.00 237.00
MX12032ABH2 B 24 14.0-27.6 0.70 16.80 3000 134.90 3.82 0.38 95.12 46.00 237.00
MX12032ABM2 B 24 14.0-27.6 0.50 12.00 2500 110.90 3.14 0.26 64.92 40.00 237.00
MX12032ABL2 B 24 14.0-27.6 0.30 7.20 2000 91.15 2.58 0.18 45.60 33.00 237.00
MX12032ABU4 B 48 28.0-56.0 0.60 28.80 3500 158.22 4.48 0.51 127.39 50.00 237.00
MX12032ABH4 B 48 28.0-56.0 0.45 21.60 3000 134.90 3.82 0.38 95.12 46.00 237.00
MX12032ABM4 B 48 28.0-56.0 0.25 12.00 2500 110.90 3.14 0.26 64.92 40.00 237.00
MX12032ABL4 B 48 28.0-56.0 0.15 7.20 2000 91.15 2.58 0.18 45.60 33.00 237.00

B: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



C. (Main Materials, Parts Specification)

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No

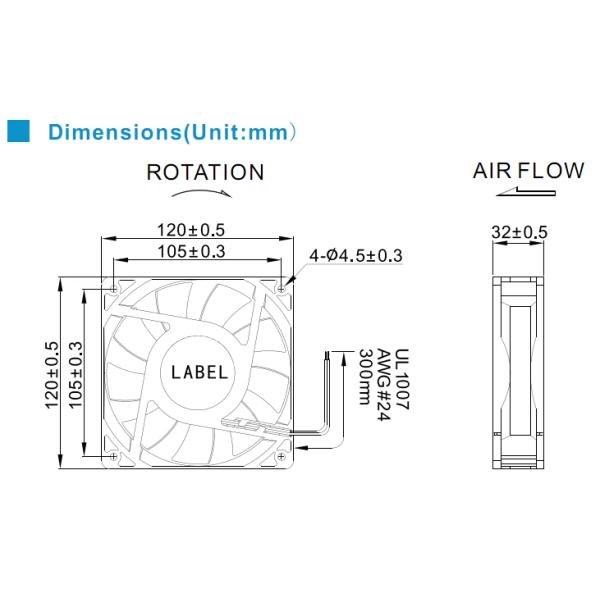

Dimensions (Unit:mm)

Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead WireWaterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire


Waterproof 7 Blade Computer Case Cooling Fans 120mm 24V / 48V With Lead Wire
