Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial
Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial
Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial
Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial
Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial
Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial
Specifications
Brand Name :
MX
Model Number :
MX6020AB(S)U4
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Product Name :
DC Computer Case Cooling Fans 60*60*20mm , Axial Cooler Motor Fan For Machine , Industrial Cooling Fan
Voltage :
12V/24V/48V
Frame :
Plastic
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected and Reverse Polarity Protected
Speed :
5000rpm
Max air Flow :
23.16CFM
Operating Voltage :
28.0-56.0V
Description

Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial


Brushless axial dc fan 60mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Description:

● Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.


Important Note:

Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage: The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard: Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.


A: Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX6020AB(S)H5 B.S 5 3.5-5.5 0.58 2.90 4000 18.74 0.53 0.15 37.27 28.00 52.00
MX6020AB(S)M5 B.S 5 3.5-5.5 0.40 2.00 3500 16.38 0.48 0.13 31.48 26.00 52.00
MX6020AB(S)L5 B.S 5 3.5-5.5 0.25 1.25 3000 13.50 0.37 0.09 21.57 24.00 52.00
MX6020AB(S)U1 B.S 12 7.0-13.8 0.25 3.00 5000 23.16 0.66 0.24 58.94 34.00 52.00
MX6020AB(S)H1 B.S 12 7.0-13.8 0.20 2.40 4500 21.40 0.61 0.20 48.94 31.00 52.00
MX6020AB(S)M1 B.S 12 7.0-13.8 0.16 1.92 4000 18.74 0.53 0.16 38.83 28.00 52.00
MX6020AB(S)L1 B.S 12 7.0-13.8 0.12 1.44 3500 16.38 0.46 0.12 29.52 25.00 52.00
MX6020AB(S)D1 B.S 12 7.0-13.8 0.10 1.20 3000 13.80 0.39 0.09 22.26 23.00 52.00
MX6020AB(S)U2 B.S 24 14.0-27.6 0.16 3.84 5000 23.16 0.66 0.24 58.94 34.00 52.00
MX6020AB(S)H2 B.S 24 14.0-27.6 0.14 3.36 4500 21.40 0.61 0.20 48.94 31.00 52.00
MX6020AB(S)M2 B.S 24 14.0-27.6 0.12 2.88 4000 18.74 0.53 0.16 38.83 28.00 52.00
MX6020AB(S)L2 B.S 24 14.0-27.6 0.10 2.40 3500 16.38 0.46 0.12 29.52 25.00 52.00
MX6020AB(S)U4 B.S 48 28.0-56.0 0.08 3.84 5000 23.16 0.66 0.24 58.94 34.00 52.00
MX6020AB(S)H4 B.S 48 28.0-56.0 0.07 3.36 4500 21.40 0.61 0.20 48.94 31.00 52.00
MX6020AB(S)M4 B.S 48 28.0-56.0 0.06 2.88 4000 18.74 0.53 0.16 38.83 28.00 52.00
MX6020AB(S)L4 B.S 48 28.0-56.0 0.05 2.40 3500 16.38 0.46 0.12 29.52 25.00 52.00

B: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



C. (Main Materials, Parts Specification)

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No

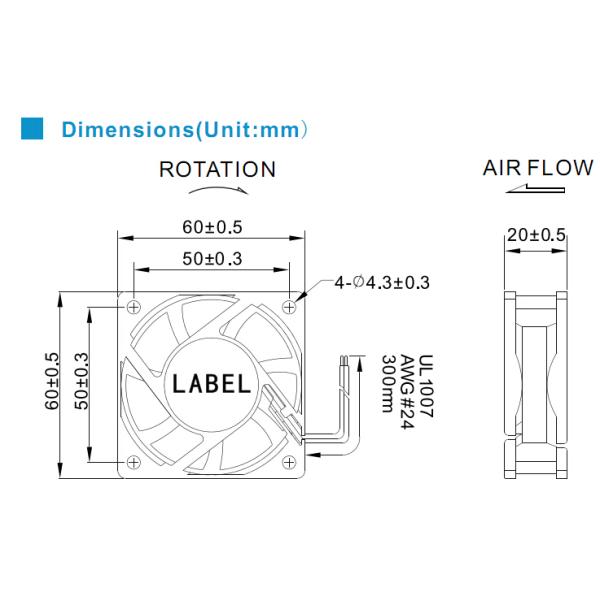

Dimensions (Unit:mm)
Square 60mm Computer Case Cooling Fans For LED Digital Signage And IndustrialSquare 60mm Computer Case Cooling Fans For LED Digital Signage And IndustrialSquare 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial

Square 60mm Computer Case Cooling Fans For LED Digital Signage And Industrial
