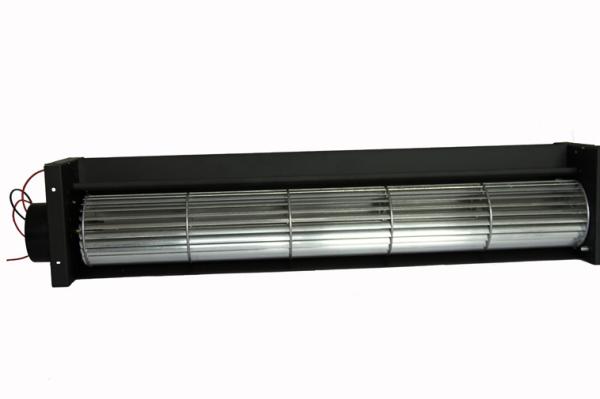

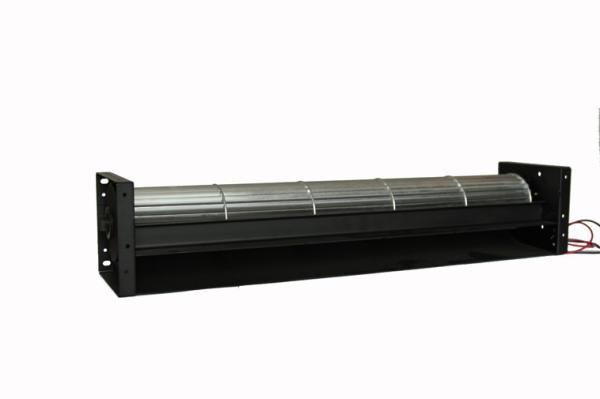

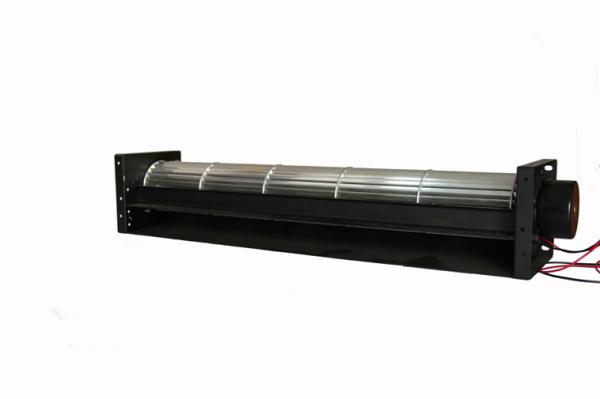

Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
Specifications
Brand Name :
MX
Model Number :
MX60420CFM1
Certification :
CE,ROSH,UL
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Voltage :
12v 24v
Current :
0.30/0.60
Max. Static Pressure :
1.7mmAq
Air Flow :
131/156CFM
Description

60*420mm DC cross flow fan / DC Tangential Fan / Aluminum painted Industrial heater Cross Flow Fan

60*420mm DC cross flow fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 12V 24V DC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Blade:PBT+15%GF
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 2 UEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Sleeve Bearing

Specification

Model

LRD40290A12

Rotor Dimension

40*290mm

Rated Voltage

DC 12V 24V

Voltage Range

DC 7.0-13.8V

Rated Current

0.13A±10% A

Power Consumption

7.20w±10%W

Speed

1400±10%RPM

Max. Air flow

131±10%CFM

Max. Static Pressure

0.075Inch-H2O

Noise Level

50 dB(A)

Weight

1000g

Environmental Specification

Operating Temperature:-30℃~70℃

Operating Humidity:10%~85%RH

Specification:

Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan

Dimension:

Aluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential FanAluminum Painted Industrial Cross Flow Fans , Low Noise DC Tangential Fan
