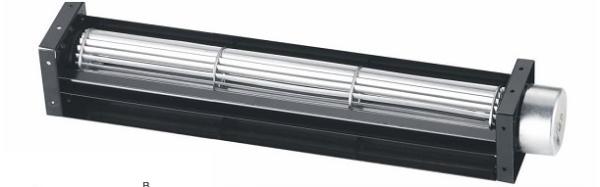

12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm
12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm
12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm
12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm
12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm
12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm
Specifications
Brand Name :
MX/OEM
Model Number :
LRD30190A12
Certification :
CE/ROHS
Place of Origin :
Shen Zhen , China
MOQ :
100pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000 + Pieces + One Week
Delivery Time :
7 - 15 Working Days
Packaging Details :
Carton Box
Bearing Type :
Ball Bearing / Sleeve Bearing
Frame & Impeller :
Aluminum Alloy
Rated Voltage :
12V / 24V
Rated Current :
0.16A / 0.20A
Speed :
2900 RPM
Air Flow :
35 CFM
Noise Leve :
35 / 38 dBA
Weight :
230g
Description

12V / 24V 2900rpm Ventilation Cross Flow Fans DC Cross Flow Fan 30 * 190mm

30 * 190mm DC cross flow fan , low noise and long life expectancy , are widely used in network communications , as well as industrial production equipment , medical equipment , home appliances , etc .

Description :

  • 30 * 190mm DC FAN , used for cooling and ventilation .
  • Frame : Aluminum ADC-12 , Painted Black
  • Blade : PBT + 15%GF
  • Stator & Rotor : Silicon steel
  • Magnet Wires : Copper 2 UEW
  • Bobbin : PA-66 UL 94 V-0
  • Bearing Type : Sleeve Bearing

Specification :

Model

LRD30190A12

Rotor Dimension

30 * 190mm

Rated Voltage

DC 12V

Voltage Range

AC 7V - 13.8V

Rated Current

0 . 20 ± 10%A

Power Consumption

2 . 4w ± 10%W

Speed

2900 ± 10%RPM

Max . Air flow

35 ± 10%CFM

Max . Static Pressure

1 . 8 mmAq

Noise Level

35 dB A

Weight

230g

Environmental Specification

Operating Temperature : - 10℃ ~ 55℃

Operating Humidity : - 20% ~ 80%RH

12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm

12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm

Notes : If you want to know more information about cross flow fan ( Dc or Ac ), please contact with Vivian Dai , thank you very much .

Shenzhen Topfan Technology Development Co . , Ltd is a high - tech enterprises of professional manufacture and researcher on dc brushless fans and ac fans . Is the professional cooling fan manufacturer in the field with the most professional and largest scale intergrating research and development , manufacturing and sales . The products , including brushless fans , cross flow fans, blower fans , centrifugal fans , dc brushless motor , shaded pole , AC and EC fans are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
