High Efficiency Waterproof Computer Case Cooling Fans High Temperature
High Efficiency Waterproof Computer Case Cooling Fans High Temperature
Specifications
Brand Name :
MX,ODM,OEM
Model Number :
MX12038ZBH1
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD 3.0 - USD 5.5 or Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX12038Z Series
Voltage :
12V - 48V (Customizable)
Power Consumption :
12 - 48 W (Customizable)
Air Flow :
145.98 - 222.31 CFM (Customizable)
Speed :
3000 - 4500RPM (Customizable)
Bearing Type :
Ball Bearing
Description

High Efficiency Waterproof Computer Case Cooling Fans High Temperature


1. Description:

  • 92*92*25mm DC Axial Fan , DC Burshless Fan , Computer Fan , DC Cooling Fan

2. Material:

  • Frame:Plastic(UL94V-0)

  • Impeller:Plastic(UL94V-0)

  • Leadwire:UL1007 AWG#26 or Equivalent (+):Red (-):Black

3 . Protection:

  • Motor:Impedance Protected and Reverse Polarity Protected

4. Expected Life:

  • Ball bearing:50,000 hours (40℃)

5. Allowable Ambient Temperature Range:

  • Operating Temperature:-10℃~+70℃

  • Storage Temperature:-40℃~+70℃

  • Non Condensing Environment

6. Insulation Resistance:

  • Not less than 10M ohm between housing and positive end of lead wire(red) at 500V DC.

7. Dielectric Strength:

  • No damage should at 500 VAC for 60 second , measured with 5mA trip current between
    housing and positive end of lead wire.

8. Locked Rotor Protection:

  • No damage shall be found after 72 hours continuously at condition of rotation locked,
    Restarting is automatic as soon as constraint to running has been released

9. Polarity Protection:

High Efficiency Waterproof Computer Case Cooling Fans High TemperatureHigh Efficiency Waterproof Computer Case Cooling Fans High TemperatureHigh Efficiency Waterproof Computer Case Cooling Fans High Temperature

  • No damage shall be found with reverse connection 5 minute at rated voltage. After returning
    to normal polarity, all function shall be normal

10.Specification:

Model

Rated voltage

Operating

Voltage Range

Current

Amp

Rated

Input

Power

Speed

Max Air Flow

Max

Static

Pressure

Noise Level

Weight

(v)

(v)

(Amp)

(Watt)

(rpm)

(CFM)

(Inch-H2O)

(dB-A)

(g)

MX12038ZBH1

12

7.0 to 13.8

2.50

30.00

4000

193.50

0.67

60

289

MX12038ZBM1

12

7.0 to 13.8

1.60

19.20

3500

173.33

0.54

55

289

MX12038ZBL1

12

7.0 to 13.8

1.00

12.00

3000

145.98

0.39

50

289

MX12038ZBU2

24

14.0 to 27.6

2.00

48.00

4000

222.31

0.86

64

289

MX12038ZBH2

24

14.0 to 27.6

1.00

24.00

4500

193.50

0.67

60

289

MX12038ZBM2

24

14.0 to 27.6

0.70

16.80

3500

173.33

0.54

55

289

MX12038ZBL2

24

14.0 to 27.6

0.50

12.00

3000

145.98

0.39

50

289

MX12038ZBU4

48

28.0 to 56.0

1.00

48.00

4500

222.31

0.86

64

289

MX12038ZBH4

48

28.0 to 56.0

0.60

28.80

4000

193.50

0.67

60

289

MX12038ZBM4

48

28.0 to 56.0

0.50

24.00

3500

173.33

0.54

55

289

MX12038ZBL4

48

28.0 to 56.0

0.40

19.20

3000

145.98

0.39

50

289

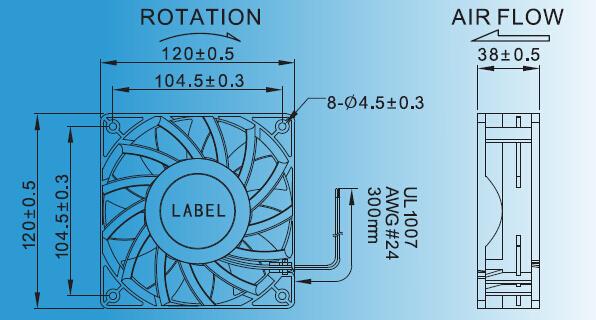

11.Dimensions:

High Efficiency Waterproof Computer Case Cooling Fans High Temperature

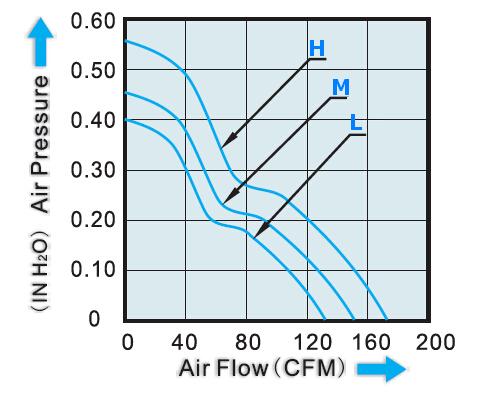

12.Curve Performance:

High Efficiency Waterproof Computer Case Cooling Fans High Temperature
