Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX4020GB(S)H5
Certification :
CE / ROSH
Place of Origin :
China
MOQ :
200pcs
Price :
US$2.00/PCS-US5.00/PCS
Supply Ability :
20,000/DAY
Packaging Details :
CARTON BOX
Payment Terms :
T/T / PAYPAL
Delivery Time :
5-8 days
Material :
Plastic
color :
Black
Bearing type :
Dual Ball Bearing Or Sleeve Bearing
Rated Voltage :
4.5-5.5V
Leadwire :
Red Wire Positive ( + ),Black Wire Negative ( - )
Applicating :
computer / tablet pc
Description

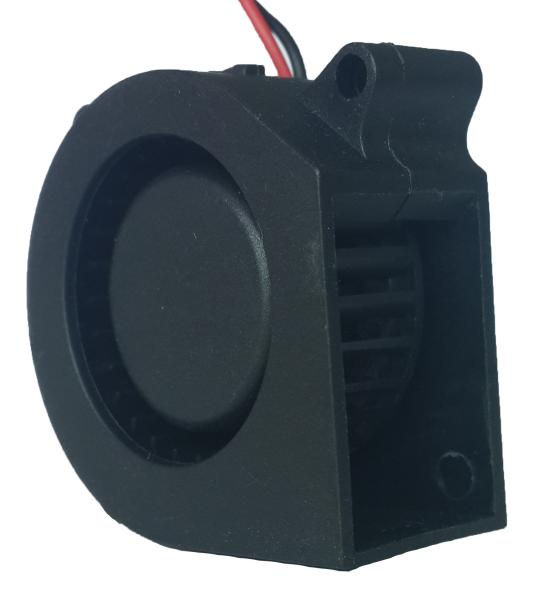

Plastic 12 Volt Blower Fan / Small Power Supply Exhaust Fan

40mm x 40mm x 20mm DC Blower Fan , low noise and long life expectancy , are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .


Description ;
● Various Size
● High speed , Middle speed , Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied .


A : Specifications :

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM mm-H2O dB-A g
MX4020GB(S)H5 B.S 5 4.5-5.5 0.32 1.60 6000 3.80 6.90 30 24
MX4020GB(S)M5 B.S 5 4.5-5.5 0.23 1.15 4500 3.10 5.10 25 24
MX4020GB(S)L5 B.S 5 4.5-5.5 0.14 0.70 3000 2.20 3.00 21 24
MX4020GB(S)H1 B.S 12 10.8-13.2 0.15 1.80 6000 3.80 6.90 30 24
MX4020GB(S)M1 B.S 12 10.8-13.2 0.11 1.32 4500 3.10 5.10 25 24
MX4020GB(S)L1 B.S 12 10.8-13.2 0.08 0.96 3000 2.20 3.00 21 24
MX4020GB(S)H2 B.S 24 21.6-26.4 0.09 2.16 6000 3.80 6.90 30 24
MX4020GB(S)M2 B.S 24 21.6-26.4 0.07 1.68 4500 3.10 5.10 25 24


B : ( Main Materials , Parts Specification ) :

Bearing

■( Dual Ball Bearing )

□

( Sleeve Bearing )

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red ( + )

■

Black ( - )

□

Blue ( PWM )

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 300±10mm

Connector

No

Tube

No



C: Electrical Specification:

ITEM

Specification . Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire ( + ) and frame at 500VAC /min

Special Function

□

Soft Start
5s ( 0 to Max speed )

□

Current Limiter



Dimensions (Unit:mm)
Plastic 12 Volt Blower Fan / Small Power Supply Exhaust Fan / Heat - resistant / Waterproof
