20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow
20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow
20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow
20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow
Specifications
Brand Name :
MX
Model Number :
MX2008GNH5
Certification :
CE UL ROHS
Place of Origin :
GUANGDONG / CHINA
MOQ :
2000pcs
Price :
USD + 1 / 5 + Piece
Payment Terms :
Western Union, T/T , PayPal
Supply Ability :
10000 + Piece + A Day
Delivery Time :
7 - 10 Working Days
Packaging Details :
Carton Box
Color :
Black
Frame and Imoeller :
P . B . T
Bearing Type :
Axially - Grooved Bearing
Voltage :
3 . 3V / 5 . 0V
Expected Life :
20000 hours
Speed :
11000 / 7500 RPM More or Less 15%
Air Flow :
0 . 45 / 0 . 66CFM
Noise Level :
10 / 14dBA
Rated Current :
55 / 75 mA More or Less 10%
Weight :
2 . 9G
Description

20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow

20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow

20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow

(Specification and Features)

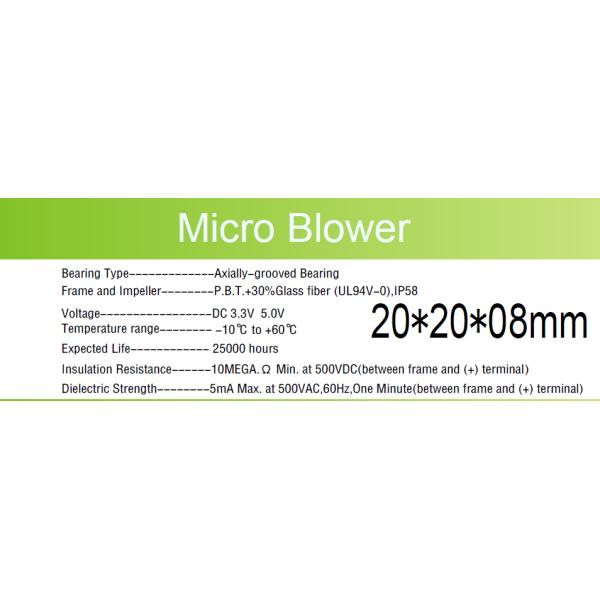

SPECIFICATION 　 　
Model Number MX2008GNH5
Product Name Micro Blower
Rated Voltage (VDC) 3 . 3V 5V
Operating Voltage (VDC) 2 . 8v - 5 . 5V
Rated Current (mA) 90 ± 10% 130 ± 10%
Rotation Speed (RPM) 7500 ± 15% 11000 ± 15%

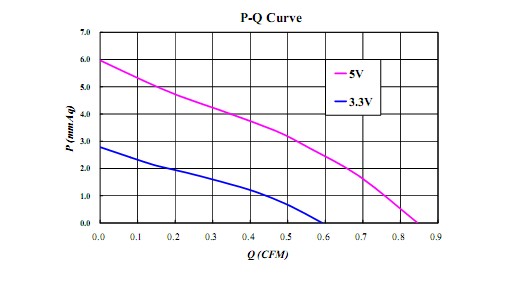

Air Flow (CFM) 0 . 45 0 . 66
Static Pressure (mmAq) 55 75
Noise (dB(A)) at 1m 10 14
Insulation Resistance 10MEGA. Ω Min. at 500VDC (between frame and (+) terminal)
Dielectric Strength 5mA Max. at 500VAC , 60Hz , One Minute (between frame and (+) terminal)
Life Expectancy (hours) 25,000 at 45
IP Rating IP58
Compliance CE , RoHS
Weight (g) 2 . 9
Protection Lock rotor Polarity

Specifications subject to changes without notice.

Operating Temperature : -10℃ - +60℃

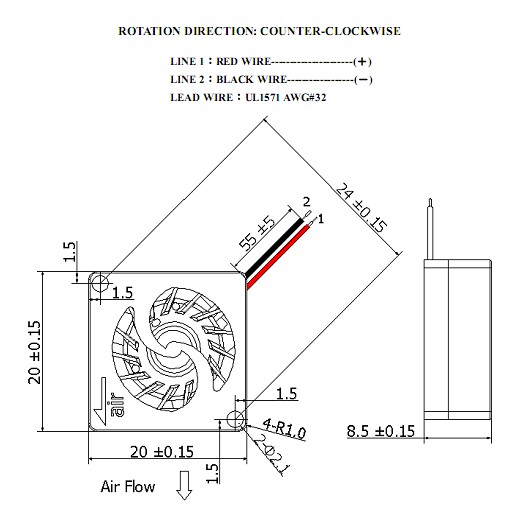

(Main Parts and Materials List)
Name of Part Material
Frame P.B.T.+30% Glass fiber (UL94V-0)
Spacer Mylar
Bearing Cu-based composite powder
IC Hall IC N/A
PCB Glass epoxy
Surface-mounted Coil UEW copper wire Aluminum oxide
Fan Blade P.B.T.+30% Glass fiber (UL94V-0)
Shaft SUS 420F
Yoke SUS430
Magnet Rare earth magnet
Cover P.B.T.+30% Glass fiber (UL94V-0)
Position plate SUS430
Lead-wire set UL1571 AWG#32 Tin-coated copper
Label Matte metallized polyester

20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow

20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow

Integrated Monitoring Software/Hardware

20mm Micro Lightweight DC Blower Fan 0 . 45 / 0 . 66CFM Air Flow

Competitive Advantage:

* Qualified, cost effective and easily operated

* Small in shape, have compact structure

* UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery
