High Speed Explosion Proof Exhaust Fan , AC220V Bathroom Exhaust Fan 50 / 60hz
High Speed Explosion Proof Exhaust Fan , AC220V Bathroom Exhaust Fan 50 / 60hz
Specifications
Brand Name :
MX
Model Number :
MX12038ABH22
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40000pcs per month
Delivery Time :
7 - 10 working days after received your payment
Packaging Details :
carton
Voltage :
110 V 120 V 220 V 240 V 380 V
Frequency :
50 / 60 hz
Power Consumption :
6 / 7W
Weight :
150g
Motor :
Brushless Type
Size :
120mm X 120mm X 38mm
Description

High Speed 120mm X 120mm X 38mm Explosion Proof Exhaust Fan , AC220V Fridge Cooling Fan

120mm X 120mm X 38mm AC fan , low noise and long life expectancy , are widely used in network communications , as well as industrial production equipment , medical equipment , home appliances , etc .

Description :

  • 110 / 120V 220 / 240V AC FAN , used for cooling and ventilation.
  • Frame : Aluminum ADC - 12 , Painted Black
  • Blade : metal
  • Stator & Rotor : Silicon steel
  • Magnet Wires : Copper 1 PEW
  • Bobbin : PA - 66 UL 94 V - 0
  • Bearing Type : Ball Bearing

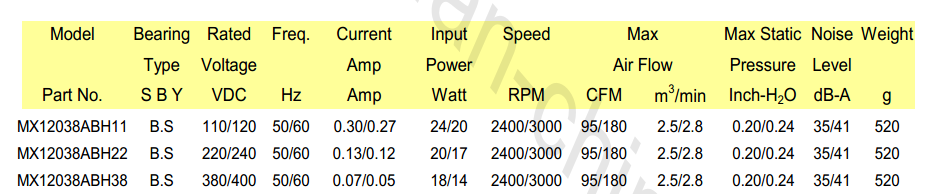

Specification :

High Speed Explosion Proof Exhaust Fan , AC220V Bathroom Exhaust Fan 50 / 60hz

Environmental Specification :

Item

Specification / Condition

01

Operating Temp . Range

Temperature : - 20 ℃ ~ 75 ℃

Humidity : 20 % ~ 85 % RH

02

Storage Temperature

Temperature : - 30 ℃ ~ 140 ℃

Humidity : 20 % ~ 95 % RH

03

Life

50000H

Main Materials / Parts Specification :

Item

Specification

01

Blade

( PBT ) PBT + 15 % GF

02

Frame

Aluminum ADC - 12 , Painted Black

03

Stator & Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA - 66 UL 94 V - 0

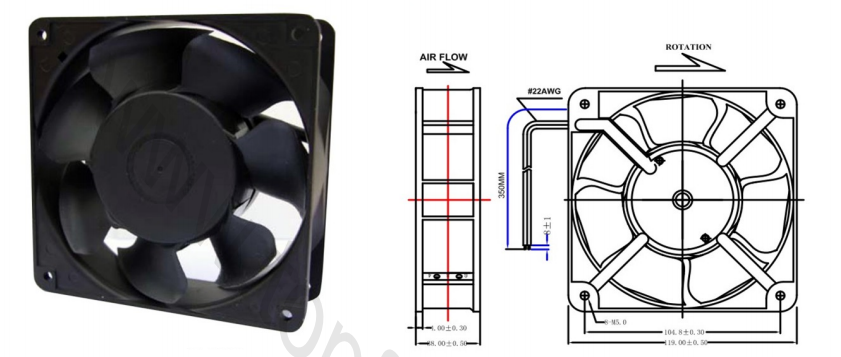

Dimension :

High Speed Explosion Proof Exhaust Fan , AC220V Bathroom Exhaust Fan 50 / 60hz

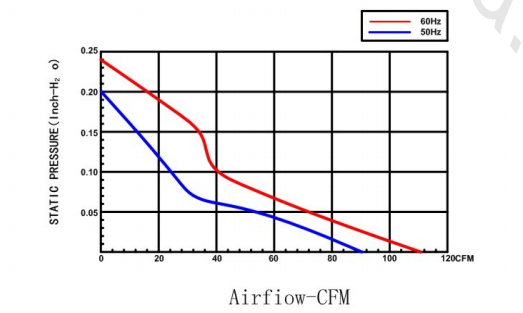

Fan Performance Curve

High Speed Explosion Proof Exhaust Fan , AC220V Bathroom Exhaust Fan 50 / 60hz
