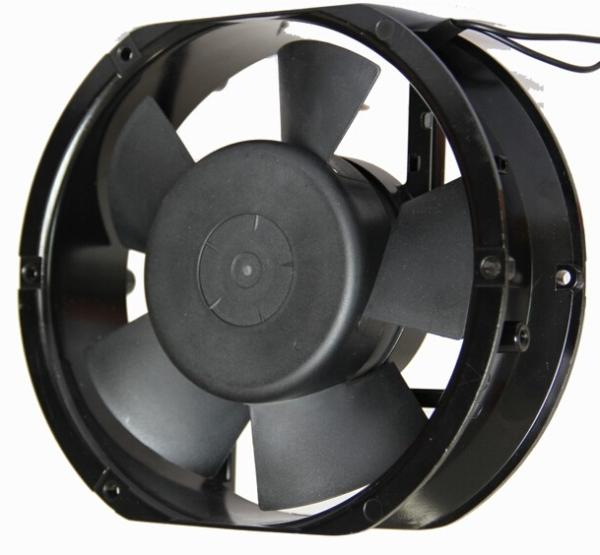

Industrial Cooler Exhaust Fan 6.8 Inch Electric 220v Axial AC Fan
Industrial Cooler Exhaust Fan 6.8 Inch Electric 220v Axial AC Fan
Industrial Cooler Exhaust Fan 6.8 Inch Electric 220v Axial AC Fan
Industrial Cooler Exhaust Fan 6.8 Inch Electric 220v Axial AC Fan
Specifications
Brand Name :
MX,ODM,OEM
Model Number :
MX17251ABH22
Certification :
CE/ROHS/UL
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton box
Size :
172mm × 150mm × 51mm
Voltage :
110V-120V / 220V-240V
Power Consumption :
44/35W
Air Flow :
200/190CFM
Speed :
2500/2900RPM
Material :
Frame: Aluminum, Blade:PBT
Description

Industrial Cooler Exhaust Fan 6.8 Inch Electric 220v Axial AC Fan

Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.


Description:

  • 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:Plastic
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0



Model:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight

Part

No.

 S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX17251 ABH11 B 110/120 50/60 0.44/0.46 30/37 2500/2100 200/187 5.4/6.0 0.55/0.5 53/48 900
MX17251 ABH22 B

220

/240

 50/60 0.26/0.28 44/35 2500/2200 200/190 5.4/6.0 0.55/0.5 43/48 900
MX17251 ABH38 B 380/400 50/60 0.15/0.13 38/35 2500/2200 200/190 5.4/6.0 0.55/0.5 53/48 900

Dimensions( Unit:mm)

Industrial Cooler Exhaust Fan 6.8 Inch Electric 220v Axial AC Fan

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Quality:

1. 100 % testing before the fan leave our factory

2. Good after services to every customer

3. We often give one-three years warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.

FAQ:

1 What are kinds of cooling fan or centrigugal fan supplied by your company?

Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.

2 What are kinds of information provided by the customer before inquiry?

Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.

3 How many types bearing of our cooling fan are there in our compnay at present?

Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.

4 How to detect the data of cooing fan in your company?

Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.

5 How to control the quanlity of products in your company.

Answer: 100% total testing before each of fan leaves our factory.
