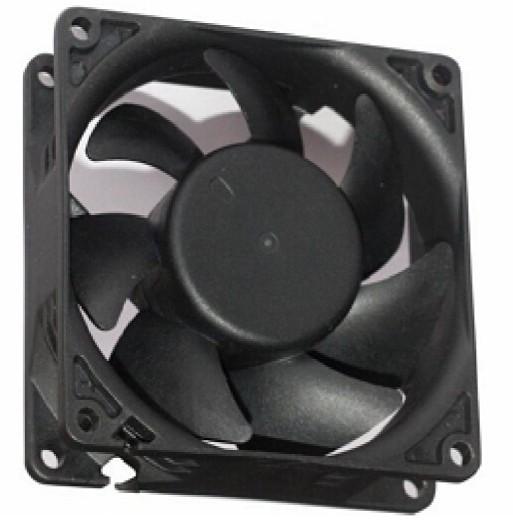

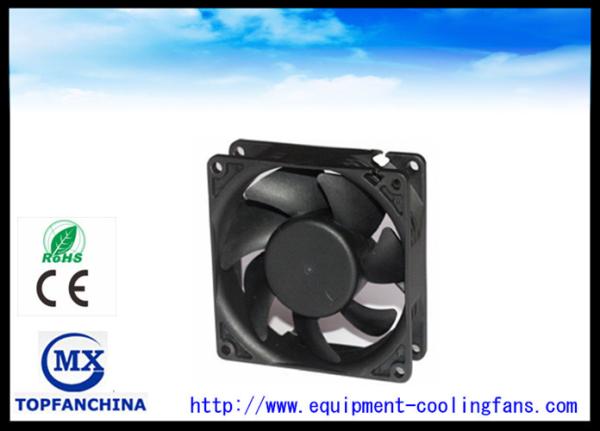

3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor
3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor
3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor
3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor
Specifications
Brand Name :
Topfan / OEM/ODM
Model Number :
MX12038ABH**
Certification :
CE ROHS UL
Place of Origin :
China
MOQ :
500pcs
Price :
USD + 1 / 10 + Piece
Payment Terms :
Western Union, T/T
Supply Ability :
100000 + Piece + A Week
Delivery Time :
7 - 10 working days
Packaging Details :
Carton box
Color :
Black
Speed :
3500RPM- 2500RPM
Bearing Type :
Ball Bearing / Sleeve Bearing
Watt :
9.5W / 4.2w
Air Volume :
144.21 CFM - 101.85 CFM
Current :
0.22/0.27A
Noise :
21-35dB-A
Weight :
95
Description

3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor

Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.


Description:

  • 110V-120V , 220V-240V EC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:Plastic
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: 94V-0 fireproof, metal frame and plastic impeller
  • Bearing Type: Ball Bearing or Sleeve Bearing


Expected Life :

1 . Ball Bearing 50,000 hours ( 40°c )

2 . Sleeve Bearing 30,000 hours ( 40°c )

Allowable Ambient Temperature Range

1 . - 10 °c ~ +70 °c ( Operating )

2 . - 40°c ~ + 70°c ( Storage )

3 . ( non - condensing environment )

Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H , 30000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

Specifications:

Model Bearing Type Rated Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
　 　
Part No. B.S VAC&VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12038ABH** B 100-240 0.18 9.50 3500 144.21 4.08 0.50 124.46 33.00 285.00
MX12038ABM** B 100-240 0.12 6.20 3000 115.29 3.27 0.34 84.63 27.00 285.00
MX12038ABL** B 100-240 0.08 4.20 2500 101.85 2.88 0.26 64.72 24.00 285.00

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Dimensions:

3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor

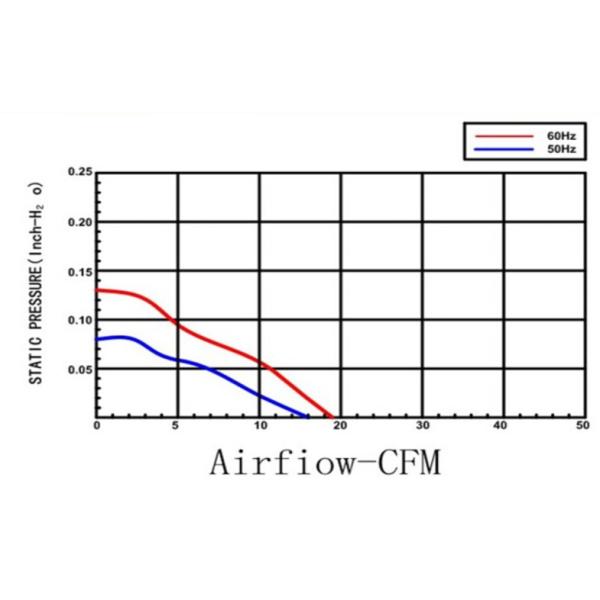

Fan Performance Curve :

3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor

FAQ

1.How about the lifetime about fan?

Life Expectancy:

Dual Ball Bearing: 50000 hours

Sleeve Bearing: 30000 hours

Hydraulic Bearing: 30000 hours

2.What effects the quoted price for the fan?

The specification(size),bearing type and voltage.

3.Delivery time?

Sample lead time:3-5 days

Delivery lead time:2 weeks

4.Payments of terms ?

Payment by T/T.

100% payment for sample orders .

30% deposit and 70% balance at BL.

5.Delivery ways ?

Carrier for samples such as FedEx, DHL ,UPS,TNT Door to Door service . Bulk by Air ,By Sea ,etc.

Workshop:

3.2 Inch EC Axial Fan / AC TO DC Save Energy Fan 80mm x 80mm x 25mm / EC Motor
