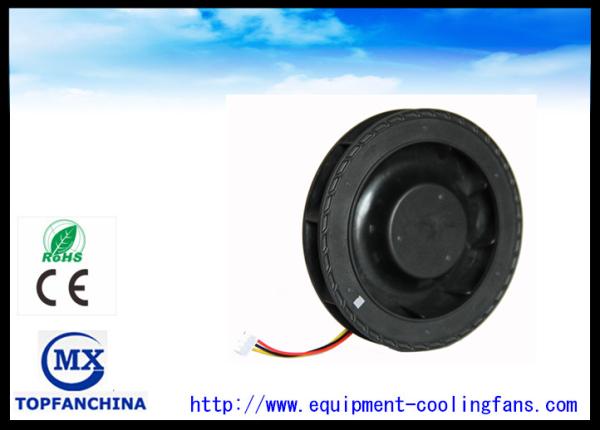

Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm
Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm
Specifications
Brand Name :
MX/OEM/ODM
Model Number :
MX12025GB(S)H1 / MX12025GB(S)H2
Certification :
CE/ROSH/UL
Place of Origin :
China
MOQ :
200pcs
Price :
US$5.00/PCS-US12.00/PCS
Supply Ability :
20,000/DAY
Packaging Details :
CARTON BOX
Name :
120 ×25mm DC Centrifugal Fan
Bearing type :
Dual Ball Bearing
Speed :
4000/5400rpm
Air Flow :
61.2/85.5CFM
Frame and Impeller :
Plastic (94V-0),PBT
Function Range :
FG RD PWM IP66 IP68 IP58
Voltage :
12V / 24V / 48V
Weight :
180g
Description


Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm


Industry: car air purifier, home air purifier, electronic product, communication power supply,
car ventilation products, lampblack machine, deodorization, purification products.

Description:

● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 7 blades or 9 blades
● 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.


Applications

  • Ventilation Equipment & System
  • Heating Equipment & System
  • Air Conditioner
  • Refrigeration equipment
  • MDBS(Mobile Data Base Station)
  • Telecom power supply station




A: Specifications:

ModelBearing TypeRated VoltageOperating VoltageInput CurrentInput PowerSpeedMax Air Flow Max Static PressureNoiseWeight
Part No.B.SVDCVDCAmpWattRPMCFMm3/minInch-H2OpadB-Ag

MX12025
GB(S)H1

B.S127.0-13.80.647.68540085.502.432.55634.9550.00232

MX12025
GB(S)M1

B.S127.0-13.80.607.20400050.601.441.91475.5946.00232

MX12025
GB(S)H2

B.S2414.0-27.60.6415.36540085.502.432.55634.9550.00232

MX12025
GB(S)M2

B.S2414.0-27.60.6014.40400056.101.591.91475.5946.00232

MX12025
GB(S)H4

B.S4828.0-56.00.6430.72540085.502.432.55634.9550.00232

MX12025
GB(S)M4

B.S4828.0-56.00.6014.40400061.201.741.91475.5946.00232

B: (Main Materials, Parts Specification):

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No



C: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



Dimensions (Unit:mm)
Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm



Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm
Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm
Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm
Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm
Portable 120mm Round 12v 24v 48v DC Centrifugal Fan 120mm X 25mm
