Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
LRD50350A12
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
US$8 - 12
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
50x350mm DC Cross Flow Fan
Voltage :
12V / 24V
Frame :
Iron
Impeller :
Aluminum
Bearing Type :
Ball Bearing
Speed :
2300rpm
Description

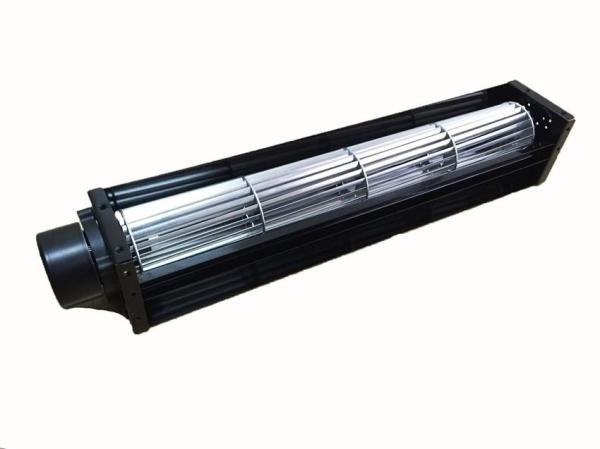

Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation

12V 50x350mm Cross Flow Fan, high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.

Our cross flow fans, also named as tangential or blower wheel fans will generate a wide, even flow of air parallel to the unit being cooled, insuring greater efficiencies and lower noise ratios compared to axial fans.

Specification

Model Size(mm) Rated voltage (v) Rated Current (A) Speed (rpm)

Max Static Pressure

(mmAq)

Air Flow (m3/mim) Air flow (CFM) Noise Leve (dB-A)

Weight

(g)

A B C D
LRD50090A12 98 108 143 50 12 0.22 2800 3.3 0.9 32 39 320
LRD50090A24 24 0.12 39
LRD50190A12 198 208 260 50 12 0.60 2500 4.3 2.5 88 46 600
LRD50190A24 24 0.40 46
LRD50290A12 298 308 360 50 12 0.65 2400 4.0 3.5 124 46 700
LRD50290A24 24 0.40 46
LRD50350A12 358 368 420 50 12 0.75 2300 3.6 3.7 131 45 770
LRD50350A24 24 0.45 45
LRD50420A12 420 430 474 50 12 0.80 2000 3.2 4.0 145 46 850
LRD50420A24 24 0.50 46

Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation

Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation

Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation
