Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing
Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing
Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing
Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing
Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing
Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing
Specifications
Brand Name :
MX
Model Number :
MX15051ABH22
Certification :
CE ROHS UL
Place of Origin :
GuangDong / China
MOQ :
500pcs
Price :
USD + 1 / 10 + Piece
Payment Terms :
Western Union, T/T
Supply Ability :
100000 + Piece + A Week
Delivery Time :
7 - 10 working days
Packaging Details :
Carton box
Color :
Black
Size :
150x150x51mm
Voltage :
110V 220V
Bearing Type :
Ball Bearing
Watt :
30 / 37W
Air Volume :
187 / 200CFM
Description

Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan 150mm

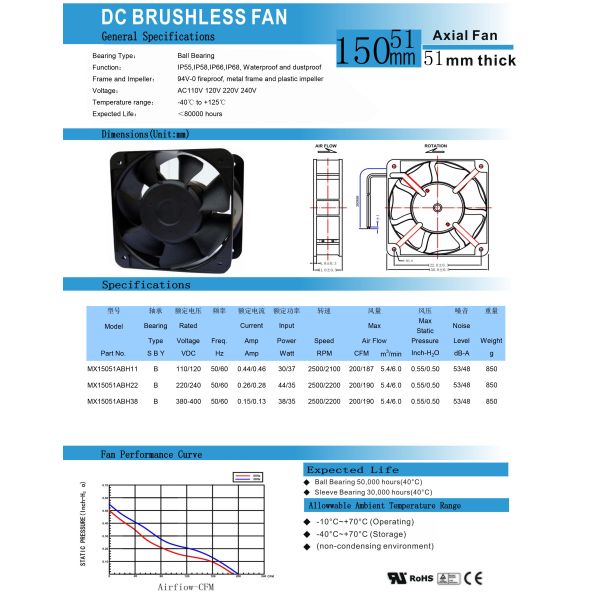

Specifications:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX15051ABH11 B 110/120 50/60 0.44/0.46 30/37 2500/2100 200/187 5.4/6.0 0.55/0.50 53/48 850
MX15051ABH22 B 220/240 50/60 0.26/0.28 44/35 2500/2200 200/190 5.4/6.0 0.55/0.50 53/48 850
MX15051ABH38 B 380-400 50/60 0.15/0.13 38/35 2500/2200 200/190 5.4/6.0 0.55/0.50 53/48 850

Expected Life :

1 . Ball Bearing 50,000 hours ( 40°c )

2 . Sleeve Bearing 30,000 hours ( 40°c )

Allowable Ambient Temperature Range

1 . - 10 °c ~ +70 °c ( Operating )

2 . - 40°c ~ + 70°c ( Storage )

3 . ( non - condensing environment )

Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing

Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing

Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing

Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing

Axial Flow Fan 150mm x 150mm x 51mm with High Temperature AC Axial fan Dual Ball Bearing

WE FOCUS ON HIGH QUALITY AND GOOD SERVICE

Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates production , research , development and sales . It has 3000 flat plant and professional design and production team . At present , the company has production development department , Q & C department , R & D department , the domestic sales department and overseas sales department .
In order to protect the customer ` s rights and interests , all the products were tested strictly and repeatedly before being put on the market . According to the customer ’ s different requirements , we can do the following tests of fan : wind tunnel test , vibration test , noise test , drop test , salt spray test , waterproof test , dust test , cycle test of high and low temperature , life testing , simulation test of high altitude low voltage, and ten items tested ROHS .

Samples delivery time is 7 working days . (2-3 samples of some conventional fans can be provided .)
Fans quantity : 1K - 5K , the delivery time is 7-10 working days ;
Fans quantity : over 5K , the delivery time is 15-20working days .
Depending on the different type of fan and quantity, there will be different delivery dates, please ask Mona for details .
International express:UPS/DHL/FEDEX and so on .
