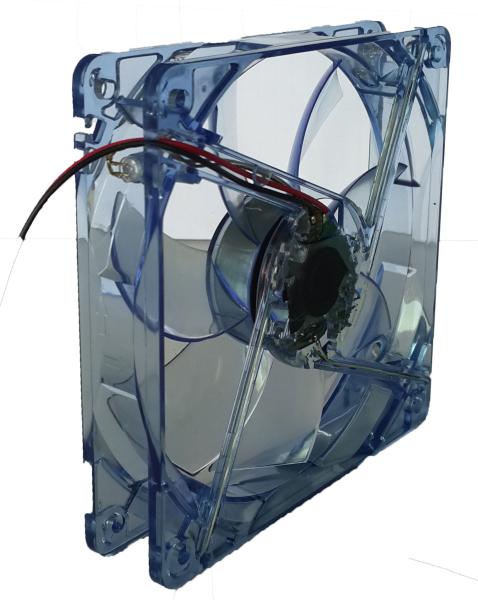

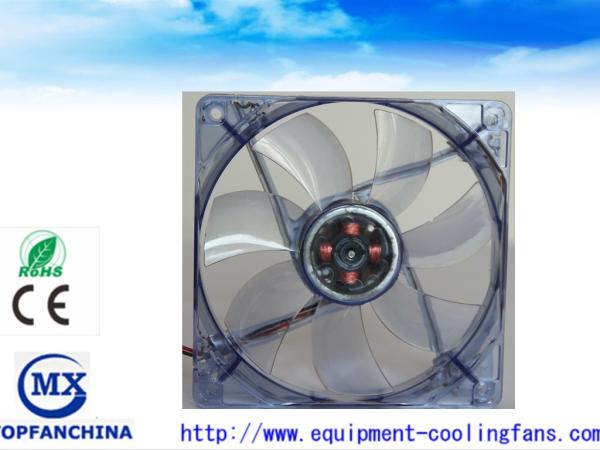

Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm
Applications:
Topfan's brushless axial dc fan 120mm 4.7inch, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Detailed Product Description:
Specifications:
Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
MX12025AB(S/Y)U1 | B.S.Y | 12 | 7.0-13.8 | 0.80 | 9.60 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
MX12025AB(S/Y)H1 | B.S.Y | 12 | 7.0-13.8 | 0.50 | 6.00 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
MX12025AB(S/Y)M1 | B.S.Y | 12 | 7.0-13.8 | 0.40 | 4.80 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
MX12025AB(S/Y)L1 | B.S.Y | 12 | 7.0-13.8 | 0.20 | 2.40 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
MX12025AB(S/Y)U2 | B.S.Y | 24 | 14.0-27.6 | 0.50 | 12.00 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
MX12025AB(S/Y)H2 | B.S.Y | 24 | 14.0-27.6 | 0.40 | 9.60 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
MX12025AB(S/Y)M2 | B.S.Y | 24 | 14.0-27.6 | 0.25 | 6.00 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
MX12025AB(S/Y)L2 | B.S.Y | 24 | 14.0-27.6 | 0.15 | 3.60 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
MX12025AB(S/Y)U4 | B.S.Y | 48 | 28.0-56.0 | 0.40 | 19.20 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
MX12025AB(S/Y)H4 | B.S.Y | 48 | 28.0-56.0 | 0.30 | 14.40 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
MX12025AB(S/Y)M4 | B.S.Y | 48 | 28.0-56.0 | 0.20 | 9.60 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
MX12025AB(S/Y)L4 | B.S.Y | 48 | 28.0-56.0 | 0.10 | 4.80 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
Competitive Advantage:
*Qualified, cost effective and easily operated
*Small in shape, have compact structure
*UL, CE, Rohs, CUL, CCC
* Competitive Pricing
* Keep Investing and Developing In New Products
* The Most Advanced Testing and Measuring Equipment
* On-Time Delivery
