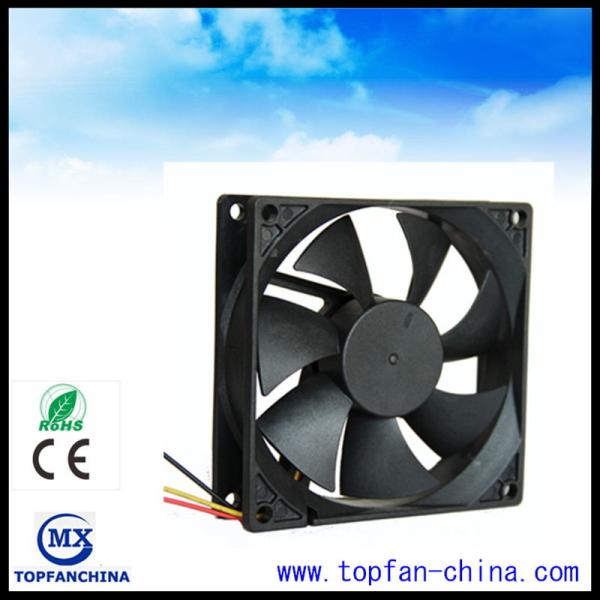

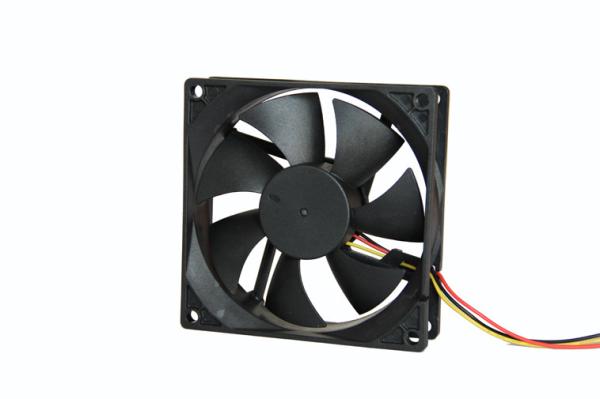

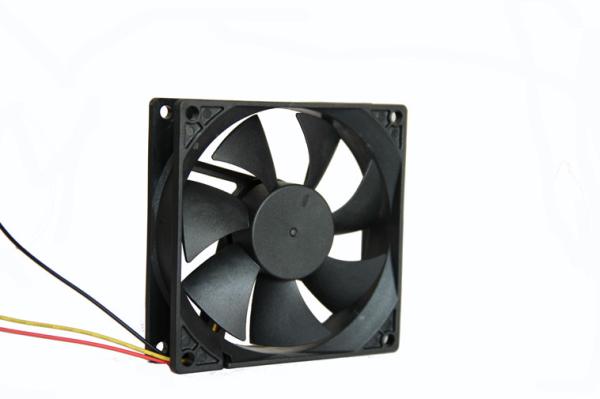

92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan
92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan
92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan
92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan
92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan
92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan
Specifications
Brand Name :
MX / ODM / OEM
Model Number :
MX9225ABU1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD 0.80 - USD 3.40 or Negotiable
Payment Terms :
T/T / PAYPAL
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX9225A Series
Voltage :
12V - 48V (Customizable)
Power Consumption :
2.4 - 19.2 W (Customizable)
Air Flow :
30.96 - 63.73 CFM (Customizable)
Speed :
2000 - 4000RPM (Customizable)
Bearing Type :
Ball Bearing / Hydraulic Bearing / Sleeve Bearing
Description

92mm x 92mm x25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan


1 . Description :

  • 92mm x 92mm x 25mm DC Axial Fan , DC Burshless Fan , Computer Fan , DC Cooling Fan

2 . Material :

  • Frame : Plastic ( UL94V-0 )
  • Impeller : Plastic ( UL94V-0 )
  • Leadwire : UL1007 AWG#26 or Equivalent ( + ) : Red ( - ) : Black

3 . Protection :

  • Motor : Impedance Protected and Reverse Polarity Protected

4 . Expected Life :

  • Ball bearing : 50 , 000 hours ( 40℃ )
  • Hydraulic Bearing : 40 , 000 hours ( 40℃ )
  • Sleeve Bearing : 30 , 000 hours ( 40℃ )

5 . Allowable Ambient Temperature Range :

  • Operating Temperature : -10℃~+70℃
  • Storage Temperature : -40℃~+70℃
  • Non Condensing Environment

6 . Insulation Resistance :

  • Not less than 10M ohm between housing and positive end of lead wire(red) at 500V DC .

7 . Dielectric Strength :

  • No damage should at 500 VAC for 60 second , measured with 5mA trip current between
    housing and positive end of lead wire .

8 . Locked Rotor Protection :

  • No damage shall be found after 72 hours continuously at condition of rotation locked ,
    Restarting is automatic as soon as constraint to running has been released

9 . Polarity Protection :

  • No damage shall be found with reverse connection 5 minute at rated voltage . After returning
    to normal polarity , all function shall be normal

10 . Specification :

Model Rated voltage

Operating

Voltage Range

Current

Amp

Rated

Input

Power

 Speed Max Air Flow

Max

Static

Pressure

 Noise Level Weight
( v ) ( v ) ( Amp ) ( Wat) ( rpm) (CFM) (Inch-H2O) ( dB-A) ( g )
MX9225AB(S/Y)U1 12 7.0 to 13.8 0.60 7.20 4000 63.73 0.22 47 78
MX9225AB(S/Y)H1 12 7.0 to 13.8 0.50 6.00 3500 54.98 0.18 41 78
MX9225AB(S/Y)M1 12 7.0 to 13.8 0.40 4.80 3000 46.23 0.13 37 78
MX9225AB(S/Y)L1 12 7.0 to 13.8 0.30 3.60 2500 37.93 0.09 31 78
MX9225AB(S/Y)D1 12 7.0 to 13.8 0.20 2.40 2000 30.96 0.06 25 78
MX9225AB(S/Y)U2 24 14.0 to 27.6 0.50 12.00 4000 63.73 0.22 47 78
MX9225AB(S/Y)H2 24 14.0 to 27.6 0.40 9.60 3500 54.98 0.18 41 78
MX9225AB(S/Y)M2 24 14.0 to 27.6 0.30 7.20 3000 46.23 0.13 37 78
MX9225AB(S/Y)L2 24 14.0 to 27.6 0.20 4.80 2500 37.93 0.09 31 78
MX9225AB(S/Y)D2 24 14.0 to 27.6 0.15 3.60 2000 30.96 0.06 25 78
MX9225AB(S/Y)U4 48 28.0 to 56.0 0.40 19.20 4000 63.73 0.22 47 78
MX9225AB(S/Y)H4 48 28.0 to 56.0 0.25 12.00 3500 54.98 0.18 41 78
MX9225AB(S/Y)M4 48 28.0 to 56.0 0.20 9.60 3000 46.23 0.13 37 78
MX9225AB(S/Y)L4 48 28.0 to 56.0 0.15 7.20 2500 37.93 0.09 31 78

11.Dimensions:

92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan


12.Curve Performance:

92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan

92mm x 92mm x 25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan / Indutrial Equipment Fan
