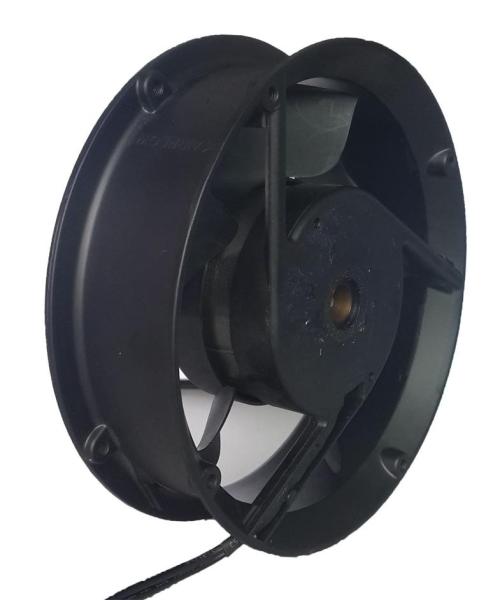

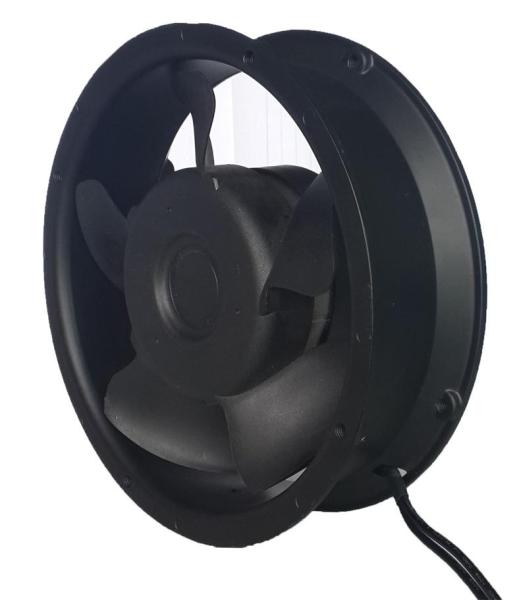

172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery
Specifications
Brand Name :
MX
Model Number :
MX17251ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton box
Product Name :
172mm × 51mm AC Brushless Fan
Voltage :
110V-120V / 220V-240V
Frequency :
50/60hz
Power Consumption :
44/35W
Air Flow :
200/190CFM
Speed :
2500/2900RPM
Description

172mm Round 220V - 240V AC Brushless Industrial Extractor Fan For Machinery


Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.


Description:

  • 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0



Model:

Size

(mm)

 Model Beaing system Rated voltage (v)

Freq

(HZ)

Current amp (Amp) Rated Input Power Watt Speed (rpm)

Air Flow

(CFM)

 Air Flow (m3/mim)

Max Static Pressure

(Inch-H2o)

 Noise Leve (dB-A)

Weight

(g)
172*51 M145CA1H Ball 110/120 50/60

0.44/

0.46

 30/37

2500/

2100

 200/187 5.4/6.0 0.55/0.5 53/48 900
M145CA2H Ball 220/240 50/60

0.26/

0.28

 44/35

2500/

2200

 200/190 5.4/6.0 0.55/0.5 53/48 900
M145CA3H Ball 380/400 50/60

0.15/

0.13

 38/35

2500/

2700

 200/190 5.4/6.0 0.55/0.5 53/48 900

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery
