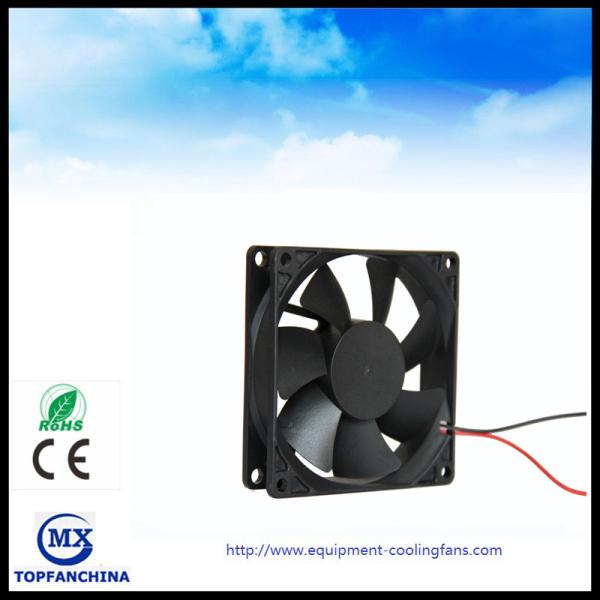

3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
Specifications
Brand Name :
MX / ODM / OEM
Model Number :
MX8020ABU1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD 0.80 - USD 3.40 or Negotiable
Payment Terms :
T/T
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX8025A Series
Voltage :
12V - 48V ( Customizable )
Power Consumption :
1.2 - 14.4 W ( Customizable )
Air Flow :
27.39 - 54.14 CFM ( Customizabl e)
Speed :
2000 - 4000RPM ( Customizable )
Bearing Type :
Ball Bearing / Hydraulic Bearing / Sleeve Bearing
Description

3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm × 80mm × 25mm


1 . Description ;

  • 80mm x 80mmx 80mm , DC Burshless Fan , DC Axial Fan , Computer Fan , DC Cooling Fan

2 . Material ;

  • Frame ; Plastic( UL94V-0 )
  • Impeller ; Plastic( UL94V-0 )
  • Leadwire ; UL1007 AWG#26 or Equivalent ( + ) ; Red ( - ) ; Black

3 . Protection ;

  • Motor ; Impedance Protected and Reverse Polarity Protected

4 . Expected Life ;

  • Ball bearing ; 50 , 000 hours ( 40℃ )
  • Hydraulic Bearing ; 40 , 000 hours ( 40℃ )
  • Sleeve Bearing ; 30 , 000 hours ( 40℃ )

5 . Allowable Ambient Temperature Range ;

  • Operating Temperature ; -10℃~+70℃
  • Storage Temperature ; -40℃~+70℃
  • Non Condensing Environment

6 . Insulation Resistance ;

  • Not less than 10M ohm between housing and positive end of lead wire(red) at 500V DC .

7 . Dielectric Strength ;

  • No damage should at 500 VAC for 60 second , measured with 5mA trip current between
    housing and positive end of lead wire .

8 . Locked Rotor Protection ;

  • No damage shall be found after 72 hours continuously at condition of rotation locked ,
    Restarting is automatic as soon as constraint to running has been released

9 . Polarity Protection ;

  • No damage shall be found with reverse connection 5 minute at rated voltage . After returning
    to normal polarity , all function shall be normal

10 . Specification ;

Model

Rated Voltage

Operating

Voltage Range

Current

Amp

Rated Input

Power

Speed

Max Air Flow

Max Static

Pressure

Noise Level

Weight

( v )

( v )

( Amp )

( Watt )

( rpm)

( CFM)

(Inch-H2O)

( dB-A )

(g)

MX8025AB(S)U1

12

7.0 to 13.8

0.50

6.00

4000

54.14

0.25

40

58

MX8025AB(S)H1

12

7.0 to 13.8

0.40

4.80

3500

50.35

0.22

36

58

MX8025AB(S)M1

12

7.0 to 13.8

0.30

3.60

3000

39.98

0.14

31

58

MX8025AB(S)L1

12

7.0 to 13.8

0.20

2.40

2500

35.67

0.11

25

58

MX8025AB(S)D1

12

7.0 to 13.8

0.10

1.20

2000

27.39

0.07

22

58

MX8025AB(S)U2

24

14.0 to 27.6

0.40

9.60

4000

54.14

0.25

40

58

MX8025AB(S)H2

24

14.0 to 27.6

0.30

7.20

3500

50.35

0.22

36

58

MX8025AB(S)M2

24

14.0 to 27.6

0.20

4.80

3000

39.98

0.14

31

58

MX8025AB(S)L2

24

14.0 to 27.6

0.15

3.60

2500

35.67

0.11

25

58

MX8025AB(S)D2

24

14.0 to 27.6

0.10

2.40

2000

27.39

0.07

22

58

MX8025AB(S)U4

48

28.0 to 56.0

0.30

14.40

4000

54.14

0.25

40

58

MX8025AB(S)H4

48

28.0 to 56.0

0.25

12.00

3500

50.35

0.22

36

58

MX8025AB(S)M4

48

28.0 to 56.0

0.20

9.60

3000

39.98

0.14

31

58

MX8025AB(S)L4

48

28.0 to 56.0

0.15

7.20

2500

35.67

0.11

25

58

11.Dimensions:

3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm


12 . Curve Performance :

3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm

3D Printer 12V DC Axial Fan , CPU PWM Signal Cooling Fan 80mm x 80mm x 25mm
