40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
Specifications
Brand Name :
Topfan / OEM
Model Number :
MX40090CFM11
Certification :
CE / ROHS
Place of Origin :
SHENZHEN / CHINA
MOQ :
500 Pieces
Price :
USD + 1 TO 18 + Piece
Payment Terms :
T/T, Western Union
Supply Ability :
50000 + Pieces + A Week
Delivery Time :
10 - 12 Working Days
Packaging Details :
Carton Box
Frame And Impeller :
Aluminum Alloy
Rated Voltage :
110V 220V
Rated Frequency :
50Hz 60Hz
Input Power :
9 / 16W
Speed :
1800 / 3150RPM
Current Amp :
0 . 7 / 0 . 13A
Noise Level :
35 / 44dBA
Weight :
520 / 820g
Description

40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan



Applications :

1 . Our annual production for cross flow fan is over 5 million sets
2 . Widely applied in electric fireplace , air-cleaning , Industrial cooling , microwave , air conditioning , air curtain machine , heater and other related fields


Cross flow fan ø 40mm

ModelSize(mm) Beaing systemRated voltage (v) Freq (HZ) Current (Amp)Rated Input Power WattSpeed (rpm) Static Pressure mmAqMax Static Pressure (Inch-H2o)Noise Leve (dB-A)Weight (g)
ABC
MX40090CFM1198108160Ball110/12050/600.11931502.5138520
MX40090CFM22Ball220/24050/600.071127001.80.836
MX40150CFM11160170222Ball110/12050/600.121028002.71.438570
MX40150CFM22Ball220/24050/600.071126001.91.236
MX40240CFM11198208260Ball110/12050/600.121123502.81.435590
MX40240CFM22Ball220/24050/600.0712255021.436
MX40290CFM11300310366Ball110/12050/600.211622002.92.136720
MX40290CFM22Ball220/24050/600.091424002.12.438
MX40350CFM11348358422Ball110/12050/600.1313200032.241790
MX40350CFM22Ball220/24050/600.111422002.42.642
MX40420CFM11420430494Ball110/12050/600.111418003.22.443820
MX40420CFM22Ball220/24050/600.111518002.62.444

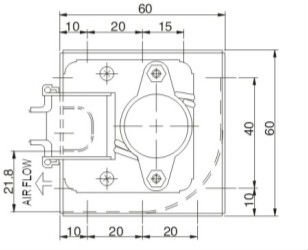

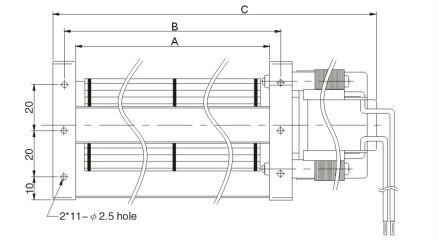

Dimension (Unit:mm)

40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan 40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan





Competitive Advantage :

* Qualified , cost effective and easily operated
* Small in shape , have compact structure
* UL , CE , Rohs , CUL , CCC
* Competitive Pricing
* Keep Investing and Developing In New Products
* The Most Advanced Testing and Measuring Equipment
* On - Time Delivery



About us :

  • We are manufacturer of high quality , cost effective , passed VDE , TUV , CCC , RoHS , certified AC / DC cross flow fans , ( voltages 110v – 120v & 220v -240v ) in AC capacitor and shaded pole motors . SP - motor also mean as Single - phase shading - pole asynchronous motor .
  • It is widely used in freezer , cooler box , refrigerator , microwave oven and series of fans .
  • Our cross flow fans , also named as tangential or blower wheel fans will generate a wide , even flow of air parallel to the unit being cooled , insuring greater efficiencies and lower noise ratios compared to axial fans .



40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
40mm AC Fan 110V / 220V for Electric Fireplace , Industrial Electric Cross Flow Fan
