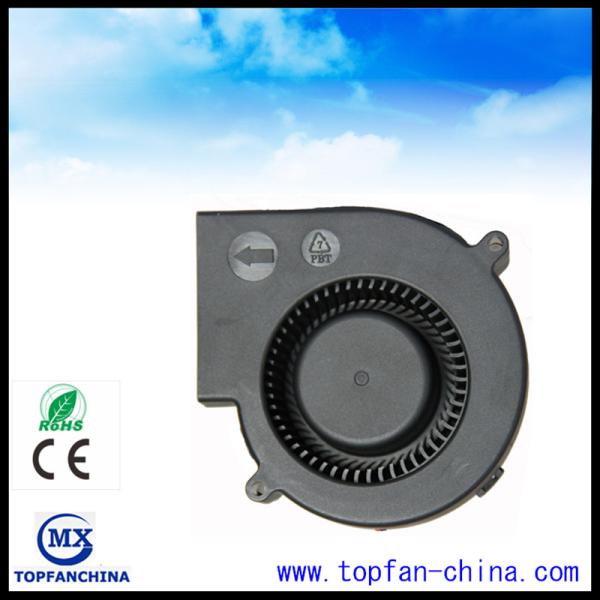

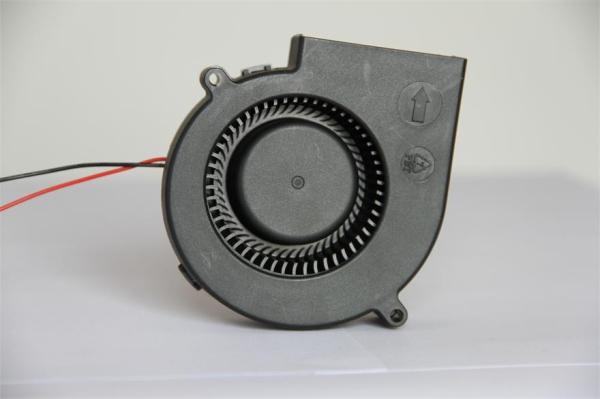

97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
Specifications
Brand Name :
MX/OEM/ODM
Model Number :
MX9733GB(S)U1
Certification :
CE/ROSH/UL
Place of Origin :
China
MOQ :
200pcs
Price :
US$2.00/PCS-US5.00/PCS
Supply Ability :
20,000/DAY
Packaging Details :
CARTON BOX
Product Name :
97 ×94 ×33 mm DC Centrifugal Fan
Bearing type :
Dual Ball Bearing Or Sleeve Bearing
Voltage :
12V , 24V
Leadwire :
Red Wire Positive(+),Black Wire Negative(-)
Current :
0.30-1.40A
Speed :
3000/4500rpm
Air Flow :
29.76CFM
Frame and Impeller :
Plastic (94V-0),PBT
Description

97mm High Air Flow DC Centrifugal Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch


Applications

  • Ventilation Equipment & System
  • Heating Equipment & System
  • Air Conditioner
  • Refrigeration equipment
  • MDBS(Mobile Data Base Station)
  • Telecom power supply station


Description:

● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.


A: Specifications:

ModelBearing TypeRated VoltageOperating VoltageInput CurrentInput PowerSpeedMax Air Flow Max Static PressureNoiseWeight
Part No.B.SVDCVDCAmpWattRPMCFMm3/minInch-H2OpadB-Ag
MX9733GB(S)U1B.S127.0-13.81.4016.80450029.760.841.35336.9657164
MX9733GB(S)H1B.S127.0-13.81.0012.00400026.620.751.15286.7553164
MX9733GB(S)M1B.S127.0-13.80.607.20350023.340.660.83206.3349164
MX9733GB(S)L1B.S127.0-13.80.404.80300019.710.560.53132.5945164
MX9733GB(S)U2B.S2414.0-27.61.0024.00450029.760.841.35336.9657164
MX9733GB(S)H2B.S2414.0-27.60.8019.20400026.620.751.15286.7553164
MX9733GB(S)M2B.S2414.0-27.60.5012.00350023.340.660.83206.3349164
MX9733GB(S)L2B.S2414.0-27.60.307.20300019.710.560.53132.5945164

B: (Main Materials, Parts Specification):

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No



C: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



Dimensions (Unit:mm)
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
97mm High Air Flow Fan 4500 RPM / 12V DC Centrifugal Blower Fan 3.8 Inch
