80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
Specifications
Brand Name :
MX
Model Number :
MX8025ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Product Name :
80mm Black 110V - 120V AC Brushless Fan
Voltage :
110V-120V / 220V-240V
Frequency :
50/60hz
Power Consumption :
11/18W
Air Flow :
22/29CFM
Speed :
2400/2900RPM
Weight :
230g
Description

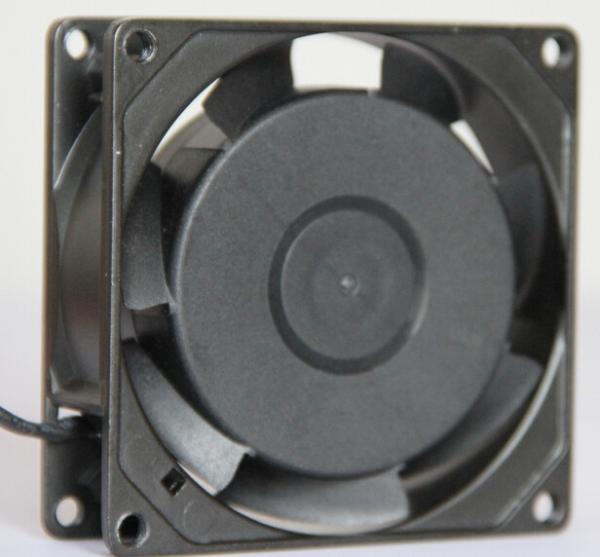

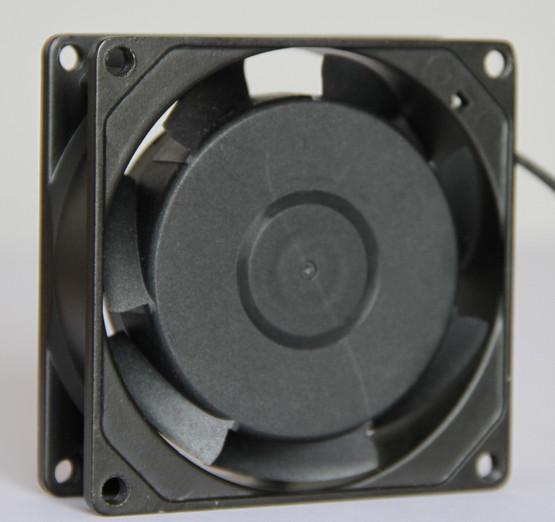

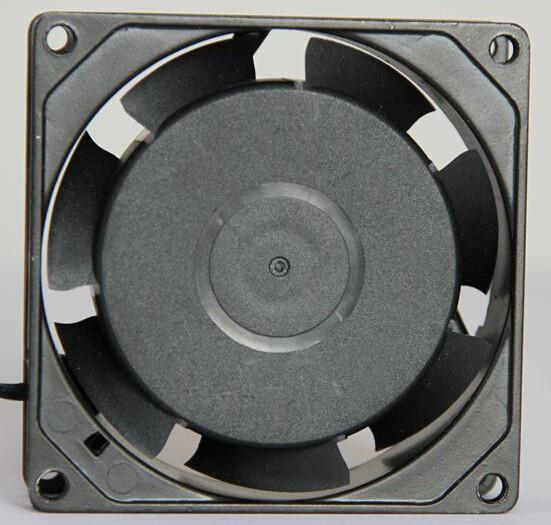

80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network


80 ×80 ×25mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Description:

  • 110V-120V 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Specification:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min dB-A g
MX8025ABH11 B 110/120 50/60 0.14/0.12 11 2400/2900 22/29 0.45/0.53 24/29 230
MX8025ABH22 B 220/240 50/60 0.09/0.05 18 2400/2900 22/29 0.45/0.53 24/29 230



Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0



Dimension:
80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network80mm Black Portable AC Brushless Fan Motor 3.1 Inch For Cooling And Network
