24V Ventilation 11 inch DC Axial Fan / 24V Duct Cooling Fan 280mm x 280mm x 80mm
24V Ventilation 11 inch DC Axial Fan / 24V Duct Cooling Fan 280mm x 280mm x 80mm
Specifications
Brand Name :
MX
Model Number :
MX28080ABM2
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD 2.5 - USD 4.5 or Negotiable
Payment Terms :
T/T
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX28080A Series
Voltage :
24 - 48 V (Customizable)
Frame & Impeller :
Metal
Motor :
6Poles Brushless DC Motor
Description

24V DC 280mm x 280mm x 80mm Ventilation Fan / 11inch DC Axial Fan / 24V Duct Cooling Fan


1 . Description :

  • 24V DC 280 x 280 x 80mm Ventilation Fan , DC Burshless Fan , DC Industrial Fan , DC Axial Fan , DC Cooling Fan , Duct Fan .
  • It's a new special mini fan for equipment of confined space .

2 . Allowable Ambient Temperature Range :

  • Operating Temperature : -10℃~+70℃
  • Storage Temperature : -40℃~+70℃
  • Non Condensing Environment

3 . Specification :

Size(mm) Model Rated Voltage Current Amp Speed Max Air Flow

Max Static

Pressure

 Noise Level
(v) (Amp) (rpm) (CFM) (Inch-H2O) (dB-A)
280*280*80mm MX28080ABM2 24 5.2 2750 1130 22.44 70
MX28080ABM4 48 2.6 2750 1130 22.44 70

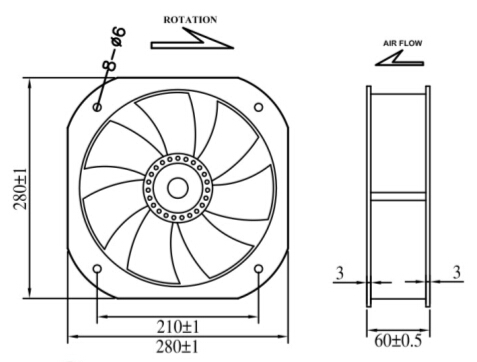

4 . Dimensions :

24V Ventilation 11 inch DC Axial Fan / 24V Duct Cooling Fan 280mm x 280mm x 80mm
