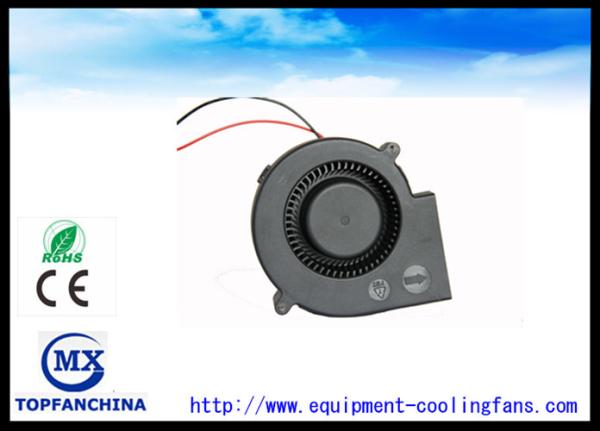

12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
Specifications
Brand Name :
MX / ODM / OEM
Model Number :
MX9733GBH1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD 2.5 - USD 4.5 or Negotiable
Payment Terms :
T/T
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX9733G Series
Voltage :
12 - 24 V ( Customizable )
Power Consumption :
4.8 - 16.8 W ( Customizable )
Air Flow :
19.71 - 29.76 CFM ( Customizable )
Speed :
3000 - 4500 RPM ( Customizable )
Bearing Type :
Ball Bearing / Sleeve Bearing
Description

12V DC 97mm x 94mm x 33mm Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan

Rechargeable 5V Mini DC Axial Fan , Glasses Tiny Cooling Fan For Equipment


1 . Description :

  • 20*20*10mm Mini Fan , DC Burshless Fan , DC Axial Fan , Computer Fan , DC Cooling Fan .
  • It's a new special mini fan for equipment of confined space .

2 . Material :

  • Frame : Plastic ( UL94V-0 )
  • Impeller : Plastic ( UL94V-0 )
  • Leadwire : UL1007 AWG#26 or Equivalent ( + ) : Red ( - ) : Black

3 . Protection :

  • Motor : Impedance Protected and Reverse Polarity Protected

4 . Expected Life :

  • Ball bearing : 50 , 000 hours ( 40℃ )
  • Sleeve Bearing : 30 , 000 hours ( 40℃ )

5 . Allowable Ambient Temperature Range :

  • Operating Temperature : -10℃~+70℃
  • Storage Temperature : -40℃~+70℃
  • Non Condensing Environment

6 . Insulation Resistance :

  • Not less than 10M ohm between housing and positive end of lead wire ( red ) at 500V DC .

7 . Dielectric Strength :

  • No damage should at 500 VAC for 60 second , measured with 5mA trip current between
    housing and positive end of lead wire .

8 . Locked Rotor Protection :

  • No damage shall be found after 72 hours continuously at condition of rotation locked ,
    Restarting is automatic as soon as constraint to running has been released

9 . Polarity Protection :

  • No damage shall be found with reverse connection 5 minute at rated voltage . After returning
    to normal polarity , all function shall be normal

10 . Specification :

Model Rated Voltage

Operating

Voltage

Range

 Current Amp

Rated Input

Power

 Speed Max Air Flow

Max Static

Pressure

Noise

Level

 Weight
( v ) ( v ) ( Amp) ( Watt ) ( rpm ) ( CFM ) (Inch-H2O) (dB-A) (g)
MX9733GB(S)U1 12 7.0 to 13.8 1.40 16.80 4500 29.76 1.35 57 164
MX9733GB(S)H1 12 7.0 to 13.8 1.00 12.00 4000 26.62 1.15 53 164
MX9733GB(S)M1 12 7.0 to 13.8 0.60 7.20 3500 23.34 0.83 49 164
MX9733GB(S)L1 12 7.0 to 13.8 0.40 4.80 3000 19.71 0.53 45 164
MX9733GB(S)U2 24 14.0 to 27.6 1.40 16.80 4500 29.76 1.35 57 164
MX9733GB(S)H2 24 14.0 to 27.6 1.00 12.00 4000 26.62 1.15 53 164
MX9733GB(S)M2 24 14.0 to 27.6 0.60 7.20 3500 23.34 0.83 49 164
MX9733GB(S)L2 24 14.0 to 27.6 0.40 4.80 3000 19.71 0.53 45 164

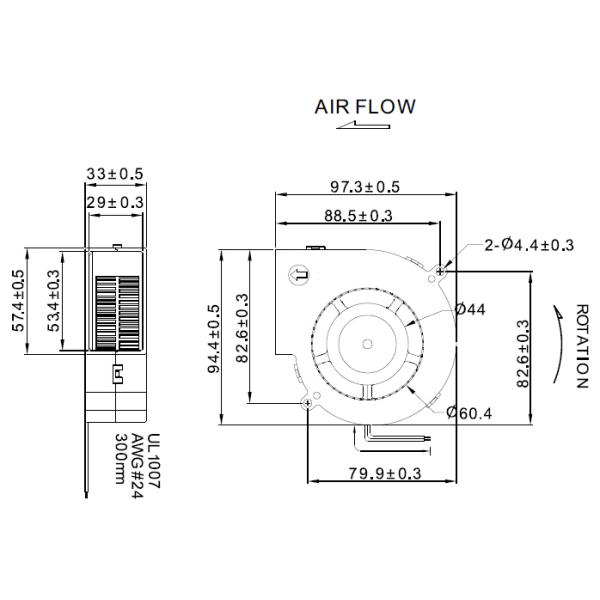

11 . Dimensions12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan

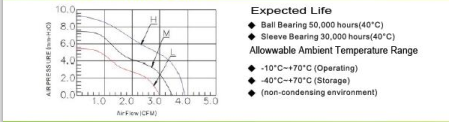

12 . Performance curve

12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan
