San Ace 17500RPM DC Axial Fans For HVAC Systems
San Ace 17500RPM DC Axial Fans For HVAC Systems
San Ace 17500RPM DC Axial Fans For HVAC Systems
San Ace 17500RPM DC Axial Fans For HVAC Systems
Specifications
Brand Name :
San Ace/MX/ODM/OEM
Model Number :
9GA0612P1J03
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$4.00/pcs to us$5.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
12V/24V
Material :
Plastic
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Speed :
17500rpm
Max air Flow :
62CFM
Description

60x60x38 San Ace high speed dc fan with PWM and FG, Sanyo motor cooling fan 12V 24V DC

60x60x38mm DC Fan, low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

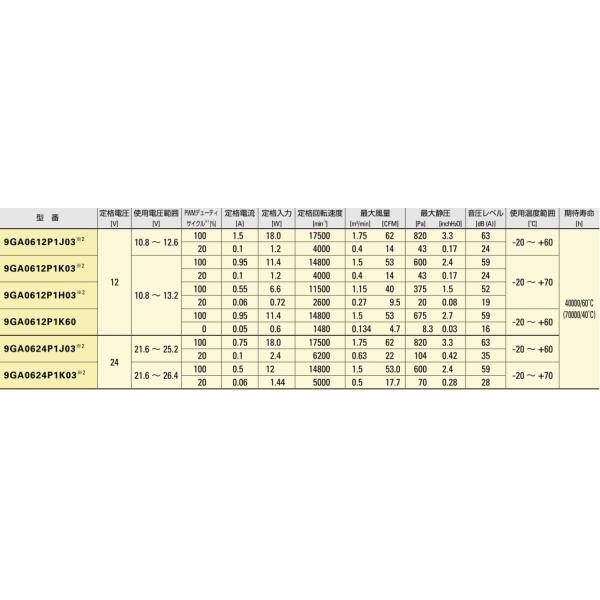

A. General Specifications:

San Ace 17500RPM DC Axial Fans For HVAC Systems

B. Main Materials, Parts Specification:

1. Bearing: Ball Bearing

2. Frame: PBT of UL94V-0.

3. Impeller: PBT of UL94V-0.

4. Lead Wire:Red(+),Black(-).

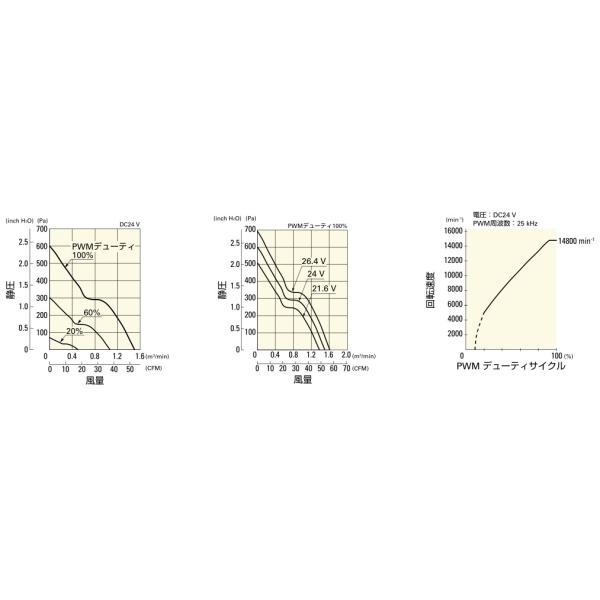

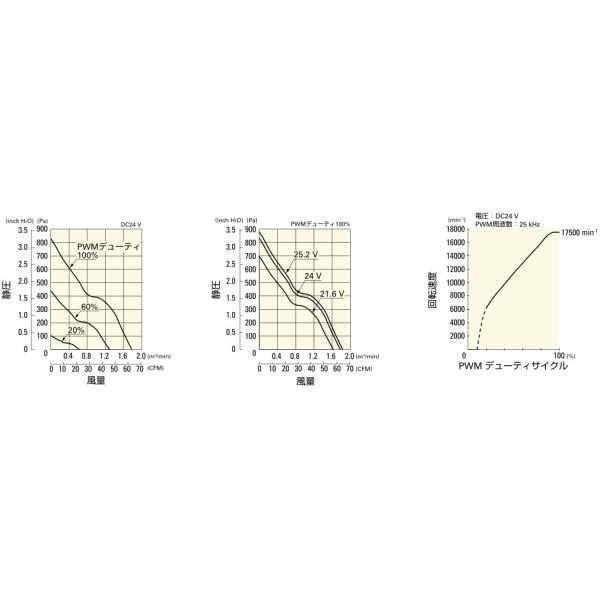

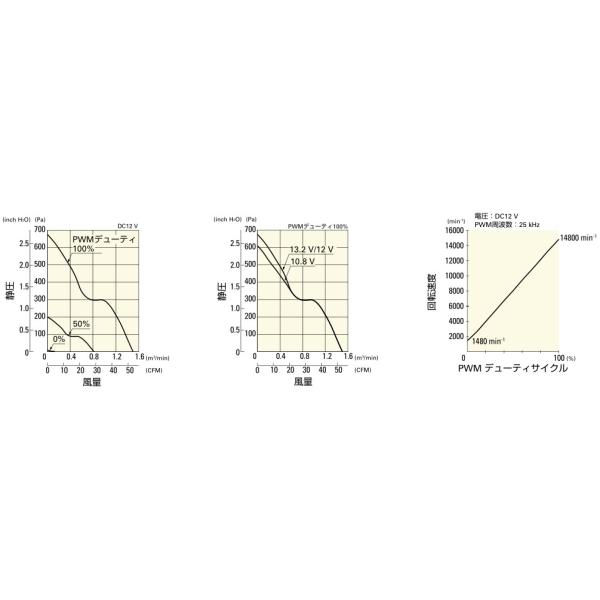

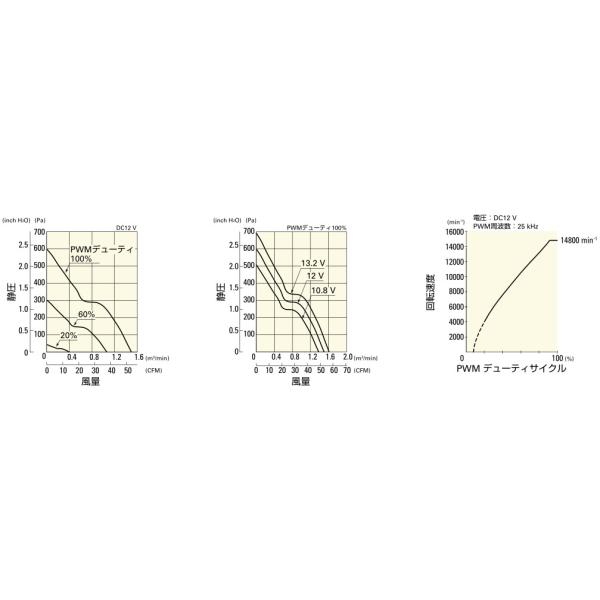

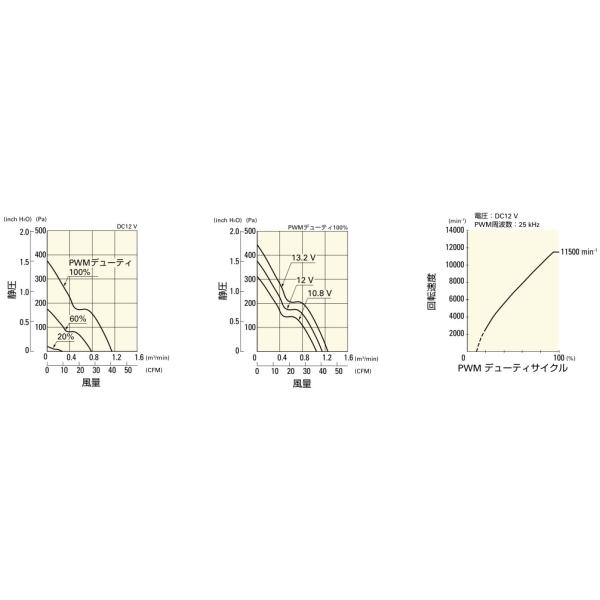

C:Fan performance Curve:

9GA0612P1J03

San Ace 17500RPM DC Axial Fans For HVAC Systems

9GA0612P1K03

San Ace 17500RPM DC Axial Fans For HVAC Systems

9GA0612P1H03

San Ace 17500RPM DC Axial Fans For HVAC Systems

9GA0612P1K60

San Ace 17500RPM DC Axial Fans For HVAC Systems

9GA0624P1J03

San Ace 17500RPM DC Axial Fans For HVAC Systems

9GA0624P1K03

San Ace 17500RPM DC Axial Fans For HVAC Systems

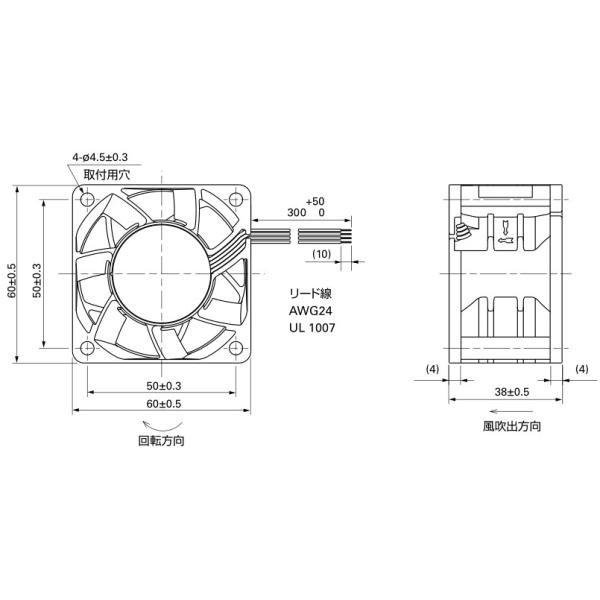

D: Dimensions (Unit:mm)

San Ace 17500RPM DC Axial Fans For HVAC Systems

Packaging & Shipping

You can choose the shipping way by yourself .

You can choose the freight forward company by yourself .

We can arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1.Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Our Services

1.We are professtional and experienced manufature of Axial Fan in China.

2.Customization, the size and functions of fan manufacture according to your demands.

3.We’ll reply you in 24 hours after you send inquiry to us.

4.We holding the principle of good faith to manage our company for 25 years.

If you want another rpm or voltage or other reqirement , pls contact me for more details , thanks!

For Special Cooling Fan , Such as : moistureproof , waterprrof , turbocharger , soft start , Reversible , temperature control , PWM speed control , the RD alarm and the FG signal etc , pls contact me free .


Any more information , please feel free to contact Helen
Skype : helen860615
Tel : 86 755 26070926
Cell Phone: 0086-15818540201
We will reply you within 2 hours. Thanks
