PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans
Specifications
Brand Name :
SUNON /MX/OEM
Model Number :
PF60381BX
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
5V/12V/24V
Material :
Plastic
Impeller :
Plastic
Bearing type :
Ball Bearing
Speed :
16500RPM
Max air Flow :
75.2CFM
Description

SUNON PF60381BX High Airflow Ventilation Fan / PF60381B1 12V DC Motor fan 60 x 60 x 38

SUNON 60 x 60 x 38 mm High Speed Air Flow Axial Fan With waterproof IP68, low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

Detailed Product Description:

• Frame and Impeller: Frame: Thermoplastic PBT of UL 94V-0, Impeller: Thermoplastic PBT of UL 94V-1.
• Expected life : See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60ºC, rated voltage).
• Motor protection function : Locked rotor burnout protection, Reverse polarity protection.
• Direction of rotation: Counter-clockwise viewed from front of fan blade
• Operating temperature range: -10 to +70ºC (Non-condensing).
• Storage temperature : -40 to +70ºC (Non-condensing).
• Lead wire : Red Black or Blue Sensor Yellow.
• Mass : 127g

Specifcations:

ITEM Specification Condition
01 Part No. PF60381BX
02 Dimension 60×60×38mm
03 Rated Voltage 12VDC
04 Start-up Voltage DC ≤6V on/off
05 Operating Voltage DC 10.2-13.2V a. Rated Voltage
06 Rated Speed 16500 RPM ±10% b. 25℃
07 Rated Current 2500mA ±10% c. 65% RH
08 Rated Power 30W d. Measured after 5 Mins
09 Max Airflow 75.2CFM/MIN.65.3CFM

a. PQ Measurement Apparatus : (LW9266-SR)

b. Standard : AMCA

c. Rated Voltage

d. Rated Current
10 Max Static Pressure 3.28inch-H2O/MIN 2.48inch-H2O
11 Life Expectancy 70000hrs at 40℃

a.L10 at Conf. Level 90%

b. Rated Voltage
12 Noise Level 67.6dB ±10%

a. Rated Voltage

b. Non-Echo Chamber

d. Distance: 1.0M
13 protection

Automatic Restart

Polarity Protection

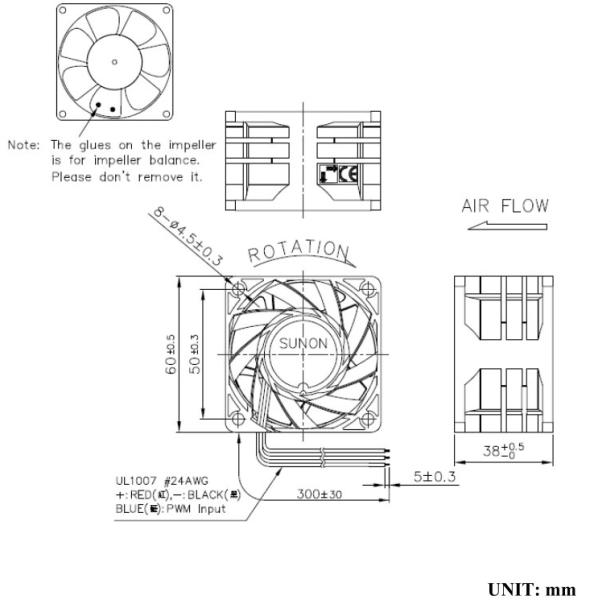

Dimensions (unit: mm)

PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans

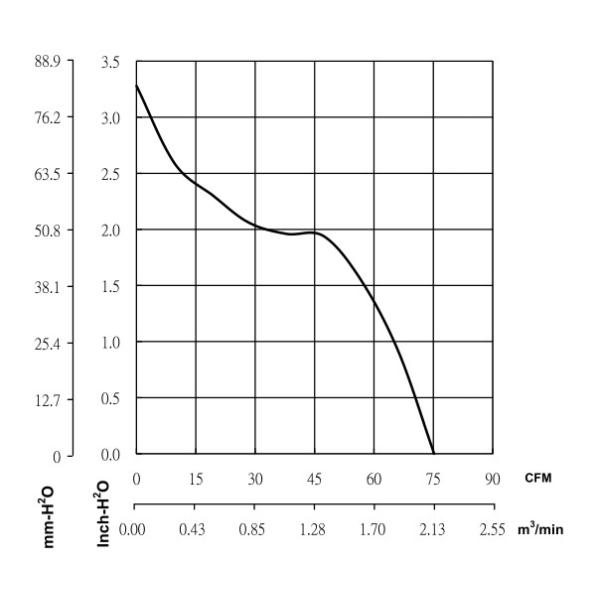

Static Pressure:

PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans

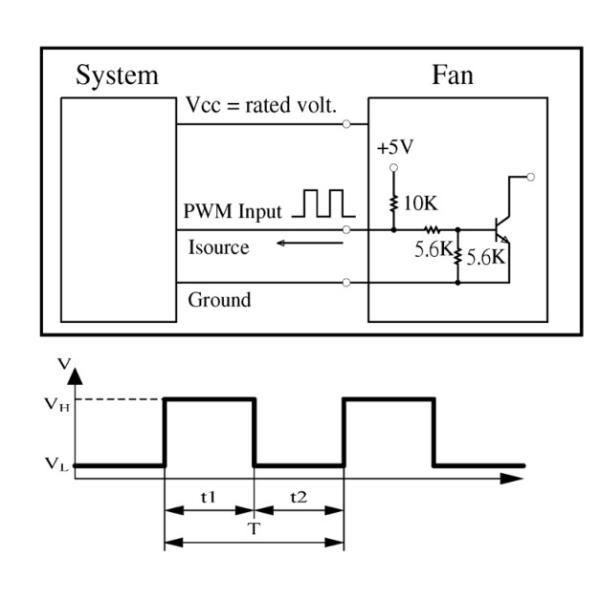

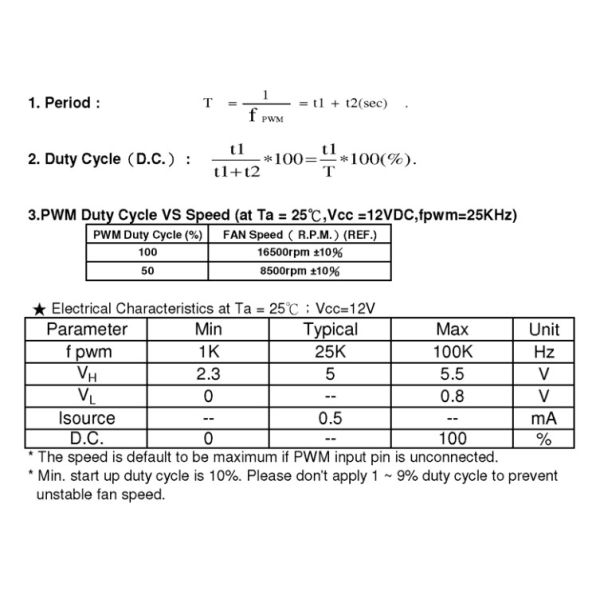

PWM input signal:

PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans

PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans

Packaging & Shipping

You can choose the shipping way by yourself .

You can choose the freight forward company by yourself .

We can arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Our Services

1.We are professtional and experienced manufature of Axial Fan in China.

2.Customization, the size and functions of fan manufacture according to your demands.

3.We’ll reply you in 24 hours after you send inquiry to us.

4.We holding the principle of good faith to manage our company for 25 years.

Company Information

Shenzhen Top Technology Development Co., Ltd. (Topfanchina) is a professional production of DC fans and AC fans of high-tech enterprises.
(Topfan) has a strong technical force, with professional R & D team, sophisticated testing equipment, advanced production lines, scientific production management and rich R & D custom experience, developed a variety of low noise, strong air volume, high performance and long Life products.

PF60381BX PF60381B1 75.2CFM Industrial Ventilation Fans

FAQ

◊ If you want another rpm or voltage or other reqirement , pls contact me for more details , thanks!
◊ For Special Cooling Fan , Such as : moistureproof , waterprrof , turbocharger , soft start , Reversible , temperature control , PWM speed control , the RD alarm and the FG signal etc , pls contact me free .

Any more information , please feel free to contact Helen ——→

We will reply you within 2 hours . Thanks

ATTN : Miss Helen

Tel : 0086-755-26070926

Mobile / wechat :+86-15818540201

Skype : helen860615

QQ : 304994675
