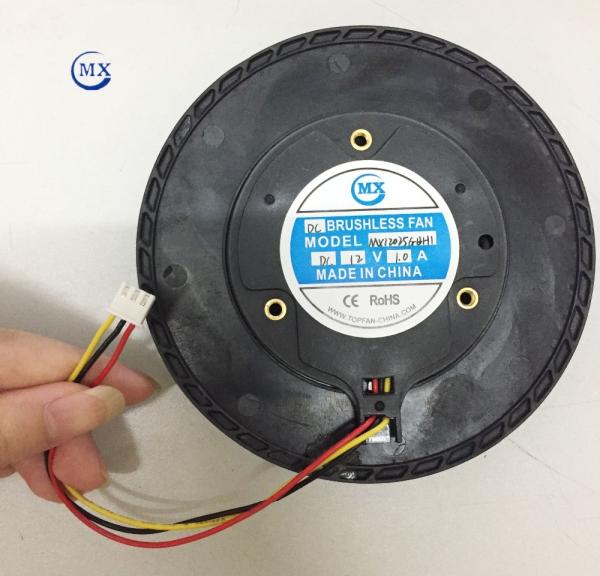

Ball Bearing Centrifugal Air Blower Fan For Air Purifier Black Color 3000rpm Speed
Ball Bearing Centrifugal Air Blower Fan For Air Purifier Black Color 3000rpm Speed
Specifications
Brand Name :
MX/OEM/ODM
Model Number :
MX12025GBL1
Certification :
CE/ROHS
Place of Origin :
CHINA
MOQ :
500/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
60000pcs/week
Delivery Time :
7-14 working days
Packaging Details :
CARTON
Color :
black
Bearing Type :
Ball Bearing
Expected life :
<80000 hours
Frame and impeller :
plastic
Application :
air purifier
Product name :
blowers fans
Speed :
3000RPM
Funcation :
RD,FG,PWM
Description

120mm * 25mm air blowers fans with PWM FG 12 volt 24v dc motor centrifugal fan for air purifier

♦ If you are interested in this fan, you can click on the picture to purchase

Item Specification/Condition
1 Mode1 No.

MX12025GBH1
2 Outline. Dimension

120*25mm
3 Operating Voltage DC 12V
4 Rated .voltage DC 12V
5 Starting Voltage DC ≤7.0V on/off
6 Rated current 1.9A(MAX1.9A)

a. (Rated .voltage)

b.25℃ 65% RH

c.After testing for 5 minutes
7 Power consumption 21.6W(MAX0.48W)
8 Speed 4800±10%RPM
9 Max Airflow 120CFM

a. Rated .voltage)

b. AMCA(Standard)

C. Rated current
Air .Static Pressure 50mmH2O

10

 Noise Level

52.25dB

a. Rated Voltage

b. Non-Echo Chamber

c. Standard:CNS 8753 / ISO 3744

d. Test Condition :ISO 7779

e. Distance: 1.0 M
11 Life expectancy 50000Hrs 25℃

MTTF (Mean Time To Failure)

Conf. Level 90%)
12 No.of.Blade round
13 No.of.Pole 4 pole
14 Rotating Direction Counterclockwise
15 Lock Protection YES
16 Polarity Protection YES
17 Overvoltage protection NO
18 Overcurrent protection NO
19

FG

 NO
20

PWM function

 YES

General specification

Dimensions

Specifications

Curve

>> If you want another rpm or voltage or special functionm please contact with us directly.

>> Products have a detail in the approval sheet.

>> Specifications are subject to change without notice

>> The size , voltage, power & speed can be made according to your requirements!

>> could be made with waterproof function

>> We're professional manufacturer of cooling fans & motors for 11 years' experience

>> On time delivery

Application

Topfan’s fan products are utilized by all type of machines which required heat reduction systems , such as UPS systems ; Telecommunication equipments ; Ventilating systems ; LED Digital signage ; Disports / exercise equipments ; Medical instruments .

Factory

Package

We offer 30 , 000 hours warranty for sleeve bearing fans , 50 , 000 hours

warranty for ball bearing fans .

We can also provide fans with longer use times

Any more information,pls feel free to contact Molly

Thanks very much!
