Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX12038ZBH1
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600, 000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
DC fan, cabinet cooling fans, Chassic fan
Rate Voltage :
12V, 24V, 48V DC
Speed :
3000 - 5000RPM
Bearing type :
Ball / Hydraulic bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Weight :
140g
Frame and impeller material :
Black Plastic (94V - 0),PBT
Size :
120 mm x 120 mm x 38 mm ( 12038 )
Description

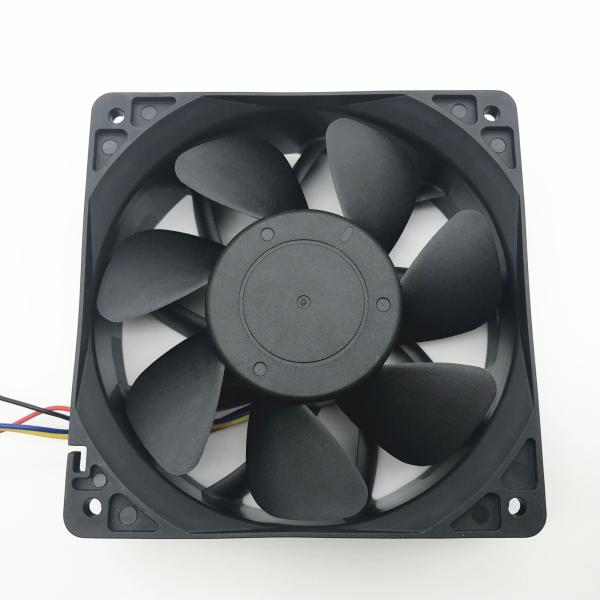

QFR1212GHE Delta fan 120 x 120 x 38 mm, winding machine motor parts cooling fan

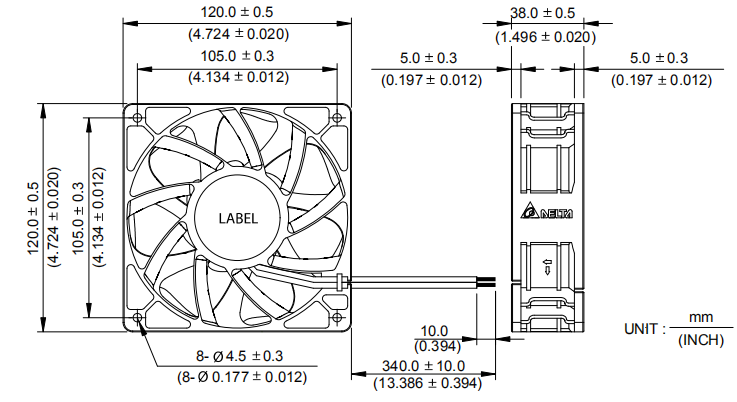

Size 120 x 120 x 38 mm
Bearing Type NMB Ball Bearing ( from Japan)
Mounting screw hole installation
Electric Current Type DC brushless , 12V 24V 48V voltagefor your choosing
Material ( Blade and Frame ) Plastic PET
Speed / Air flow rate / Air Pressure Customized as your requested
Motor Copper Motor (high quality)
Life expectance 50000 hours (Non-sustainable use, at 30℃)
Feature High quality, long life, muti-use, easy to install, high pressure
Additional features
Impedance protection, slow start, automatic restart, reversible fan, PWM speed control signal, FG speed display signal, RD alarm signal, waterproof, moistureproof, dustproof, high temperature resistant

Model Bearing
Type
Rated
Voltage
Operating
Voltage
Input
Current
Input
Power
Speed Max
Air Flow
Max
Static Pressure
Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12038ZBH1 B 12 7.0-13.8 2.50 30.00 4000 193.50 5.48 0.67 167.69 60.00 289.00
MX12038ZBM1 B 12 7.0-13.8 1.60 19.20 3500 173.33 4.91 0.54 134.35 55.00 289.00
MX12038ZBL1 B 12 7.0-13.8 1.00 12.00 3000 145.98 4.13 0.39 97.77 50.00 289.00
MX12038ZBU2 B 24 14.0-27.6 2.00 48.00 4500 222.31 6.30 0.86 215.26 64.00 289.00
MX12038ZBH2 B 24 14.0-27.6 1.00 24.00 4000 193.50 5.48 0.67 167.69 60.00 289.00
MX12038ZBM2 B 24 14.0-27.6 0.70 16.80 3500 173.33 4.91 0.54 134.35 55.00 289.00
MX12038ZBL2 B 24 14.0-27.6 0.50 12.00 3000 145.98 4.13 0.39 97.77 50.00 289.00
MX12038ZBU4 B 48 28.0-56.0 1.00 48.00 4500 222.31 6.30 0.86 215.26 64.00 289.00
MX12038ZBH4 B 48 28.0-56.0 0.60 28.80 4000 193.50 5.48 0.67 167.69 60.00 289.00
MX12038ZBM4 B 48 28.0-56.0 0.50 24.00 3500 173.33 4.91 0.54 134.35 55.00 289.00
MX12038ZBL4 B 48 28.0-56.0 0.40 19.20 3000 145.98 4.13 0.39 97.77 50.00 289.00

QFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g Weight

Company Information

QFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g Weight

Shenzhen Topfan-China Development Technology Co., Ltd, founded in 1996 in Shenzhen China, is a professional manufacturer on dc brushless fans and ac fans. Products are passed CE, RoHS, TUV, SGS certificated and good sellers both at home and abroad, including Europe, North America, Asia(Korea and India) etc. The products, mainly including axial fans, cross flow fans, blower fans, centrifugal fans, dc fan, AC fan and plastic / metal net etc, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others, we'll make our biggest efforts to do everything better for our customers.

QFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g Weight

QFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g Weight

Purchase process.

Determine the fan parameters——>Confirm the price of fan——>Determine the price of mode of transport——>Provide your shipping information——>Choose the payment way——>confirm the fan's parameters again——>I will make a PI for you——>you arrange payment——> I received the full-payment from you——>I arrange the production——>sample delivery time: 5 working days after receipt of full payment——>samples are done and arrange shipping——>The goods arrive at the destination——>Keep in touch and provide you with good after - sales service.

Certifications

QFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g Weight

Packaging & Shipping

About the shipping detial.


>> You could choose the shipping way by yourself.

>> You could choose the freight forward company by yourself.

>> We could arrange the shipment by your request.

>> If you have any requirements you could contact me soon.

>> Normally for small fan, the express is best choice (DHL, FEDEX, TNT)

About the payment detial.


Two ways that you could choose

By bank then the bank charge is about 30USD. ( normlly use in bulk orders)

By paypal then the paypal charge is 5% of total amount.( normlly use in sample orders)

Both payment methods are 100% T/T in advance.

About the Package detial.

QFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g WeightQFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g WeightQFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g WeightQFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g Weight

QFR1212GHE Small Cooling Fan Ball / Hydraulic Bearing High Pressure 140g Weight

Contact information

ATTN : krystal

Tel : 0086-755-26070926

Cell / skype / whatsapp : 0086-13128824029

E-mail : krystal @ topfanchina.cn

How to order


1. Please tell us the model, size and number you need
2. Make PI for you
3. Send you PI to confirm the order detail
4. Please make payment for your order
5. Arrange to produce your order
6. Ship out and offer the trach number
7 After-sale services and feedback
